Overview
The mechanics dream
Originally developed for BYD, the ONERugged M10A-VDS is a purpose-built rugged tablet designed for professional automotive diagnostics, servicing and vehicle maintenance. Combining powerful Intel® processing, a high-visibility display, specialised diagnostic connectivity and rugged durability, the M10A-VDS provides technicians with a dependable mobile platform for demanding workshop and field environments.
Available with Intel® Core™ i5 or i7 processors, the M10A-VDS delivers the processing performance required to run demanding automotive diagnostic software, access technical documentation, analyse vehicle data and communicate with modern vehicle systems.
The M10A-VDS features modular diagnostic ports, providing the flexibility required to connect to automotive diagnostic equipment and vehicle interfaces. This makes it an ideal platform for vehicle dealerships, automotive workshops, service technicians, fleet operators and specialist diagnostic applications.
12th Gen Intel Core
Powered by 12th Generation Intel® Core™ i5-1235U/i7-1255U Processor and Windows 11
Expandable Storage
Support 16GB RAM + 128GB SSD, the SSD is detachable, easy to expand by simplely pulled out and replaced

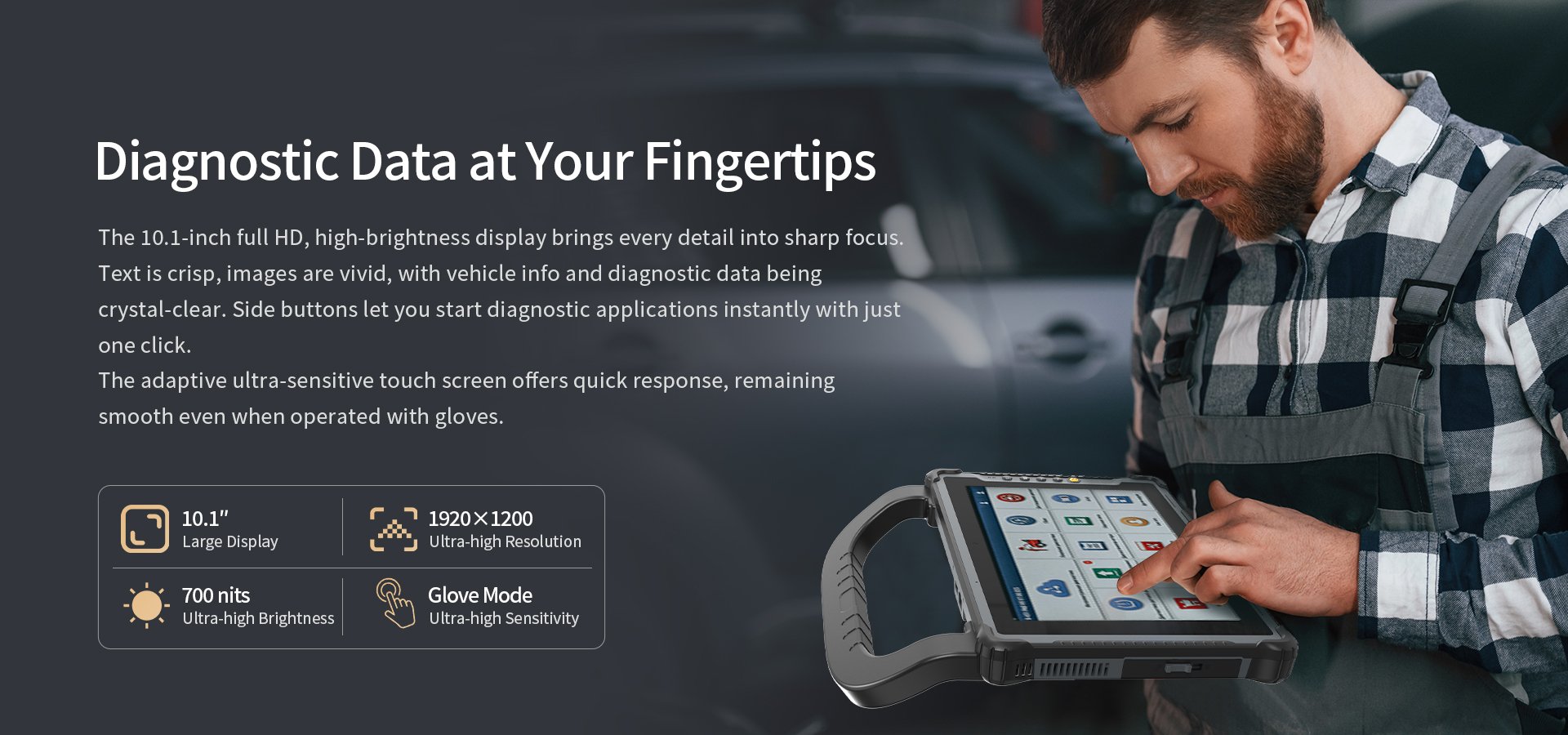

High-definition and High-brightness
10.1", FHD (1200x1920), 700 Nits 10-point capacitive touch screen, supports glove touch mode
WiFi 6 Technology
Supports the latest WiFi 6 technology, 4G and Bluetooth 5.1

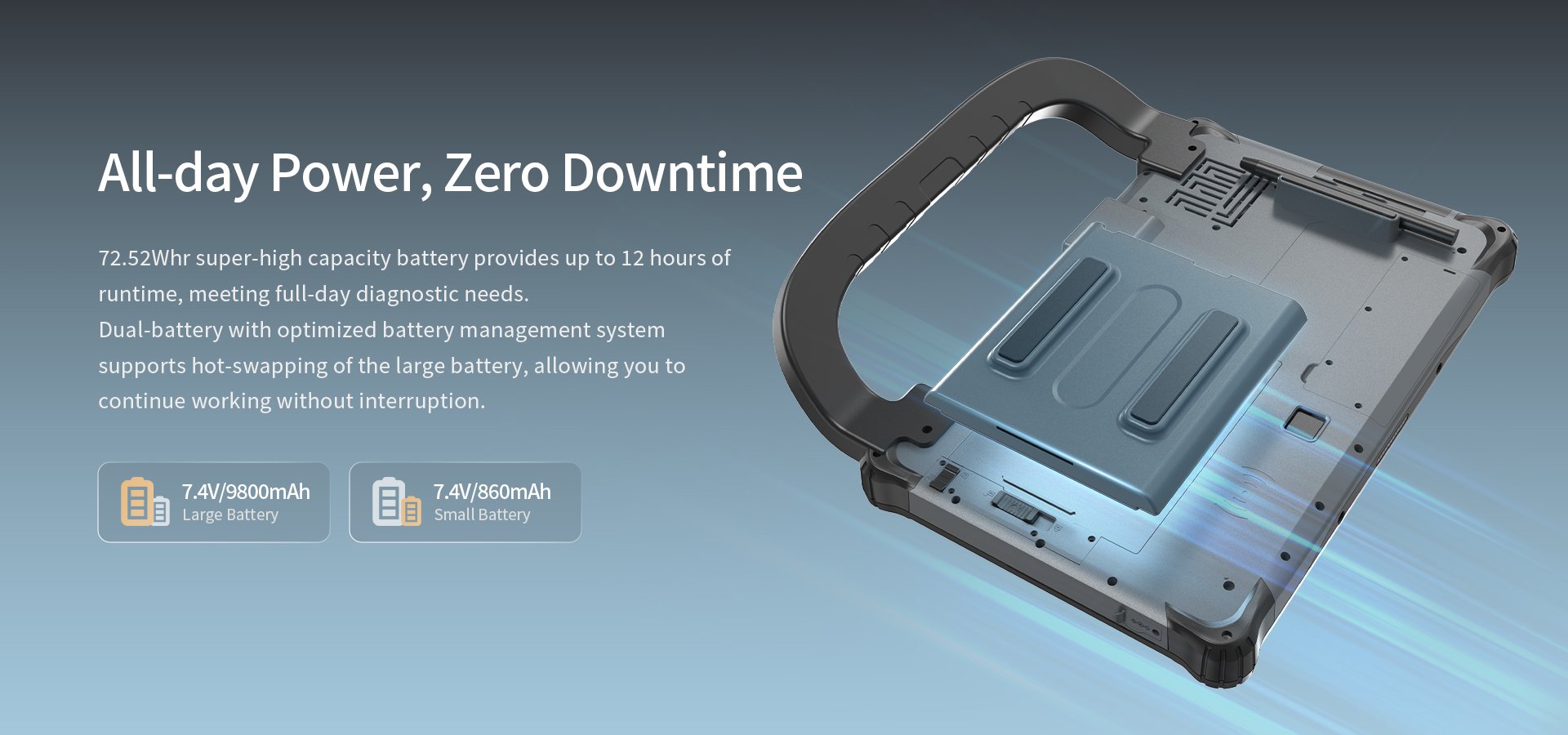

Long-lasting Endurance
Up to 12 hours of battery life with 72.52Wh of capacity
Full Types of Interfaces
Equipped with a full set of interfaces including full-featured Type-C, USB 3.0, Mini HDMI and more

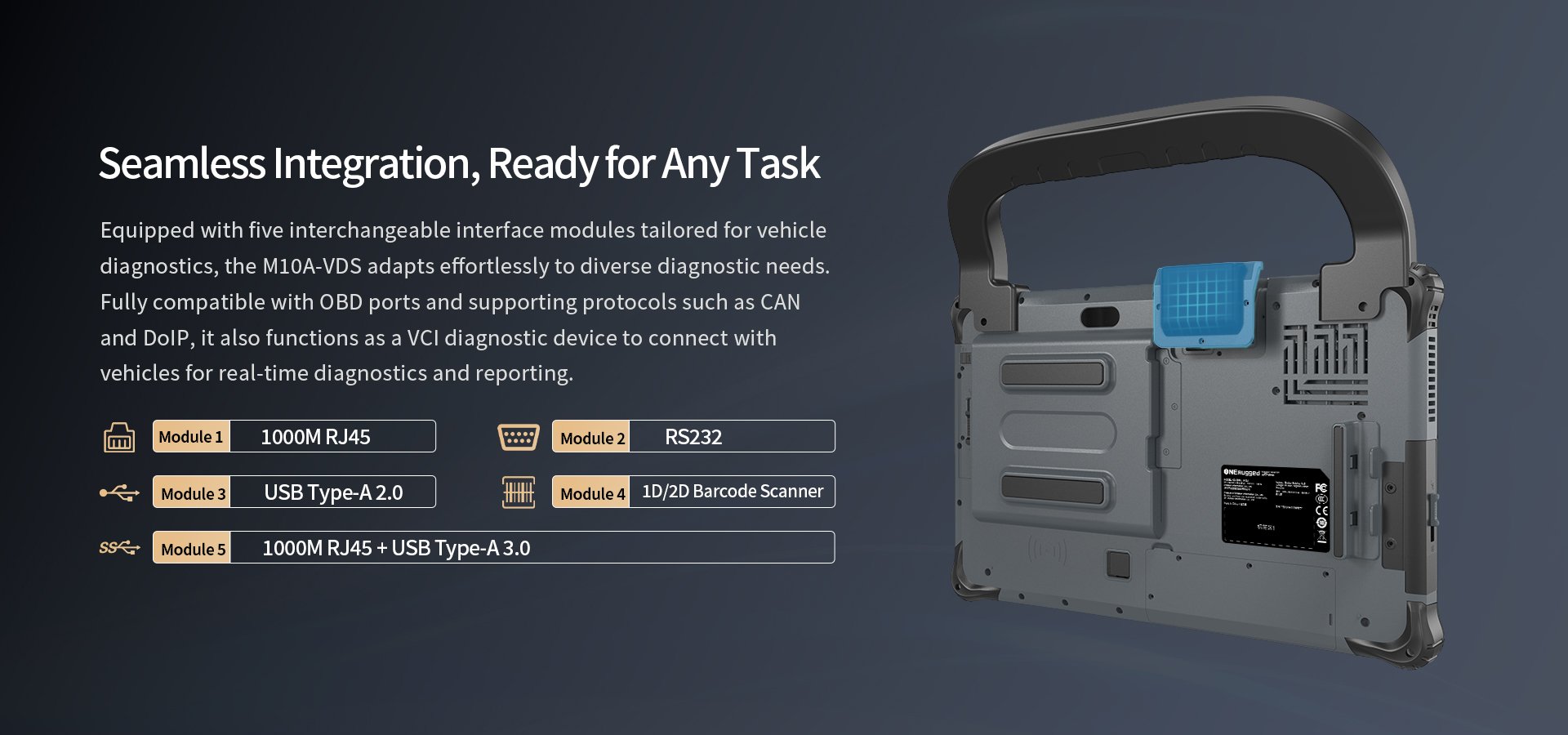

Expansion Modules
Choose one of four modules among wired network interface, USB 2.0, RS232 and 2D barcode module, choose as you like
Storage
128GB SSD, Optional 256GB/512GB/1TB PCIe SSD
292.1 mm(L) × 192.1 mm(W) × 27.5 mm(H)
About 1457g
Gray
10.1″, FHD (1200×1920), 700 nits
10-point capacitive touch screen, supports glove touch mode
SIM card + Micro SD card
USB3.1 (Type-A) x 1
USB3.0 (Type-C) x 1
3.5 mm audio jack x1
HDMI 2.1a mini x1
5.5 mm DC in jack x1
12pin POGOPin x1
Intel i5-1235U
· Optional Intel i7-1255U
· Windows 11 Pro
Optional Windows 11 Home/IOT
· 16GB LPDDR4 on board
ROM：128GB SSD
Optional 256GB SSD Optional 512GB SSD
100-240V, 50Hz-60Hz, 65W (19V/4.73A)
WIFI6
4G
· Bluetooth® V5.1

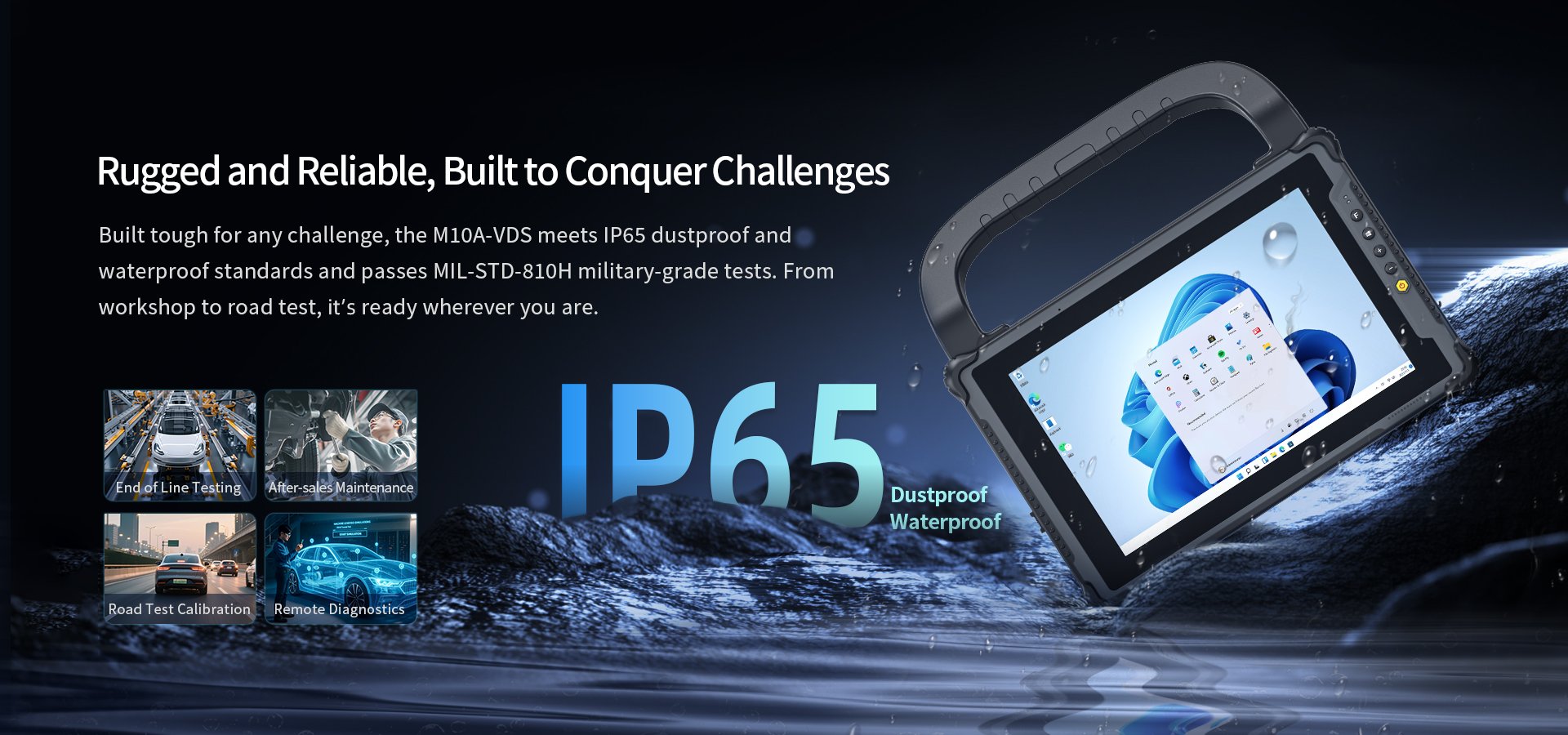

IP65
· MIL-STD 810H certified
· Operating temperature: -25°C to 60°C (-13°F to 140°F)
· Storage tmperature: -30°C to 70°C (-22°F~158°F)
· Humidity: 95% (Non-Condensing)
Adapter, Stylus, Carry Handle
