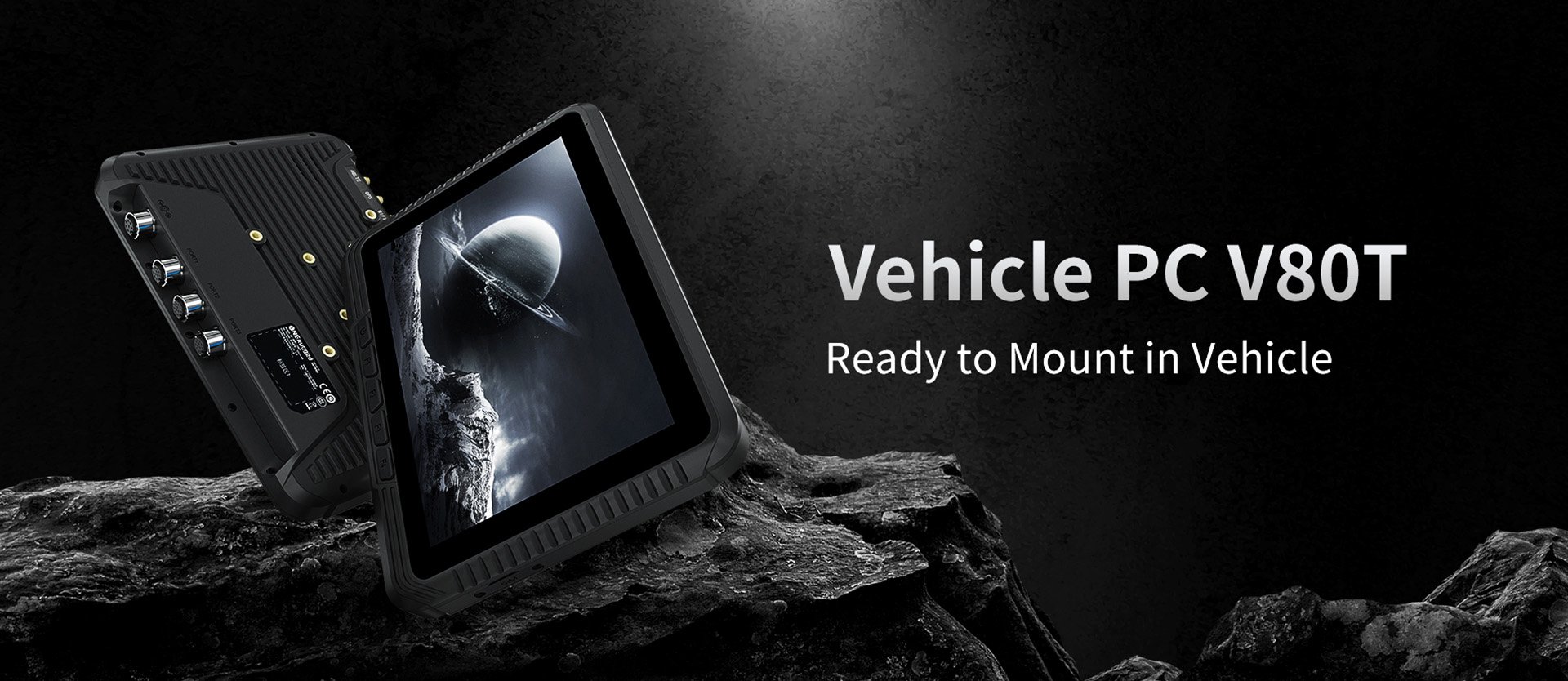

Overview

Ready to Mount in Vehicle



V80T is an 8-inch Android vehicle pc, which is specially designed for in-vehicle applications. Equipped with ARM octa-core processor and Android 12 operating system, it is more powerful, and its integrated Wi-Fi-5, 4G LTE and GPS functions support available vehicle mushroom antennas, the coverage area is larger and the signal reception is better. Moreover, it has passed the dustproof, waterproof, anti-vibration and wide temperature tests, and with the M12 aviation plugs, wide voltage module, VESA and RAM mounting methods, etc., it can keep stable at all times and can meet all vehicle types, like forklifts, cranes, trucks.

642fd65ab82c4

High-performance and Low-power

Equipped with high-performance ARM octa-core processor and Android 12 OS, up to 4GB+64GB capacity

642fd65f12359

Excellent Visibility

8-inch screen with 1000-Nits high brightness display, multiple-point touch panel and customized keys , ensuring outdoor worker visibility

642fd662c2fe9

Easy Connection

4G LTE, dual-band Wi-Fi, Bluetooth 5.0 and GPS/Glonass/Beidou functions, with available vehicle mushroom antenna

642fd66623735

Stable Power Supply

Aviation plug charging interface, switchable for cigarette lighter interface or Φ5.5 power port, and a 9V-36V DC wide voltage module is optional

642fd66b123e6

Battery-free Mode

Supports the battery-free mode, another optional 7.4V/1000mAh capacity battery

642fd66e6180e

Flexible Extension

Available multiple aviation plug interfaces, and also supports USB/DB9/LAN/CAN and other interface extensions

643a55c4bfbb1

Simple Installation

Two bracket mounting methods, VESA and RAM are suitable for almost any vehicle-mounted workplaces

64901674628a0

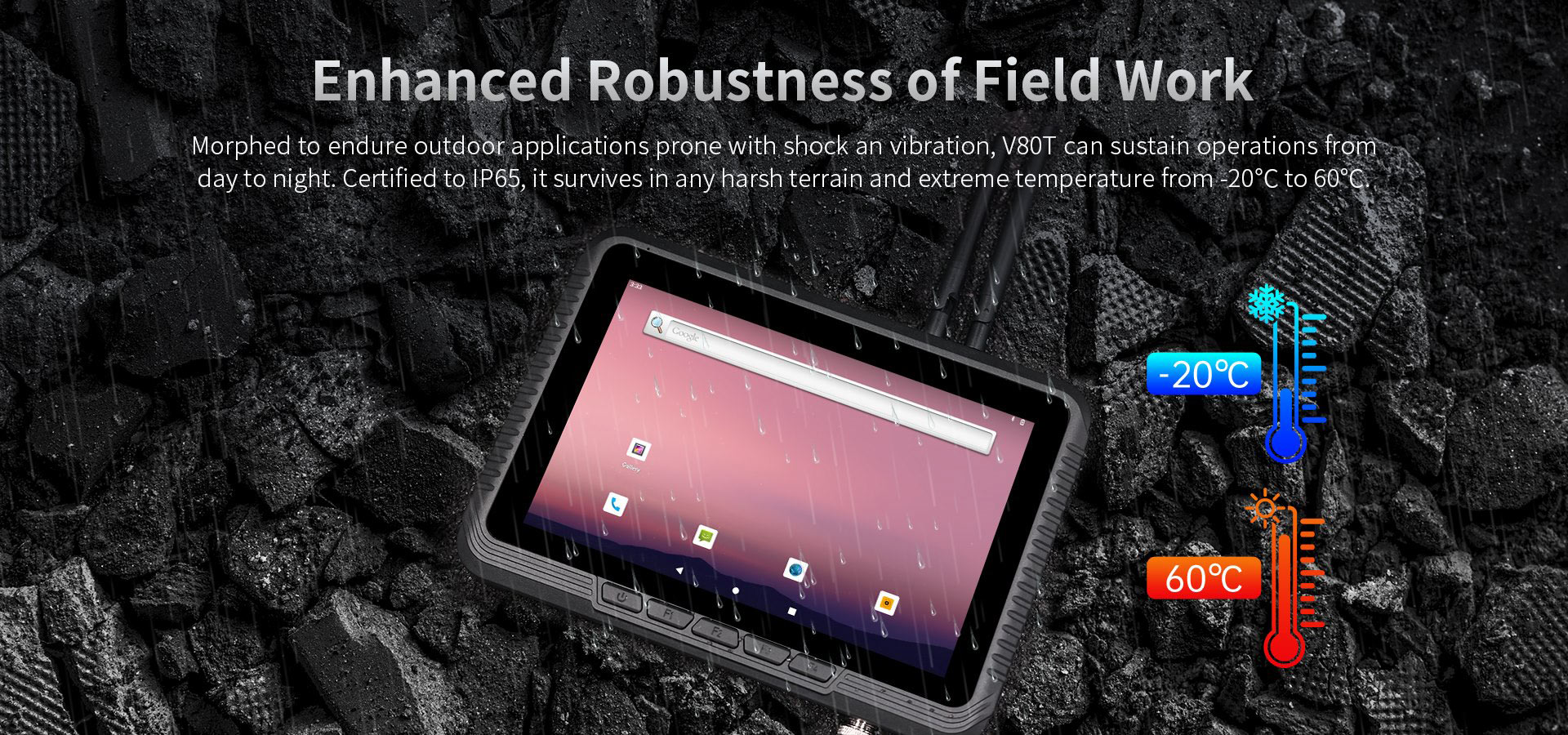

Enhanced Robustness

IP65 dustproof and waterproof, morphed to endure outdoor applications prone with shock, vibration and extreme temperature

646de9cacb0ee
Joel CV
646dd3216b593
646dd32c22686
646dd3372adb6
646dd34158330
646dd3e9611c8

Tech Specs

(*Please be aware all technical data, specification and performance figures subject to change without notice.)

Dimensions

218.1×154.5×23.0mm

Weight

620g

Product Color

Black

Display

Size: 8 inch 16:10, Resolution: 800*1280 IPS, Brightness: 1000cd/㎡

Touch Panel

5-point tempered glass capacitive screen G+G, hardness 7H

Ports

Optional: SIM card slot *1

USB 3.0 *1

M12-8 Power port *1 (Compatible: DC power port, suitable for cigarette lighter)

Optional: M12-12 Aviation port 1 *1 (Compatible: 1000M Ethernet port)

Optional: M12-12 Aviation port 2 *1 (Compatible: RS232 port or RS485 port)

Optional: M12-12 Aviation port 3 *1 (Compatible: USB 2.0 port or CAN port or CVBS port)

Processor

ARM Octa-Core Processor

Operating System

Android 12

Memory+Storage

RAM: 4GB (LPDDR4X)

ROM: 64GB (UFS)

Battery (optional)

Built in polymer lithiumion battery, 2000mAh/3.7V

RTC Battery

Built in RTC battery

Power

Power adapter cable (M12-8 power port to φ4.0 power port)

Optional: φ4.0 adapter (input AC 100V~240V 50Hz/60Hz, output DC 12V/4A)

WiFi

802.11 (a/b/g/n/ac), 2.4G+5.8G dual frequency

Standard WiFi rod antenna

WAN (optional)

4G

Optional 4G rod antenna

Bluetooth

Bluetooth 5.0

GNSS

GPS+GLONASS, optional Beidou

Standard GPS rod antenna

NFC (optional)

Support

IP Ratings

IP65

Temperature

Working temperature: -20 °C to 60 °C

Storage temperature: -30 °C to 70 °C

ESD Protection

±15kV air discharge

±8kV contact discharge

Standard

WIFI rod antenna

GPS rod antenna

Power adapter cable (M12-8 power port to φ5.5 power port, suitable for cigarette lighter)

Optional

4.0 power adapter

Power adapter cable (M12-8 power port to 4 loose wires)

9V-36V wide voltage module

VESA standard

RAM standard

Function adapter cable (M12-12 aviation port to USB 2.0 *1+CAN *1+USB 2.0/CVBS *1)

Function adapter cable (M12-12 aviation port to RS232 *1 + RS485 *1)

Function adapter cable (M12-12 aviation port to RS232 *2)

Function adapter cable (M12-12 aviation port to 100M RJ45 *1)

Function adapter cable (M12-12 aviation port to 12 loose wires)

GPS vehicle mushroom antenna
