Overview
Rugged AI PC
The M14M is designed to revolutionize mobile computing with the Intel® Core™ Ultra processor, featuring innovative triple AI engines (CPU, GPU, and NPU) for enhanced AI-powered performance. Equipped with 16GB memory and 256GB storage, along with dual slots for upgrades, it efficiently handles local AI applications and computational tasks. A 14-inch high-brightness HD screen ensures clarity in any environment, while the rugged design, including a rotating handle, meets IP65 and MIL-STD-810H standards for durability. The Thunderbolt 4 interface, along with additional ports, offers seamless connectivity. Its dual-battery system (53.58Wh + 14.4Wh) and advanced optimization provide extended operation for demanding workflows. The M14M is the perfect solution for global industries requiring high performance and resilience.
Al-Powered Performance
All-new Intel® Core™ Ultra processor Windows 11 OS Supports for computational needs
Innovative Triple Al Engines
The newly added NPU Dedicated AI acceleration engine Efficiently running local AI applications

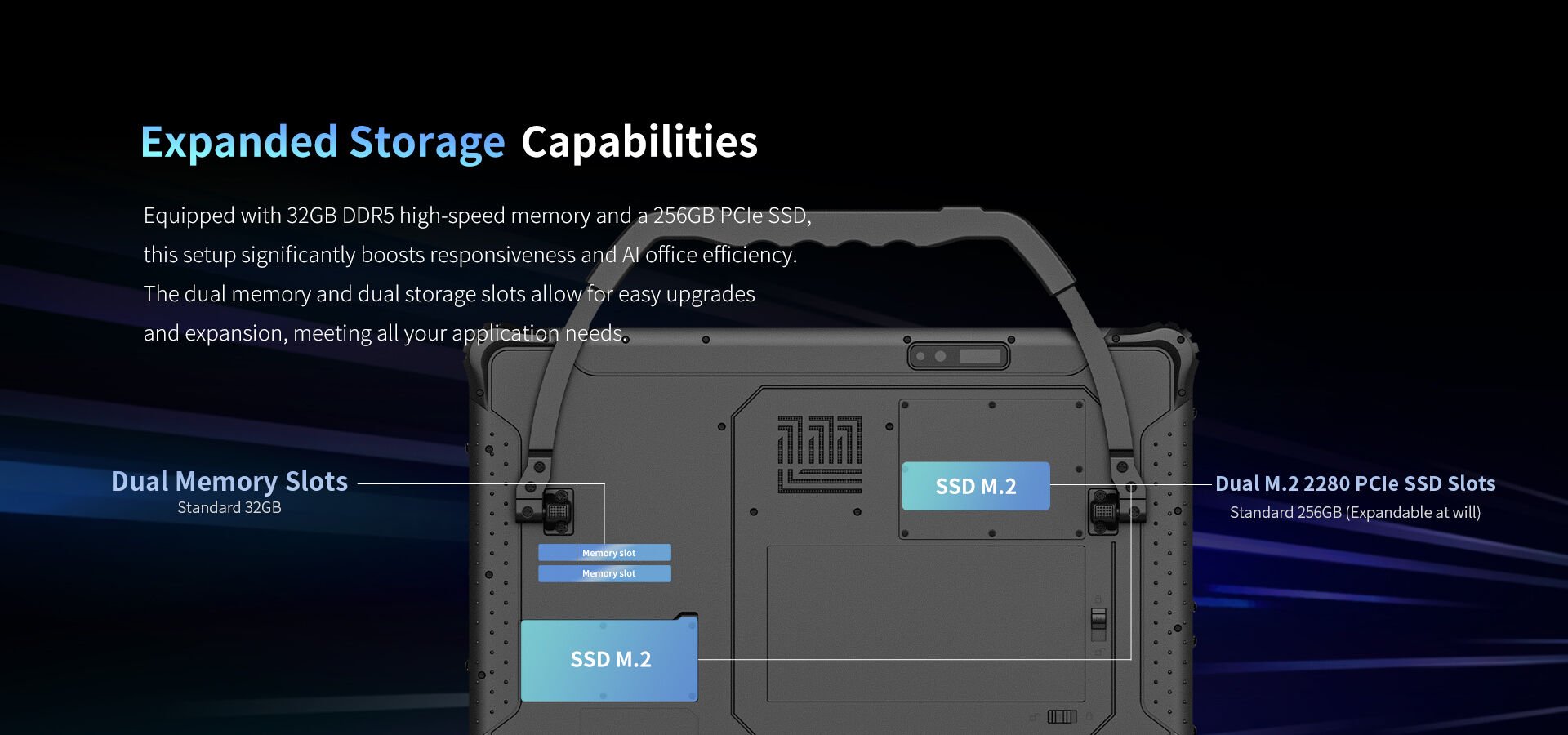

Expanded Storage Capabilities
Standard 32+256GB Dual memory and dual storage slots Allow for easy upgrades and expansion

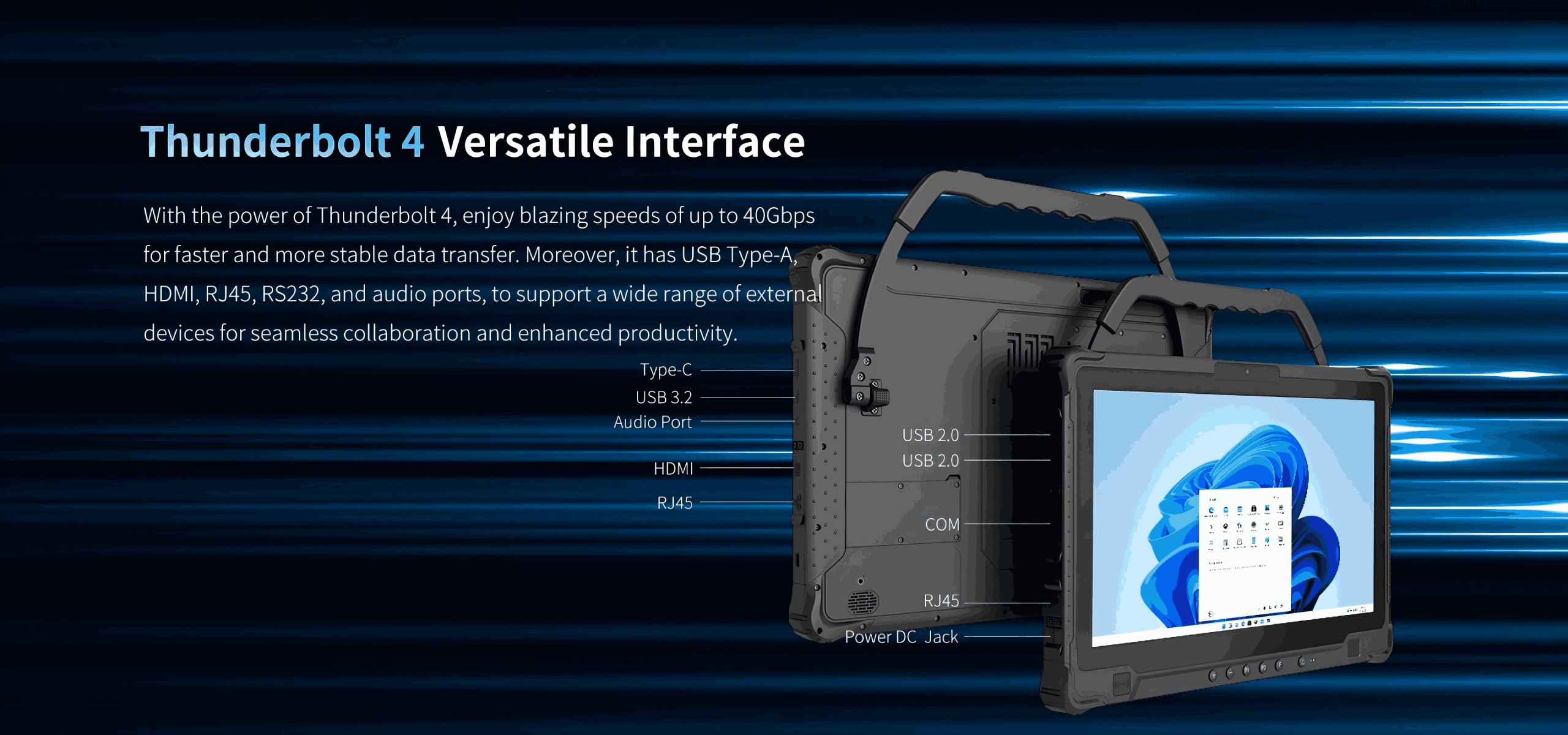

Thunderbolt 4 Versatile Interface
Thunderbolt 4 interface for stable transmission USB, HDMI, RJ45, RS232,etc. Support multiple external devices

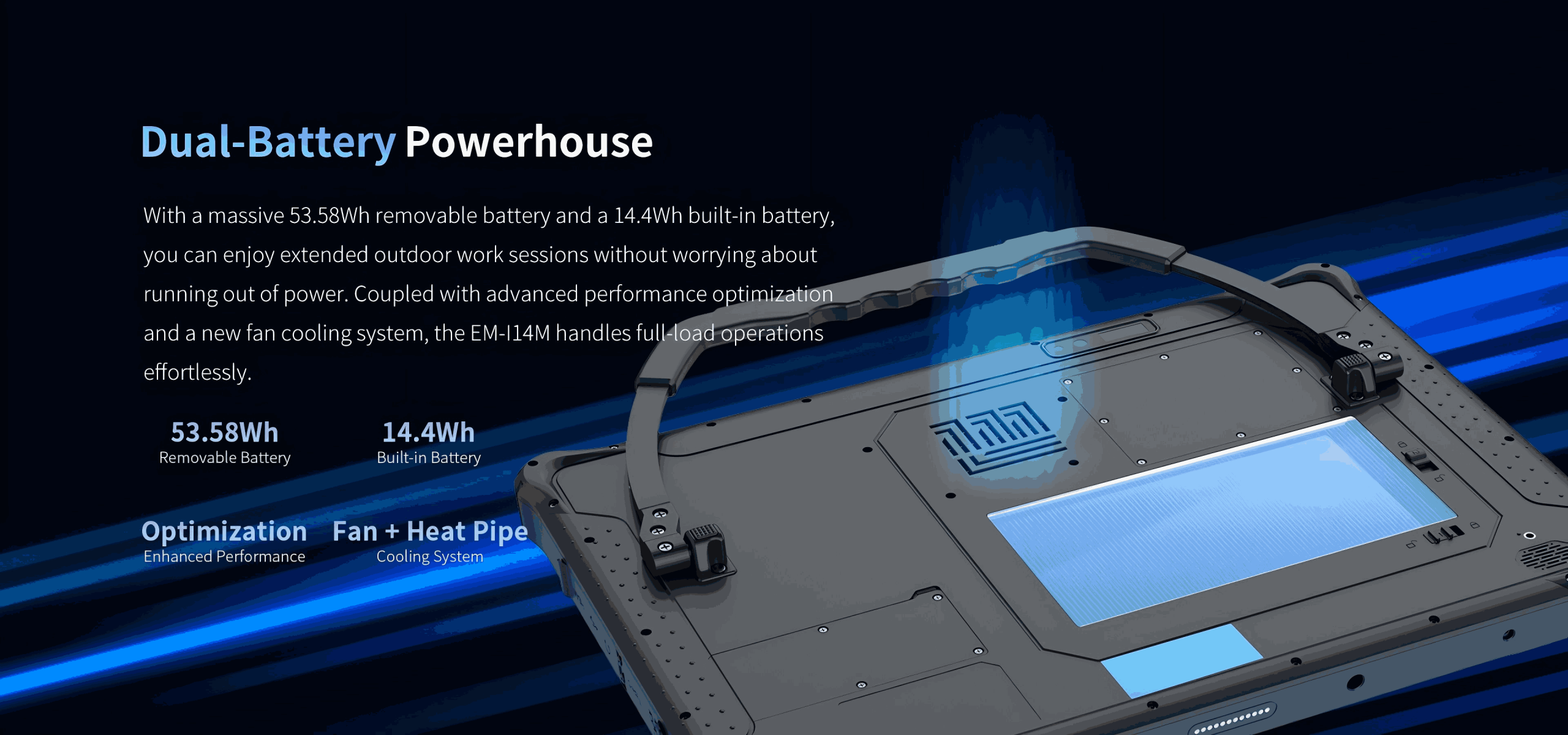

Dual-Battery Powerhouse
53.58Wh+14.4Wh dual battery with advanced performance optimization Handling full-load operations effortlessly
Tough and Portable by Design
The back features a rotating handle IP65 & MIL-STD-810H Certified
366.2mmx246.9mmx24.8mm
TBD
Black

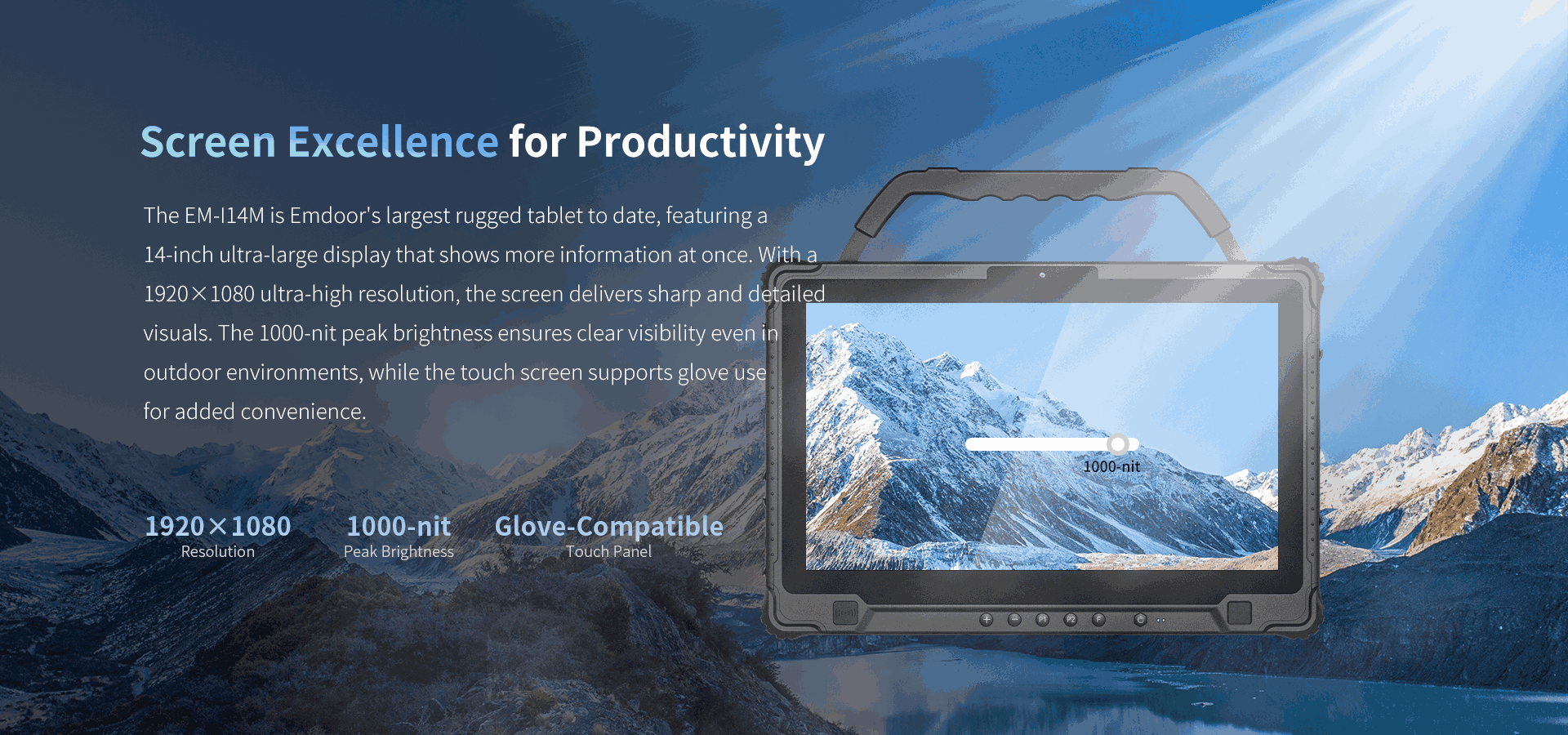

Size: 14-inch 16:9
Resolution: 1920*1080
Brightness: 1000cd/㎡
10-Point Capacitive Screen, G+G; Hardness above 7H; Scratch-resistant; Supports glove touch
USB3.2 *1，USB2.0 *2
TYPE-C
∮3.5mm Standard Earphone Jack *1
RJ45 *2 (10M/100M/1000M adaptive)
RS232 *2
HDMI *1
12PIN Pogo Pin
DC19V/3.78A ∮5.5mm power interface *1
Optional
Optional
Intel® Core™ Ultra
Windows 11 PRO
RAM：32GB
ROM：256GB SSD
AC100~240V, 19V/3.78A 71.82W output US Standard Optional: EU Standard
Front 5.0MP (USB)
Rear 13.0MP (mipi)
1300mah/11.1V (14.4WH)
4700mah/11.4V (53.58WH)
G-Sensor
Built in, used for power-on login.
WIFI6
4G
5G (optional)
BT5.1
Supports single GPS or single Glonass, default GPS
IP65
CE optional FCC,CCC
MIL-STD-810H
Battery: UN3803, MSDS, IEC62133, Aviation, Shipping Report
MIL-STD-810H: 1.22m drop resistance
Working temperature: -20 °C to 60 °C
Storage temperature: -30 °C to 70 °C
Electrostatic Discharge: ±4kV contact discharge, ±8kV air discharge
Humidity: 95% Non-Condensing
Handle
DC19V/3.78A adapter
Removable Battery
