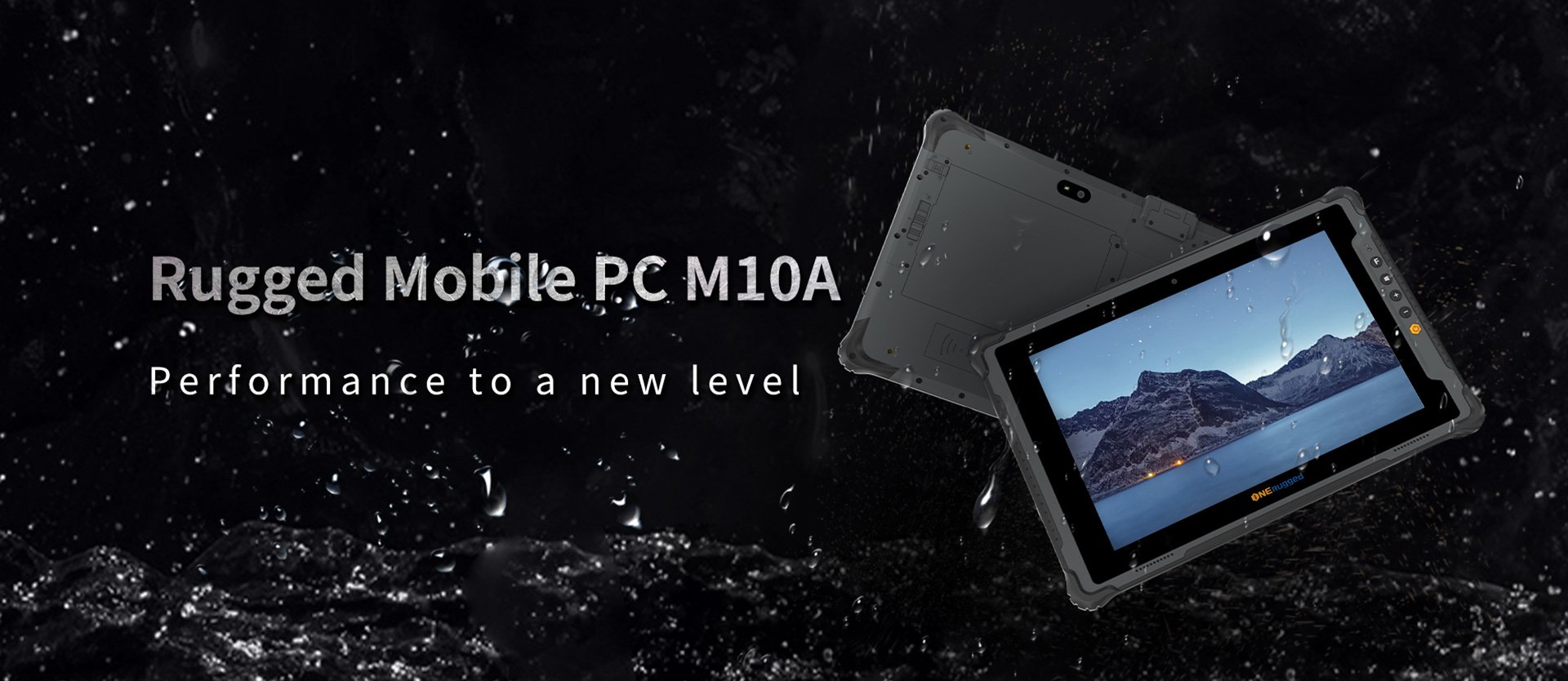

Overview

Performance to a new level

M10A is a 10.1-inch ultra-high-performance rugged mobile pc of ONERugged, equipped with the new 12th Generation Intel® Core™ i5-1235U/i7-1255U processor, which greatly improves the energy efficiency and performance per watt ratio. And there are also many other highlights such as high capacity memory and SSD, high-definition and high-brightness outdoor display, WiFi 6, 4G, Bluetooth 5.1, industrial NFC, dual batteries, full types of interfaces, expansion modules, which can bring more powerful productivity, easy to cope with a variety of high-performance and high-demand usage scenarios.

642fd65ab82c4

12th Gen Intel Core

Powered by 12th Generation Intel® Core™ i5-1235U/i7-1255U Processor and Windows 11

642fd65f12359

Expandable Storage

Support 16GB RAM + 128GB SSD, the SSD is detachable, easy to expand by simplely pulled out and replaced

642fd662c2fe9

High-definition and High-brightness

10.1-inch LCD screen with 700 nits high brightness

642fd66623735

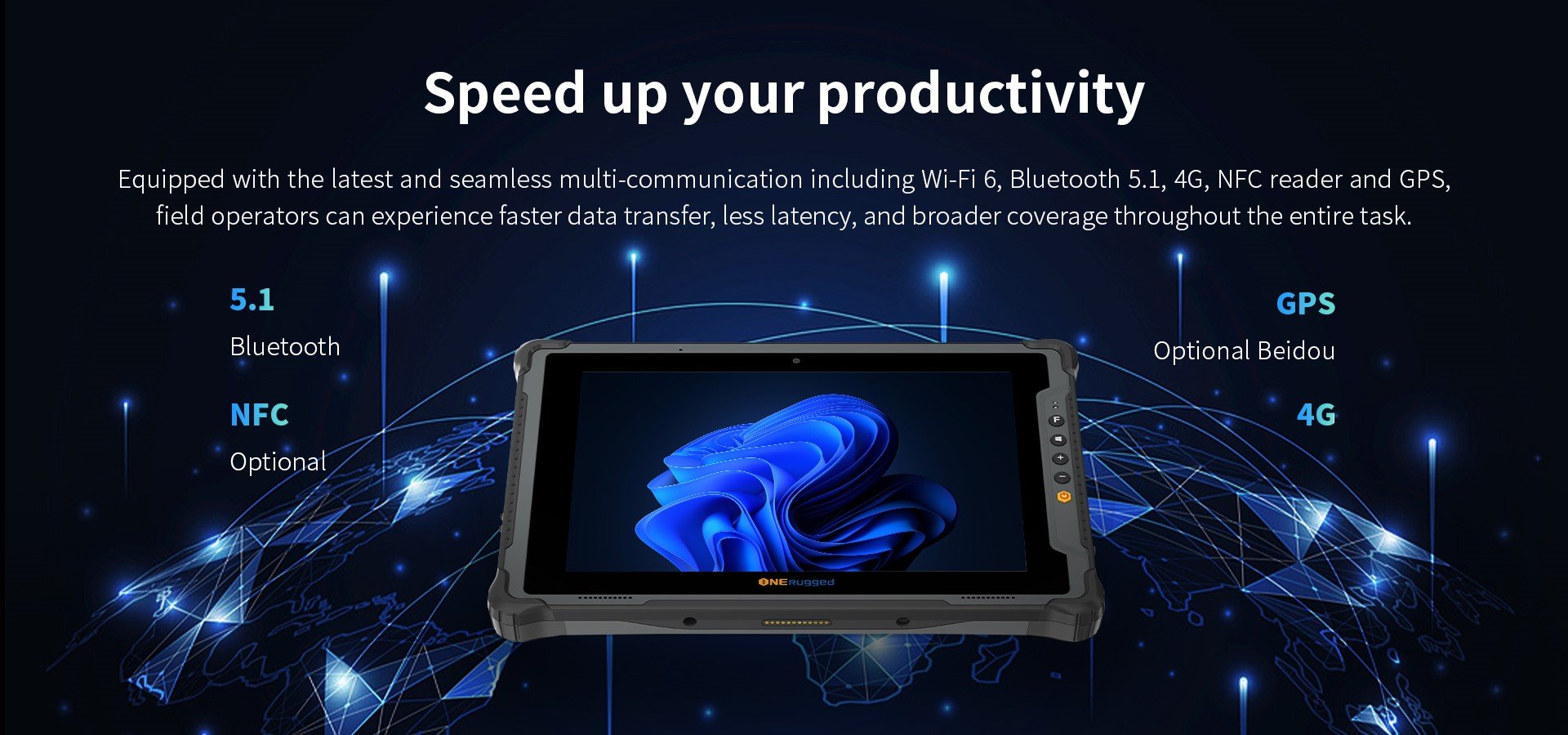

WiFi 6 Technology

Supports the latest WiFi 6 technology, 4G and Bluetooth 5.1

642fd66b123e6

Dual-battery Design

7.4V/5000mAh + 7.4V/700mAh double battery, the large battery is removable and hot-swappable

642fd66e6180e

Full Types of Interfaces

Equipped with a full set of interfaces including full-featured Type-C, USB 3.0, Mini HDMI and more

643a55c4bfbb1

Expansion Modules

Choose one of four modules among wired network interface, USB 2.0, RS232 and 2D barcode module, choose as you like

64901674628a0

Reliable Quality

Passed IP65 and multiple stringent MIL-STD-810H military standard tests, industrial-grade safety protection

646eb83512733
646eb847f2c06
646eb853e6297
646eb861195fd
Reference Joel Hanson 230417
646eb8767f0d1
646eb88c8279c

Dimensions:

289.9×196.7×27.4mm

Weight:

1140g

Product Color:

Black

Display:

Size: 10.1 inch 16:10, Resolution: 1200*1920, Brightness: 700cd/㎡

Touch Panel

10 points capacity TP, G+G, Hardness over 7H, Scratch resistant, support glove touch

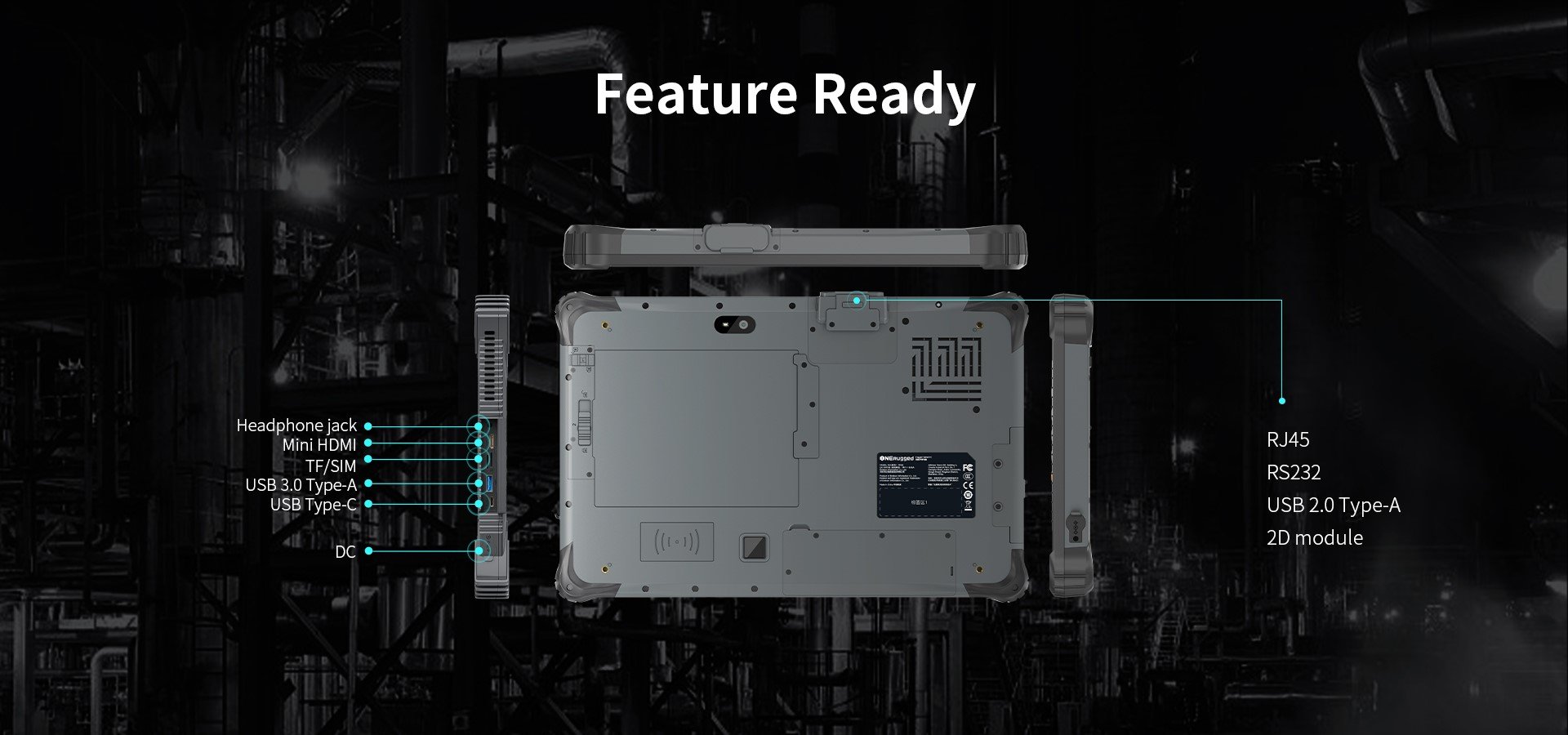

Ports

USB 3.0 *1

USB Type-C *1 (Full function/HDMI/Charging)

∮3.5mm Standard Earphone jack *1

HDMI Mini *1

SIM card slot *1, TF card slot *1

DC 19V3.42A *1

12Pin Pogo Pin *1

Optional: 1000M Ethernet port *1/RS232 *1/USB 2.0 *1/QR code scanner (one out of four)

Processor

Intel® Core™ i5-1235U Processor

Optional: Intel® Core™ i7-1255U Processor

Operating System

Windows 11

Memory+Storage

RAM: 16GB (DDR4L)

ROM: 128GB (SSD)

Camera

Front 200W

Rear 800W

Battery

Build in Lithium-ion polymer battery, 7.4V/700mAh

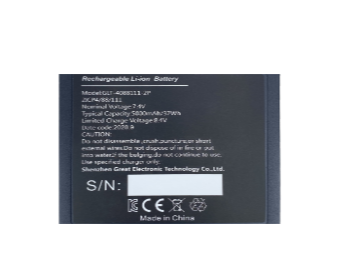

Removable Li-polyment Battery, 7.4V/5000mAh

RTC Battery

Built-in RTC battery

Power

Adapter (input AC 100V~240V 50Hz/60Hz, output DC 19V/3.42A)

Fan

IPX5 fan *1

Data Collection (optional)

QR Code Scanner

Fingerprint

Support

WiFi

802.11 (a/b/d/e/g/h/i/k/n/r/u/v/w/ac/ax), 2.4G+5.8G dual frequency

WAN

4G

Bluetooth

Bluetooth 5.1

GNSS

GPS

Optional: GPS+GLONASS+ Beidou

NFC (optional)

Support

IP Ratings

IP65

Drop Resistance

1.22m drop

MIL-STD-810H

Temperature

Working temperature: -20 °C to 60 °C

Storage temperature: -30 °C to 70 °C

ESD Protection

±15kV air discharge

±8kV contact discharge

Standard

Hand-strap, Carry Handle, Adapter

Optional

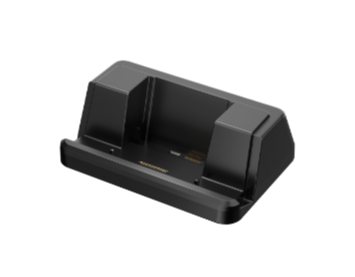

Docking Charger, Vehicle Mount, Removable Battery
