Overview
Flexible to use and powerful in functionality

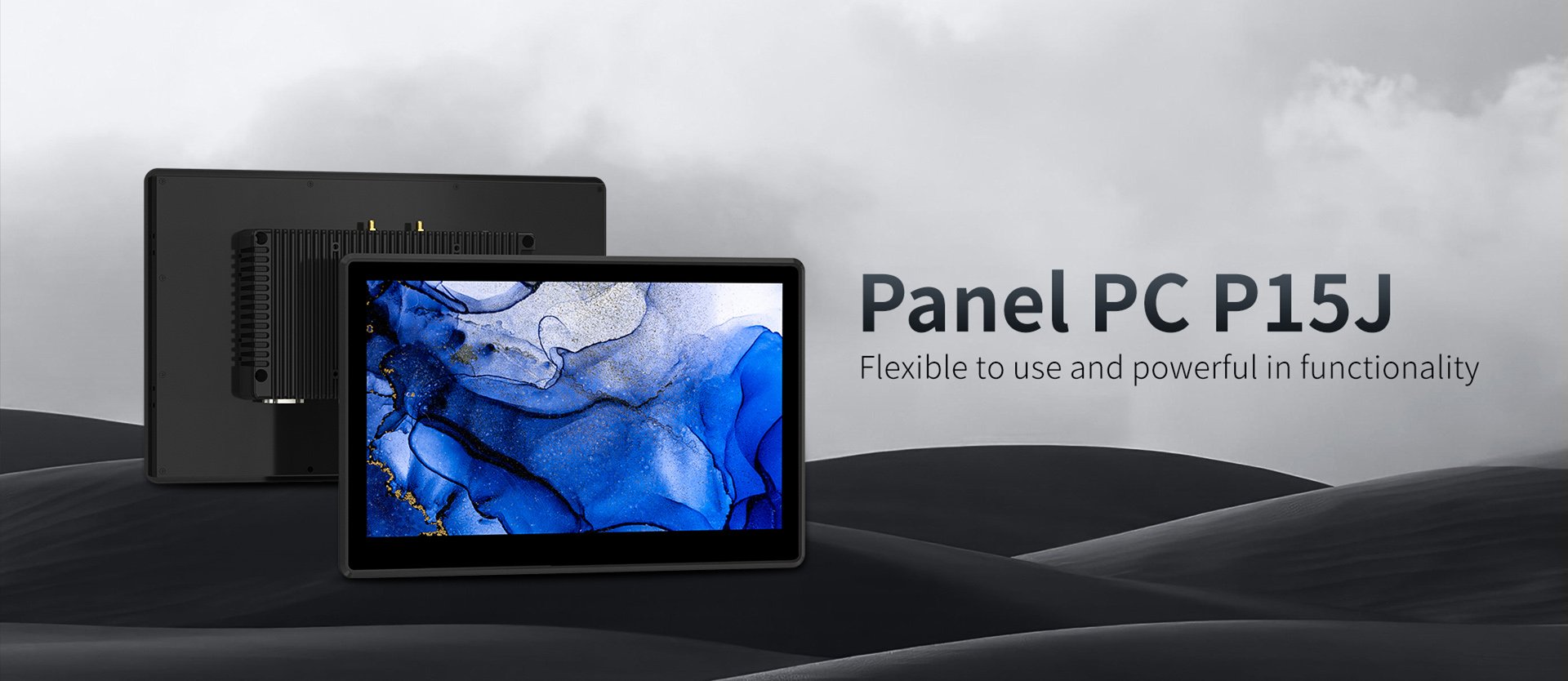

The P15J is a 15.6-inch flat panel pc powered by Intel's 11th generation Celeron processor based on the Jasper Lake platform, and Windows 11 operating system for demanding computing, control and visualization tasks. It’s compact and strong structure, fanless design, performance over a wide range of temperatures and voltages, can reliably withstand the rigors of 24/7 operation even in harsh environments. And with various mounting options, it can be widely used in industrial control, communication, network and other automation fields.
Full Flat Panel

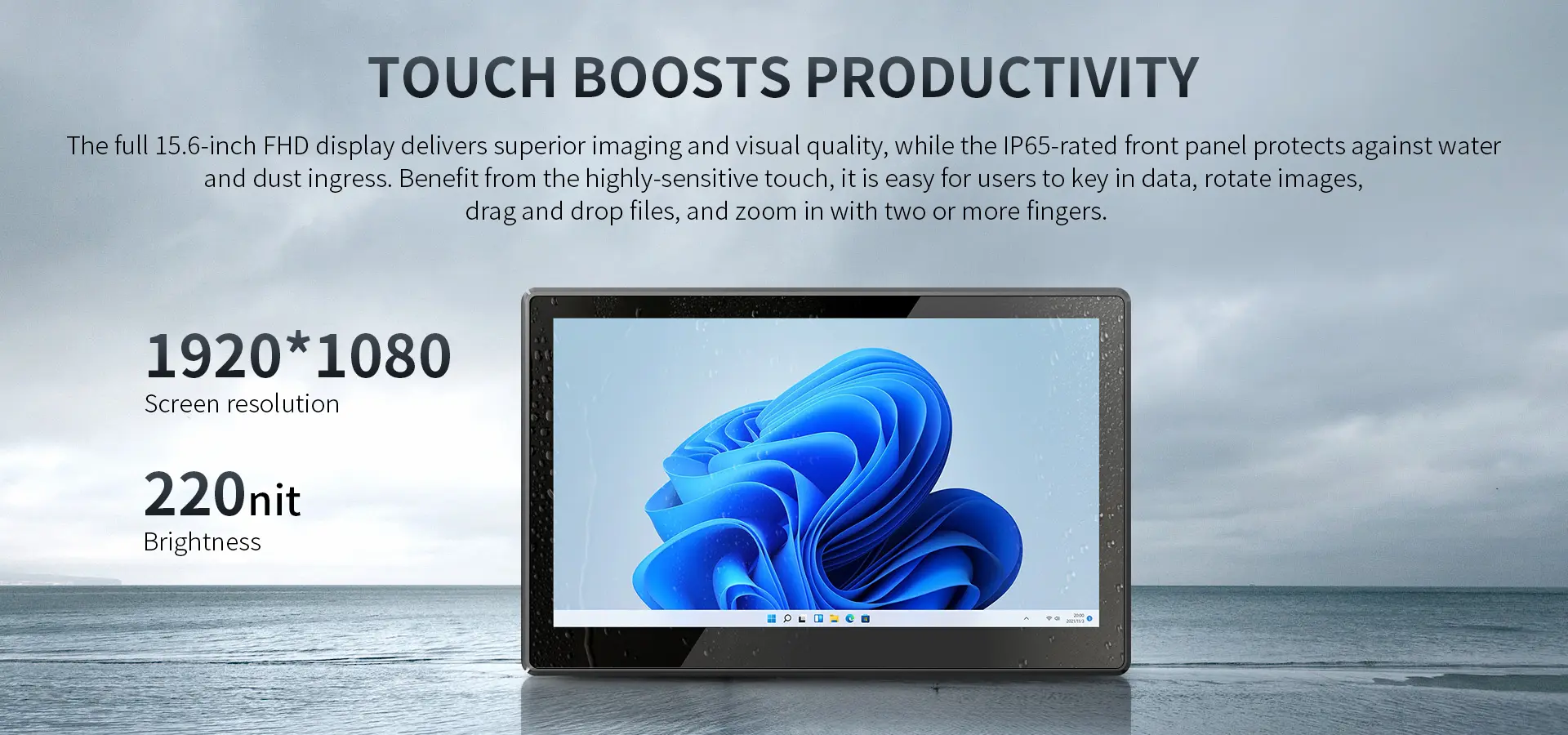

Full 15.6-inch HD display, the IP65-rated front panel protects against water and dust ingress
Excellent Performance
Powered by an 11th generation Intel Celeron processor, equipped with Windows 11 operating system
Industrial Motherboard
Excellent environmental adaptability, anti-electromagnetic interference and anti-static capabilities
7×24 Operation
Fanless design, using large-area uniform heating fin, running 24/7 without affecting reliability and service life
Rich I/O Interfaces
Rich interfaces, including multiple USB/LAN/HDMI and other I/O ports easily meet various scenario requirements
Multiple Networking
Dual-band Wi-Fi, Bluetooth 4.2, and expandable 4G (M.2 interface), multiple network connection modes

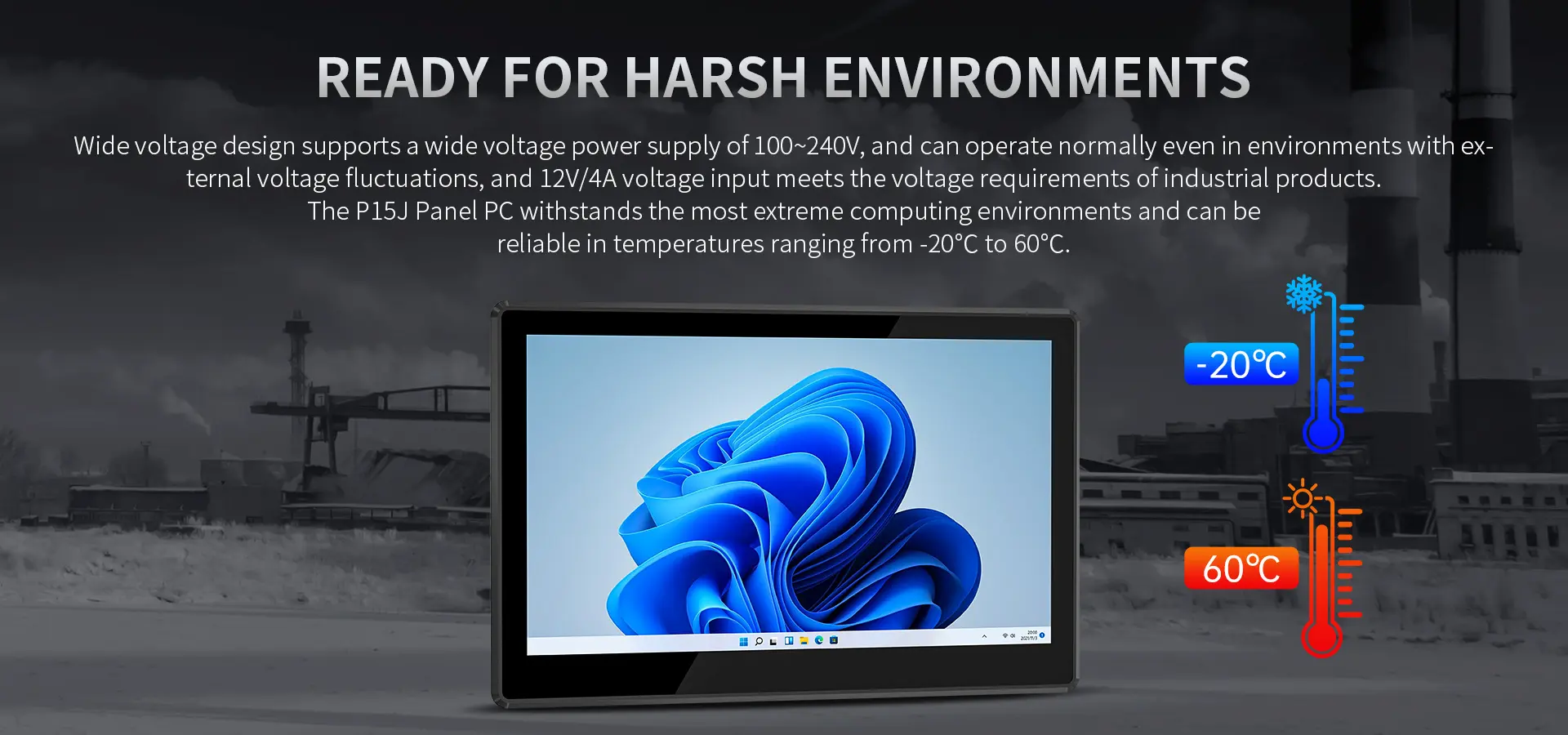

Wide Temperature and Voltage Range
Wide voltage and temperature design, can operate normally even under external voltage fluctuations or in extremely hot or cold conditions
Easy to Install
Standard PPC mounting hook component, easy to install and supports various installation methods such as embedded and wall-mounted
Tech Specs
(*Please be aware all technical data, specification and performance figures subject to change without notice.)
Dimensions
388.63x248.43x54.95mm
Weight
2.4kg
Product Color
Black
Display
Size: 15.6 inch, resolution: 1920x1080, brightness: 220cd/㎡
Touch Panel
10 PCAP, G+G
Ports
SIM card *1
USB 3.0 *2, USB 2.0 *2
DC 12V4A *1
∮3.5mm Standard Earphone jack *1
RJ45 *2 (10/100/1000M adaptive)
HDMI *1
Optional: Extensive Slot SATA
Optional: Phoenix Terminal (External charging)
Optional: TPM (Hardware reservation)
Processor
Intel® Celeron® Processor N5100
Operating System
Windows 11
Memory+Storage
RAM: 8GB
ROM: 128GB (M.2 interface)
Power
Adapter (Input AC 100V-240V 50Hz/60Hz, output DC 12V/4A)
WiFi
802.11 (a/b/g/n/ac), 2.4G+5.8G dual-frequency
Standard WiFi antenna
WAN (optional)
2G/3G/4G
Bluetooth
Bluetooth 4.2
Temperature
Working temperature: -20 °C to 60 °C
Storage temperature: -30 °C to 70 °C
ESD Protection
±15kV air discharge
±8kV contact discharge
Standard
Adapter, PPC hook assembly, WiFi antenna
