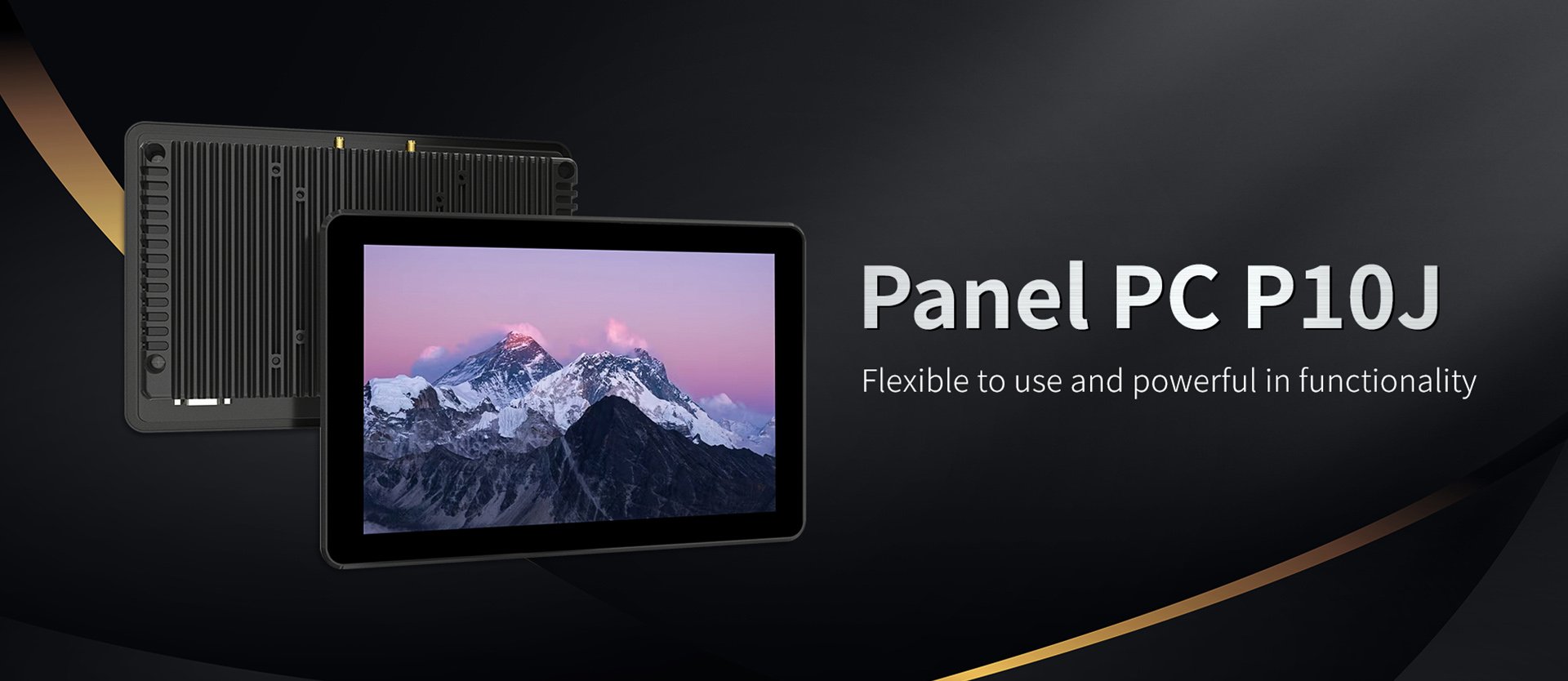

Overview

Flexible to use and powerful in functionality



The P10J is a 10.1-inch flat panel pc powered by Intel's 11th generation Celeron processor based on the Jasper Lake platform, and Windows 11 operating system for demanding computing, control and visualization tasks. It’s compact and strong structure, fanless design, performance over a wide range of temperatures and voltages, can reliably withstand the rigors of 24/7 operation even in harsh environments. And with various mounting options, it can be widely used in industrial control, communication, network and other automation fields.

642fd65ab82c4

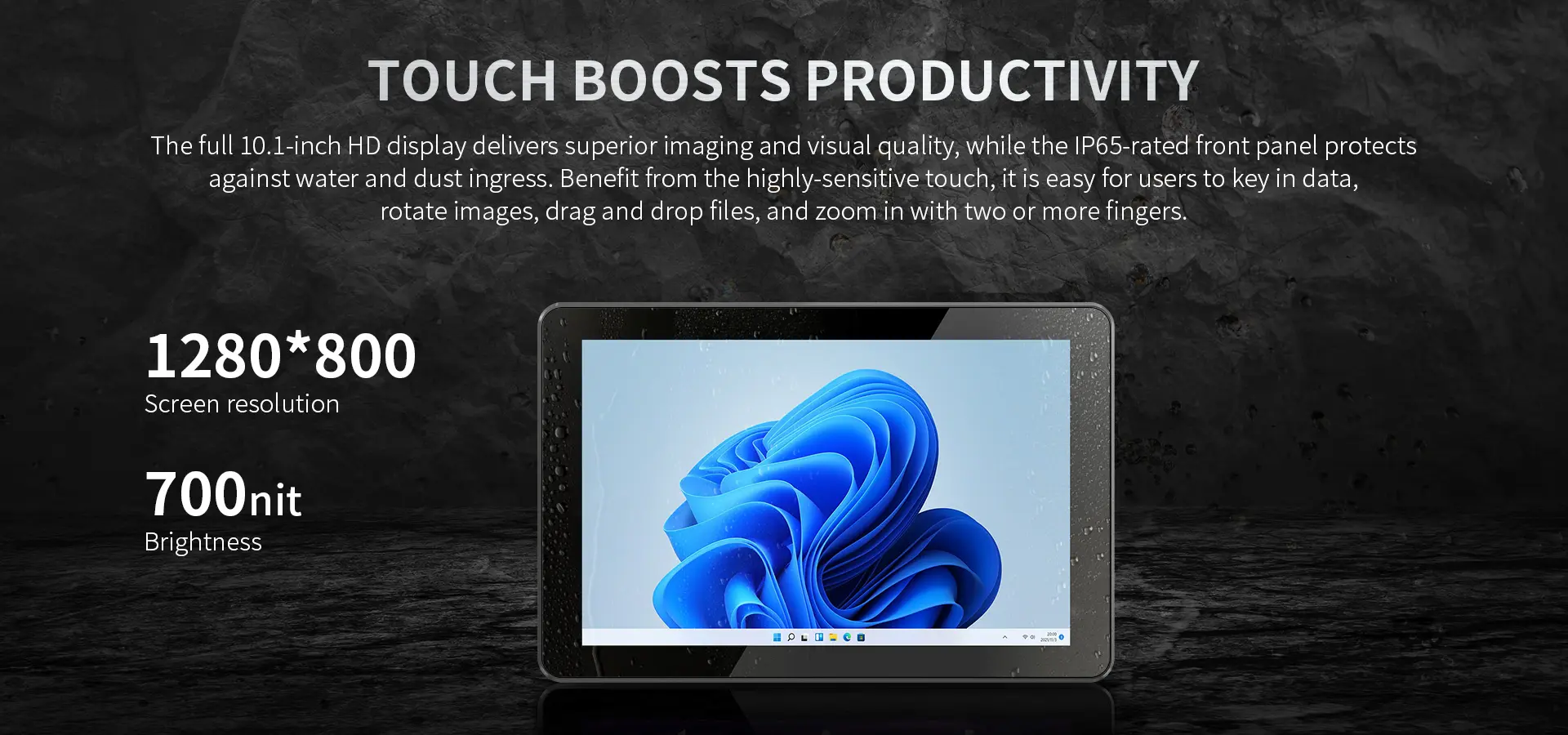

Full Flat Panel

Full 10.1-inch HD display, the IP65-rated front panel protects against water and dust ingress

642fd65f12359

Excellent Performance

Powered by an 11th generation Intel Celeron processor, equipped with Windows 10 operating system

642fd662c2fe9

Industrial Motherboard

Excellent environmental adaptability, anti-electromagnetic interference and anti-static capabilities

642fd66623735

7×24 Operation

Fanless design, using large-area uniform heating fin, running 24/7 without affecting reliability and service life

642fd66b123e6

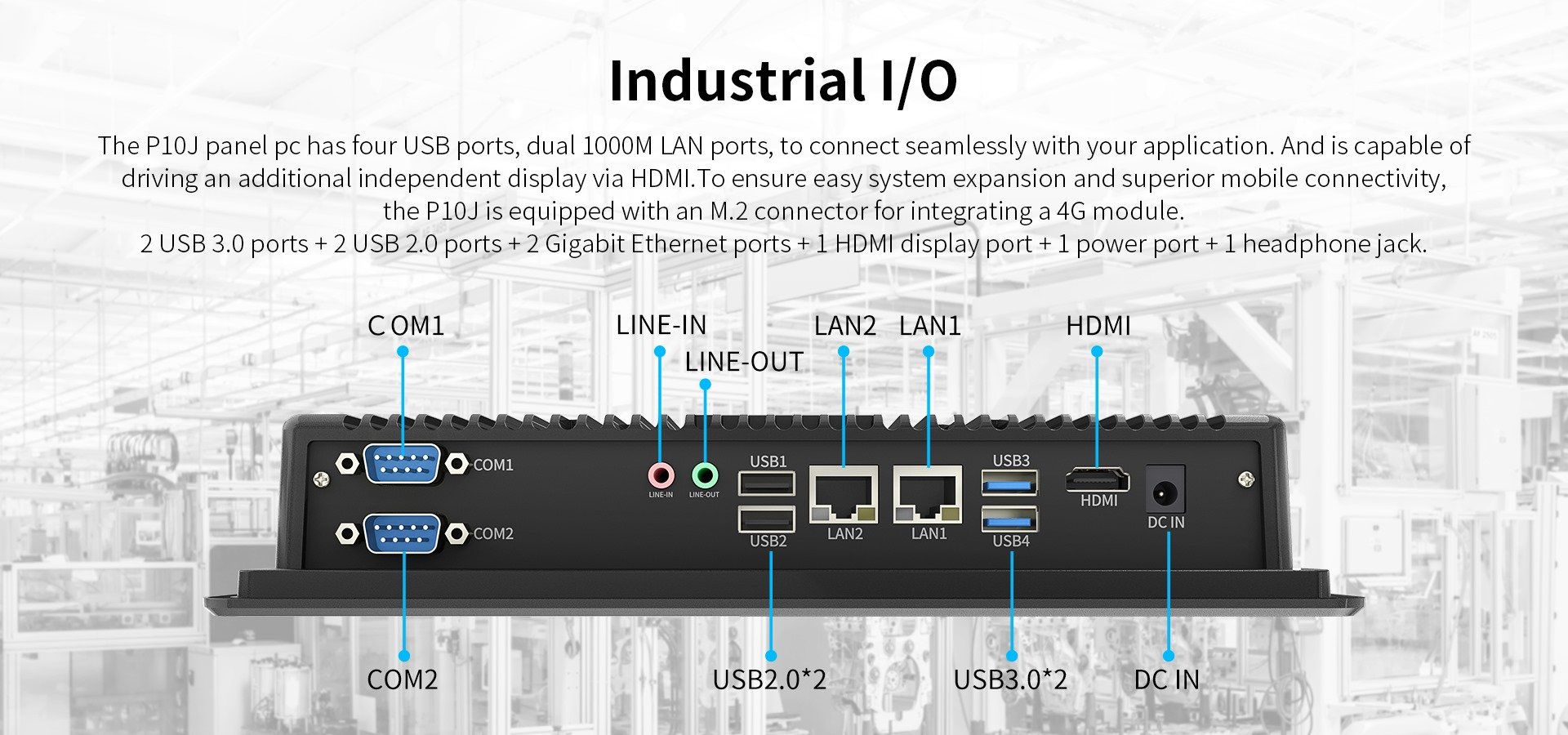

Rich I/O Interfaces

Rich interfaces, including multiple USB/LAN/HDMI and other I/O ports easily meet various scenario requirements

642fd66e6180e

Multiple Networking

Dual-band Wi-Fi, Bluetooth 4.2, and expandable 4G (M.2 interface), multiple network connection modes

643a55c4bfbb1

Wide Temperature and Voltage Range

Wide voltage and temperature design, can operate normally even under external voltage fluctuations or in extremely hot or cold conditions

64901674628a0

Easy to Install

Standard PPC mounting hook component, easy to install and supports various installation methods such as embedded and wall-mounted

64c3713f3b111
64c371bec6ffc
646da9f938acf
646daa0a343ad
64c3724169ad8
646daa456abe7

Tech Specs

(*Please be aware all technical data, specification and performance figures subject to change without notice.)

Dimensions

257.2×170×45.95mm

Weight

1.2kg

Product Color

Black

Display

Size: 10.1 inch, resolution: 800×1280, brightness: 700cd/㎡

Touch Panel

10 PCAP, G+G

Ports

SIM card *1

USB 3.0 *2, USB 2.0 *2

DC 12V4A *1

∮3.5mm Standard Earphone jack *1

RJ45 *2 (10/100/1000M adaptive)

HDMI *1

Optional: Extensive Slot SATA

Optional: Phoenix Terminal (External charging)

Optional: TPM (Hardware reservation)

Processor

Intel® Celeron® Processor N5100

Operating System

Windows 10

Memory+Storage

RAM: 8GB

ROM: 128GB (M.2 interface)

Power

Adapter (Input AC 100V-240V 50Hz/60Hz, output DC 12V/4A)

WiFi

802.11 (a/b/g/n/ac), 2.4G+5.8G dual-frequency

Standard WiFi antenna

WAN (optional)

2G/3G/4G

Bluetooth

Bluetooth 4.2

Temperature

Working temperature: -20 °C to 60 °C

Storage temperature: -30 °C to 70 °C

ESD Protection

±15kV air discharge

±8kV contact discharge



Standard

Adapter, PPC hook assembly, WiFi antenna
