Overview

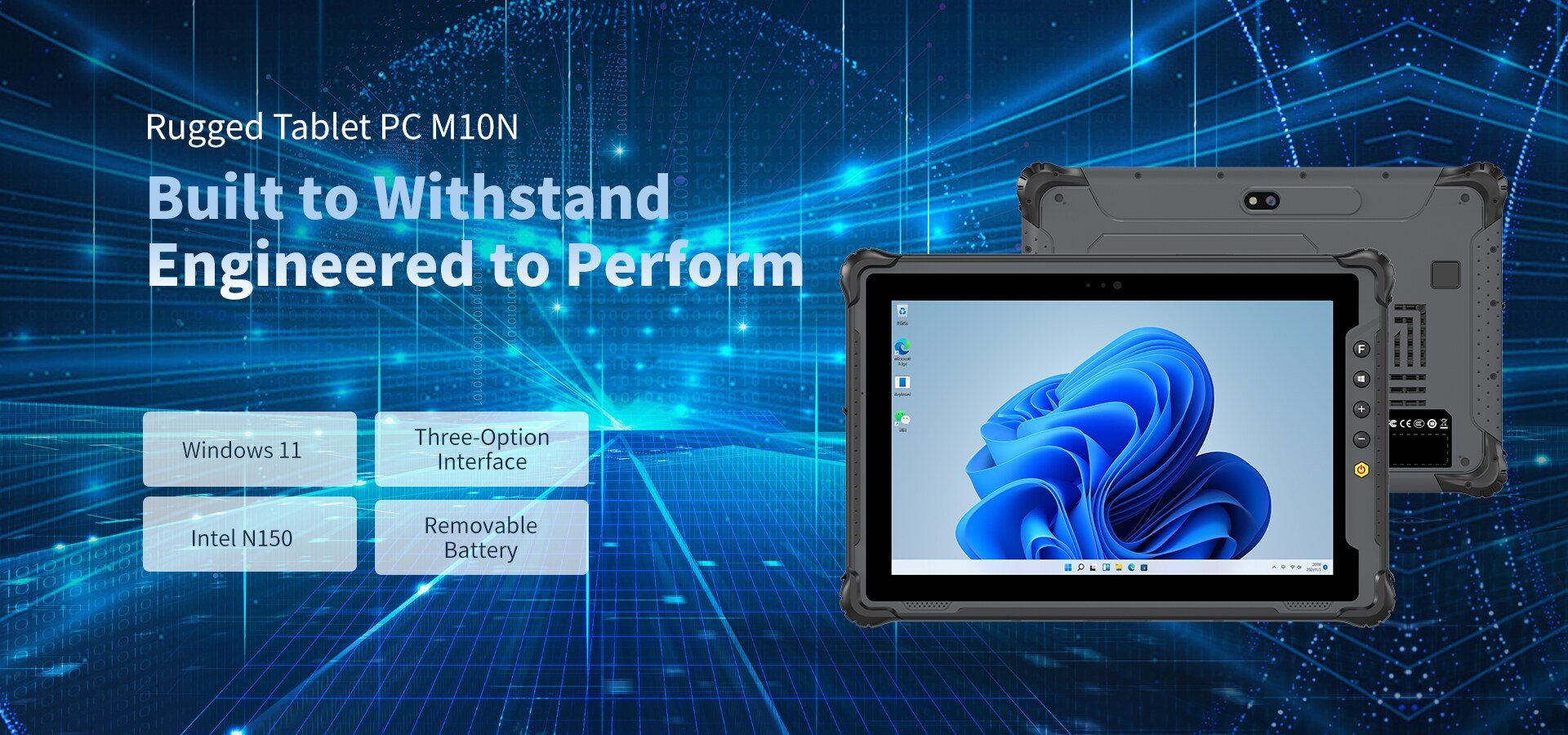

Powerful. Portable. Built for demanding environments.
The ONE Rugged M10N combines the latest Intel® N150 processor with a bright 10.1" Full HD display, Windows 11 Pro and rugged IP65/MIL-STD-810H protection.
Designed for field service, logistics, manufacturing, warehousing, transport, utilities and other demanding applications, the M10N delivers reliable Windows computing wherever your work takes you.
Built for Business. Ready for the Field.
Run Windows applications, business software and multiple applications efficiently with the latest Intel® N150 processor.

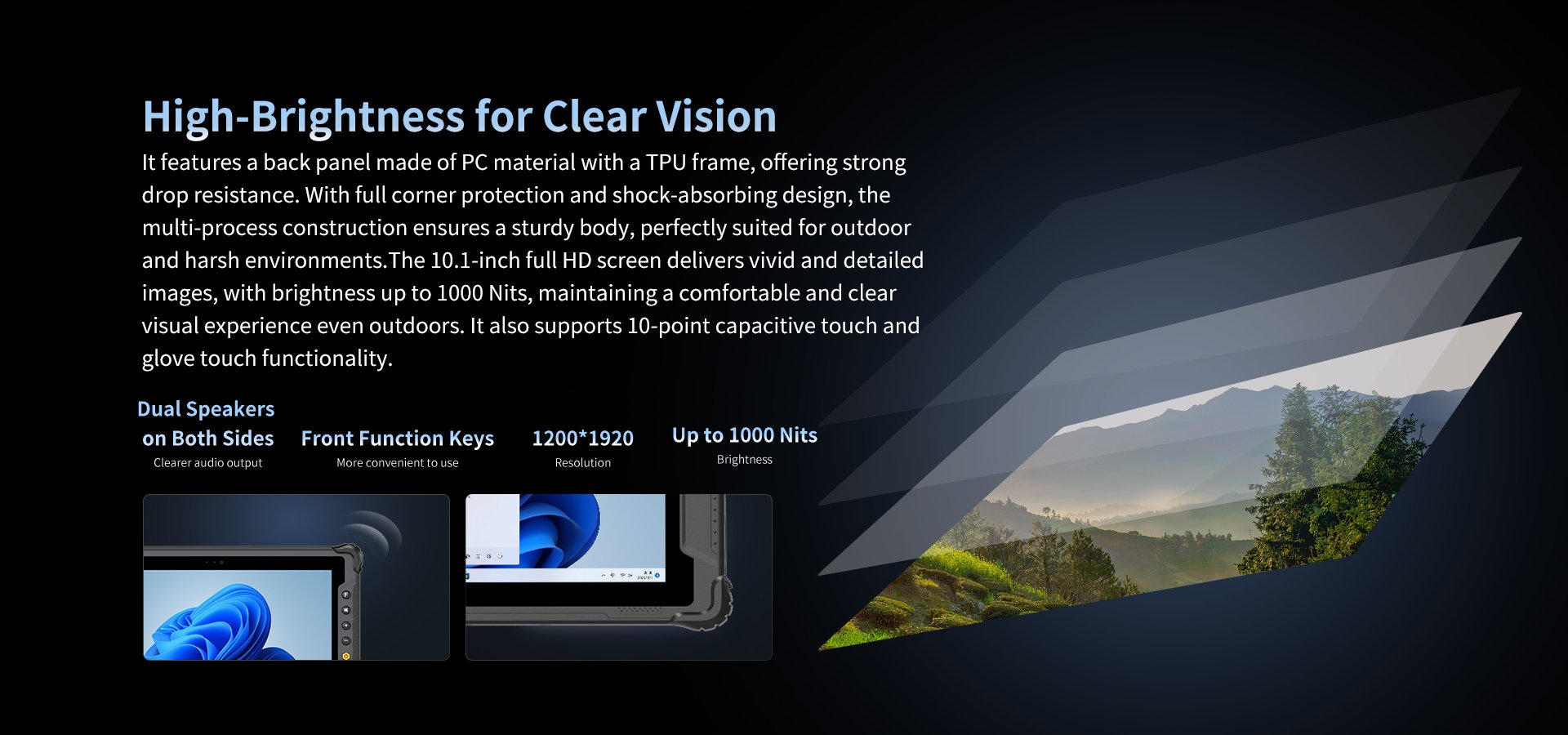

1,000-Nit Full HD Display
The 10.1" 1920 × 1200 display delivers excellent visibility in bright working environments, while 10-point capacitive touch and glove support make operation practical in the field.
Removable Battery. Designed for Extended Field Use.
The 5,000mAh removable battery allows the M10N to keep working away from the office, while an optional spare battery provides a practical way to extend operating time.
Flexible Connectivity
Wi-Fi 6, Bluetooth 5.2, optional cellular connectivity and GPS provide the connectivity required for mobile and field-based operations.
Communication Modules
4G and Bluetooth® V5.2, supported by GPS+module
Data Collection
2D barcode scan engine and NFC modules for options
Expandable for Your Application
Choose optional RS232, USB or Gigabit Ethernet expansion to integrate the tablet with industrial equipment, machinery, networks and specialist peripherals.

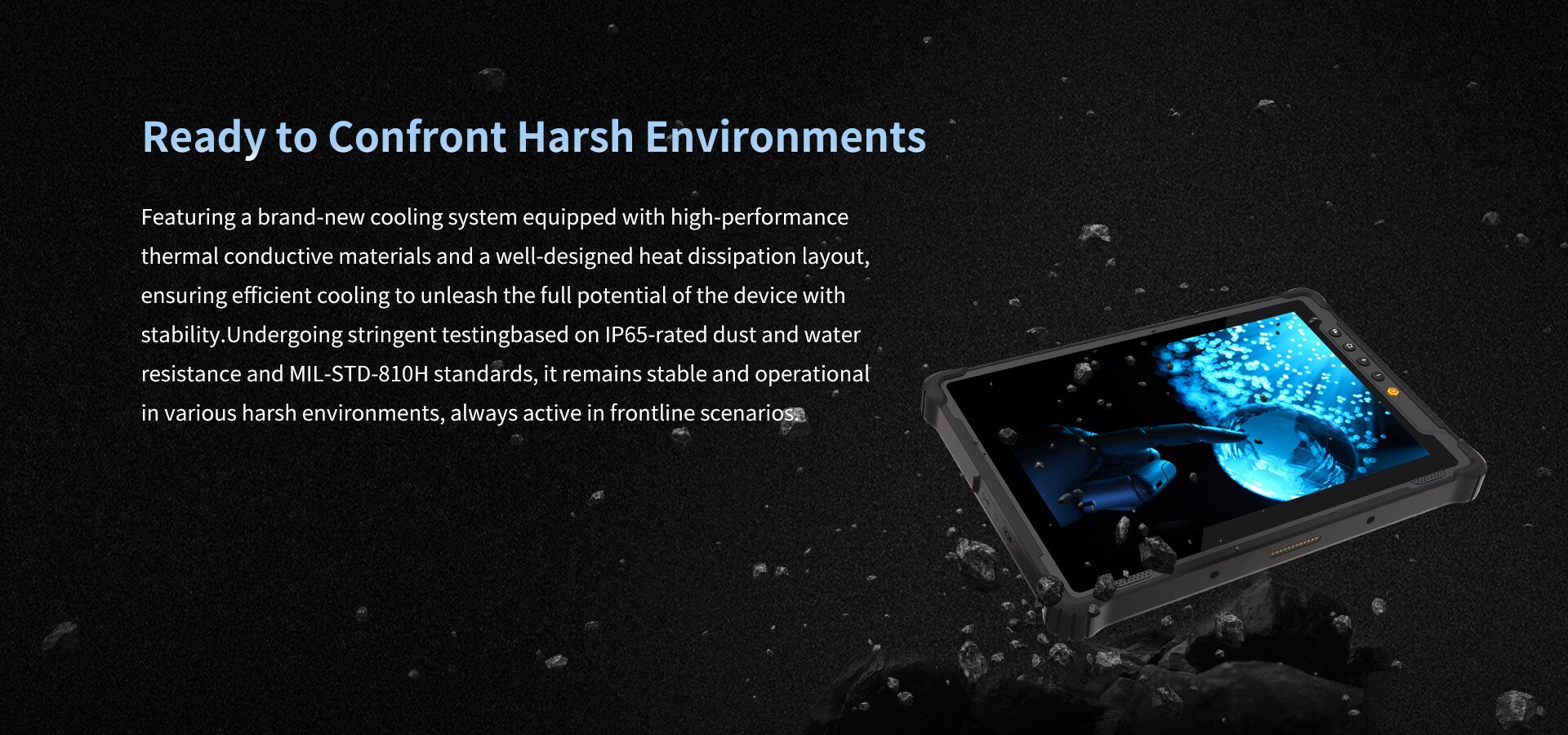

Tough and Robust
Passed the IP65 and MIL-STD-810H test, presenting solid waterproof and dustproof performance in the harsh environment
Dimensions
274.9*188.7*22.2mm
Weight
1140g
Product Color
Gray
Display
Size: 10.1 inch Resolution: 1200*1920 Brightness: 1000 Nits
Touch Panel
10-point capacitive touch screen, supports Glove touch

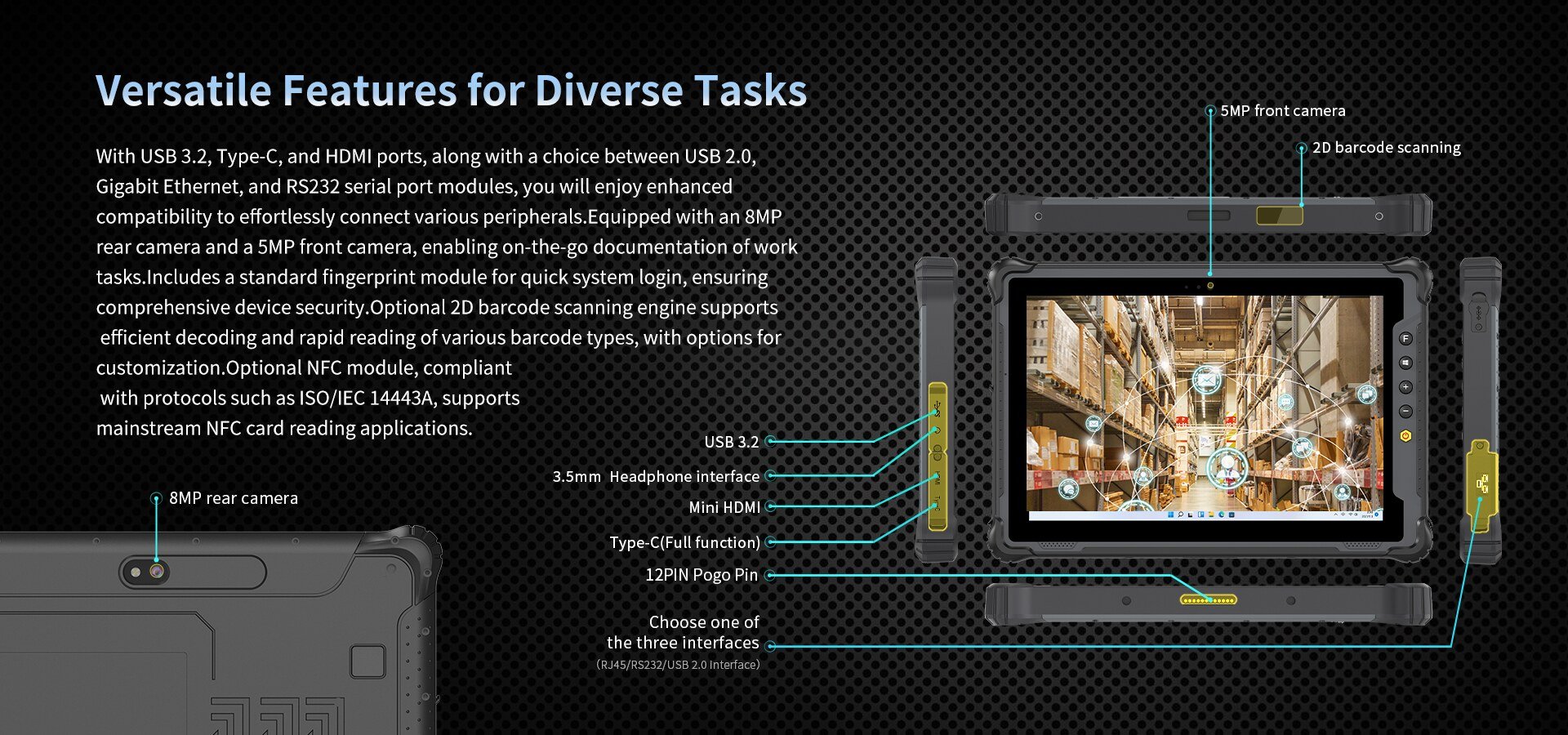

Ports
Micro SD card x1
SlM card x1
∮3.5mm Standard earjack *1
USB3.2 Gen1 (typeA) x1
USB3.2 Gen1 (typeC) x1
HDMI 2.0a mini x1
DC5.5mm-n jack x1
12PIN Pogo Pin *1
Charge&UsB)Extension modules(1 out of 3):RS232 x1、USB2.0 Gen1(typeA)x1、Default 10/100/1000 Ethernet(UsB2.0)x1
Processor
Intel® N150
Operating System
Windows 11 Pro-Optional Windows 11 Home/OT
Memory+Storage
8GB LPDDR5 on board -Optional 16GB LPDDR5 128GB EMMC -Optional 256GB EMMC
Camera
Front 5.0MP
Rear 8.0MP
Battery
Battery Li-on,7.6V,5000mAh
Power
AC adapter:100-240V,50Hz-60Hz，48W
Optional: EU, UK
Data Collection (optional)
Support 1D/2D barcode reader, NFC and fingerprint module
Optional：NFC
WiFi
Dual-band Wi-Fi 6, BT5.2 and optional 4G/5G
WAN
2G/3G/4G
Bluetooth
Bluetooth 5.2
GNSS
GPS
NFC (optional)
Support
IP Ratings
IP65
Drop Resistance
1.22m drop
MIL-STD-810H
Temperature
Working temperature: -20 °C to 60 °C
Storage temperature: -30 °C to 70 °C
Standard
Adapter
Hand Strap
Optional
Docking charger, Quad Charging Dock, Vehicle Mount, Battery
