Overview
Performance with AI

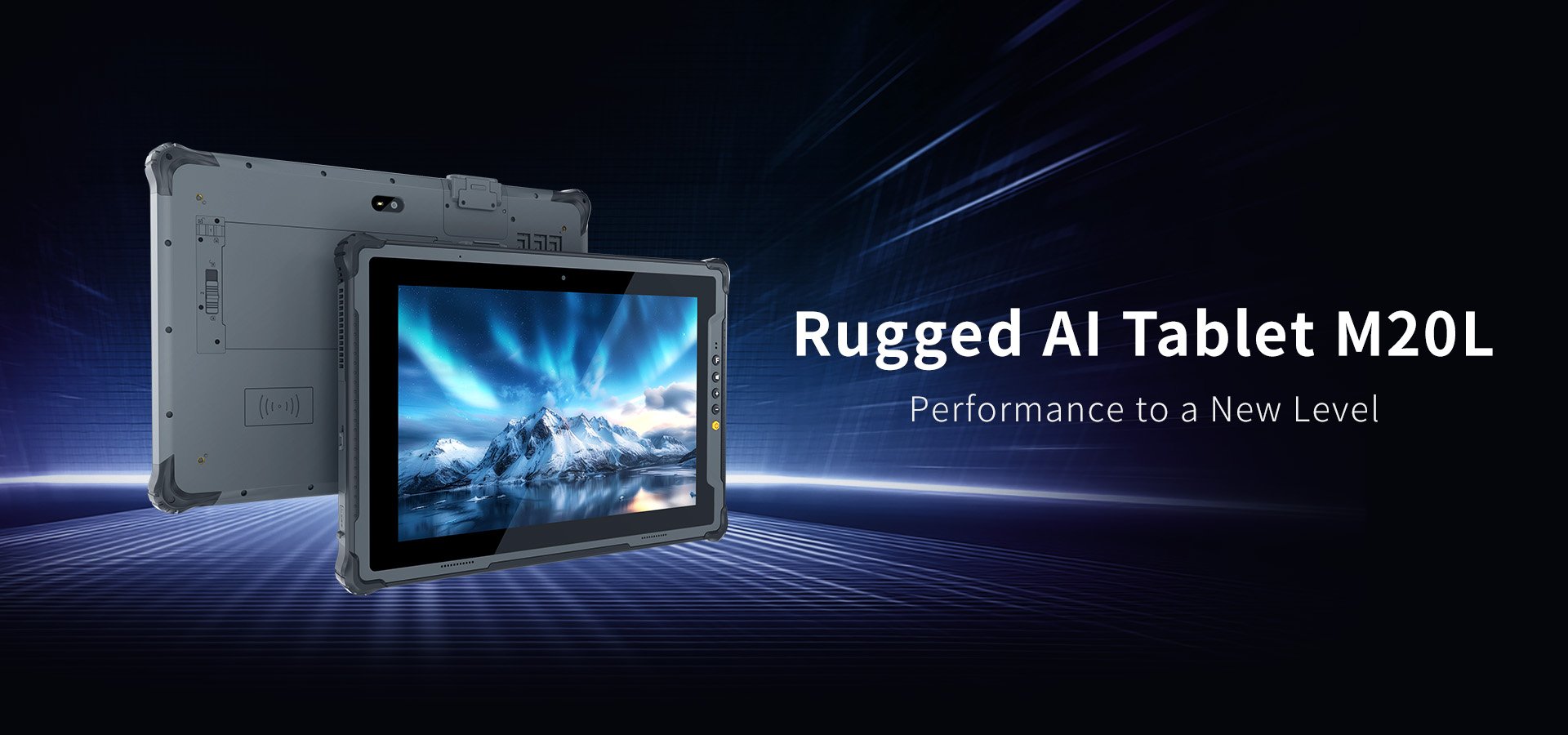

The ONERugged M20L is engineered for organisations that demand uncompromising performance, reliability and mobility in challenging working environments. Combining a large 12.2-inch Full HD display, advanced Intel® Core™ Ultra processing, powerful AI capabilities and enterprise-grade ruggedness, the M20L delivers a dependable mobile computing platform for field teams, engineers, technicians and industrial professionals.
At the heart of the M20L is the Intel® Core™ Ultra 5 226V processor, delivering up to 40 TOPS of AI performance. This advanced processing platform is designed to support the growing generation of AI-enabled business applications, helping organisations make better use of intelligent software, automated workflows, real-time data analysis and AI-assisted decision-making.

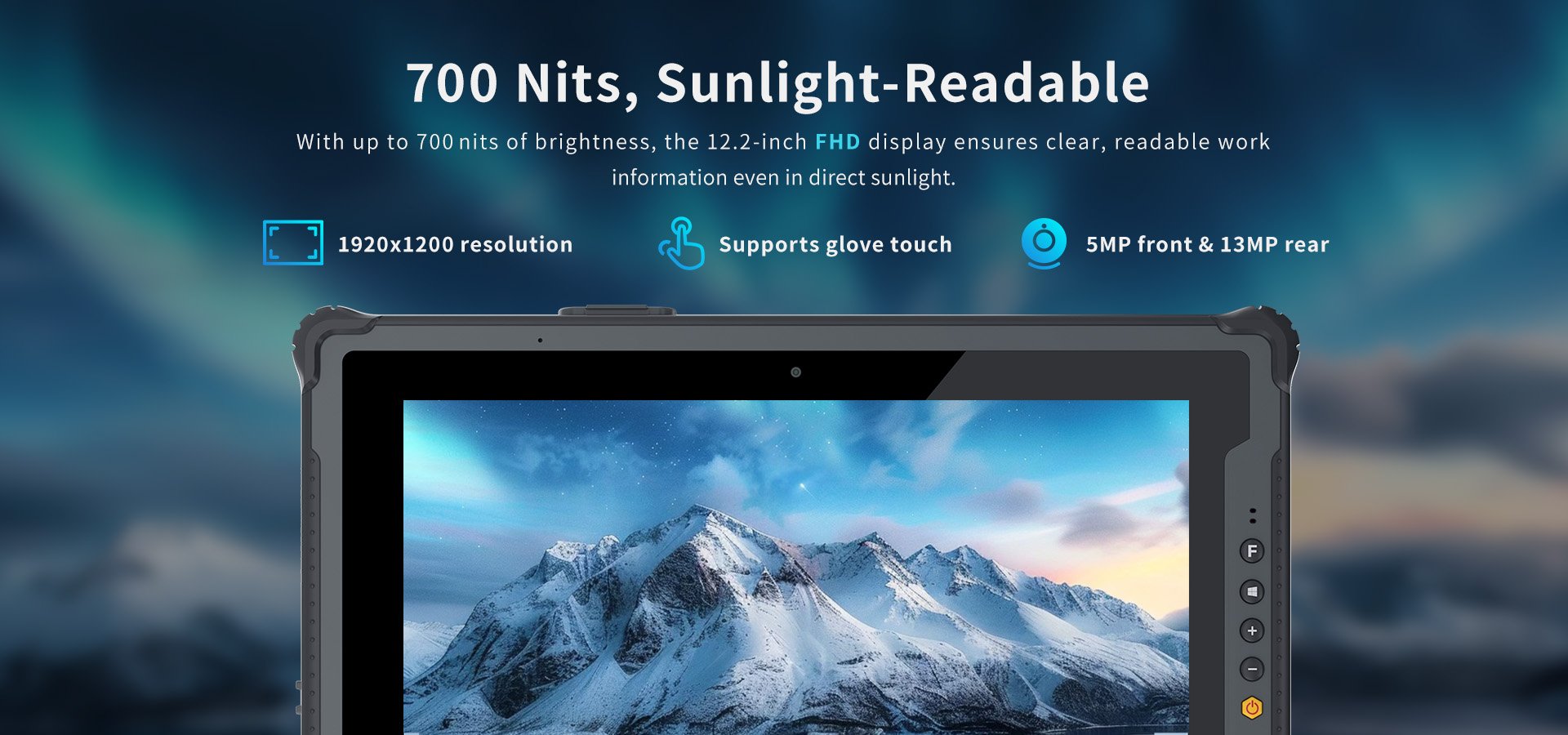

The 12.2-inch Full HD display provides a generous workspace for viewing detailed drawings, maps, documents, technical data and software interfaces. The larger screen makes the M20L particularly well suited to applications where visibility and productivity are critical, while its rugged mobile design allows users to take that workspace directly into the field.
Intel Ultra 5
Powered by Intel® Core™ Ultra Processors – Stay ahead with next-generation AI computing powered by the Intel® Core™ Ultra 5 226V processor, delivering up to 40 TOPS of AI performance.
Expandable Storage
Support 16GB RAM + 128GB SSD, the SSD is detachable, easy to expand by simplely pulled out and replaced
High-definition and High-brightness
10.1-inch LCD screen with 700 nits high brightness
WiFi 6E Technology
Wi-Fi 6E, Bluetooth® 5.4, Gigabit Ethernet, Thunderbolt™ 4, USB 3.2, HDMI, optional 4G LTE or 5G, plus GPS and GLONASS
Dual-battery Design
7.4V/5000mAh + 7.4V/700mAh double battery, the large battery is removable and hot-swappable
Full Types of Interfaces
Equipped with a full set of interfaces including full-featured Type-C, USB 3.0, Mini HDMI and more
Expansion Modules
Choose one of four modules among wired network interface, USB 2.0, RS232 and 2D barcode module, choose as you like
Reliable Quality

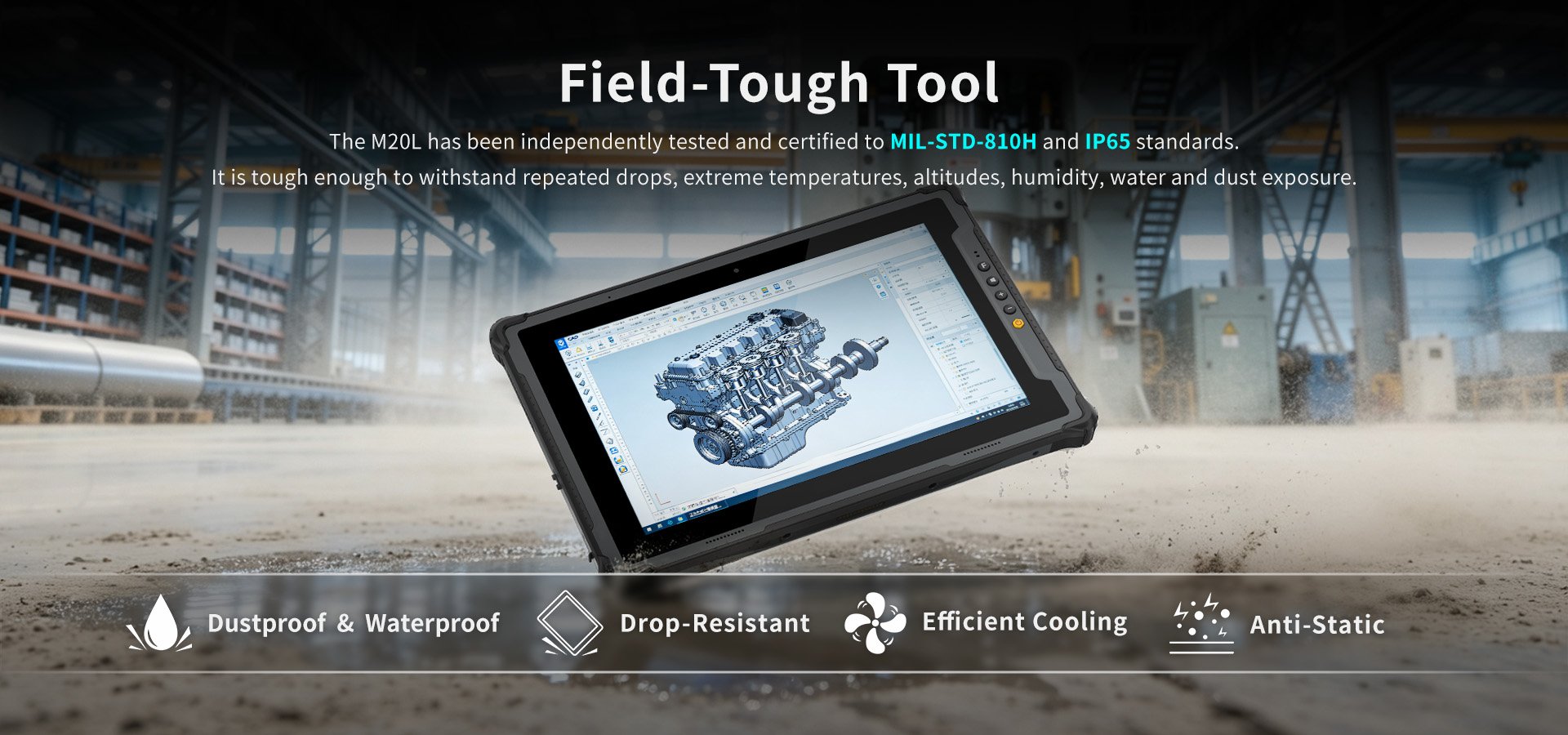

Passed IP65 and multiple stringent MIL-STD-810H military standard tests, industrial-grade safety protection
DISPLAY - Size: 12.2″ diagonal - Resolution: FHD (1200 × 1920) - Brightness: 700 nits - Touch: 10-point capacitive, glove-compatible PHYSICAL DESIGN - Dimensions: 340.15 × 231.23 × 26.19 mm - Weight: 1500 g - Build: Aluminum chassis with reinforced corners - Color: Dark gray CAMERAS - Front Camera: 5.0 MP with microphone - Rear Camera: 13.0 MP with flashlight, autofocus AUDIO - Speakers: Dual integrated 1W speakers - Audio Jack: 3.5 mm stereo - Classification: Class K INPUT DEVICES - Buttons: 5 physical buttons (1 user-programmable) - Scanning Button: Dedicated side-mounted - Home Button: Quick-access control PORTS & CONNECTIVITY - Thunderbolt 4 (USB Type-C) - USB 3.2 (Type-A) - 1000M Ethernet (RJ45) - HDMI 2.1a mini connector - 3.5 mm audio jack - 5.5 mm DC power jack - 12-pin Pogo connector (charging & USB) - SIM card slot - Micro SD card slot
PROCESSOR (CPU) - Standard: Intel Core™ Ultra 5 226V - Optional: Intel Core™ Ultra 7 (256V or 258V) - Cores/Threads: 8 cores / 8 threads - Cache: 8-12 MB (varies by model) - Base Frequency: Up to 4.5–4.8 GHz - TDP: 17W (ultra-efficient) AI PERFORMANCE - AI Capabilities: Up to 40 TOPS of AI computing power - GPU: Intel Arc (130V/140V) MEMORY (RAM) - Standard: 16 GB LPDDR5x - Optional: 32 GB LPDDR5x (with Ultra 7 258V) - Type: On-board (not upgradeable) STORAGE (SSD) - Standard: 256 GB PCIe SSD - Optional: 512 GB or 1 TB PCIe SSD - Interface: NVMe PCIe OPERATING SYSTEM - Standard: Windows 11 Pro - Optional: Windows 11 Home / IoT SECURITY - TPM: Integrated TPM 2.0 - Biometric: Fingerprint scanner - Optional: HF-RFID (NFC) reader
WIFI - Standard: Intel WiFi 6E (802.11ax) - Frequency: 2.4 GHz / 5 GHz / 6 GHz - Features: Latest WiFi technology for high-speed, low-latency connectivity BLUETOOTH - Version: Bluetooth® 5.4 - Features: Extended range, improved reliability, reduced power consumption CELLULAR (4G/5G) - 4G LTE: Multiple regional options - 5G: Optional support 4G LTE OPTIONS - DEFAULT - LTE-FDD: B1/3/5/7/8/20/28 - LTE-TDD: B38/40/41 - WCDMA: B1/5/8 POSITIONING - GPS: Integrated GPS + Glonass - Features: Accurate positioning and real-time tracking CONNECTIVITY I/O - Thunderbolt 4 with USB 3.2 - 1000M Gigabit Ethernet (RJ45) - Optional RS232 Serial Port - Micro SD card expansion - SIM card for cellular data
| IP Rating | IP65 |
| Military Standard | MIL-STD-810H certified |
| Drop Rating | 4 ft (1.2 m), 26 drops (all sides, edges, and corners) |
| ESD Protection | ±8 kV contact discharge, ±15 kV air discharge |
| Operating Temp | -20°C to 60°C (-4°F to 140°F) |
| Storage Temp | -30°C to 70°C (-22°F to 158°F) |
| Humidity | 95% non-condensing |
| Standard (included) | AC Adapter, AC Cable, Hand Strap, Carry Handle |
| Optional | Docking Charger, Vehicle Mount, Removable Battery (9800 mAh), Quad Charging Dock |
