Overview
Flexible to use and powerful in functionality
P17R is a 17-inch flat panel pc powered by an 11th-gen Intel Celeron Processor with Windows 11 OS, which offers a powerful, cost-effective, stable and easy-to-use solution to industrial requirements. And with HMI, fully enclosed design, fanless cooling system, rich I/O interfaces, international Wi-Fi, various installation methods, it can reach the industrial-level performance and quality standards, and can be applied in a wide range of industrial scenarios, like industrial production workshops, industrial automation equipment, and monitoring systems.
Full Flat Panel
17-inch 4:3 industrial display, compatible with professional applications
Excellent Performance
11th-gen Intel Celeron Processor with Windows 11 OS
Industrial Motherboard
Excellent environmental adaptability, anti-electromagnetic interference and anti-static capabilities
7×24 Operation
Industrial design, using large-area uniform heating fin, running 24/7 without affecting reliability and service life
Rich I/O Interfaces
Multiple interfaces: USB, RS232, RJ45, HDMI, and audio ports
Wide Temperature and Voltage Range
Wide voltage and temperature design, can operate normally even under external voltage fluctuations or in extremely hot or cold conditions
Easy to Install
Standard PPC mounting hook component, easy to install and supports various installation methods such as embedded and wall-mounted
Tech Specs
(*Please be aware all technical data, specification and performance figures subject to change without notice.)
Dimensions
401*332*57 mm
Weight
2.4kg
Product Color
Black

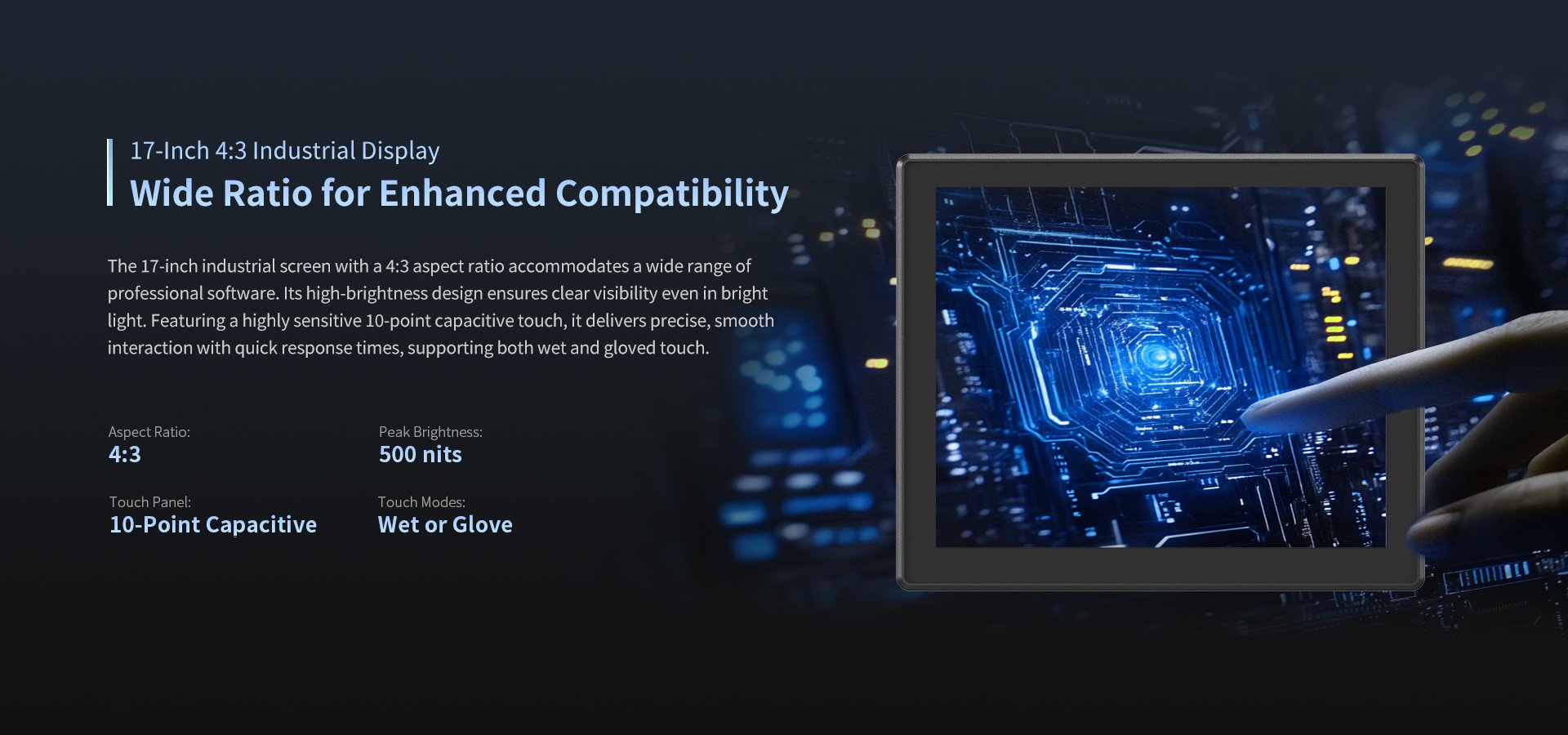

Display
Size: 17-inch 4:3 Resolution: 1280*1024 Brightness: 500 cd/㎡
Touch Panel
10 PCAP

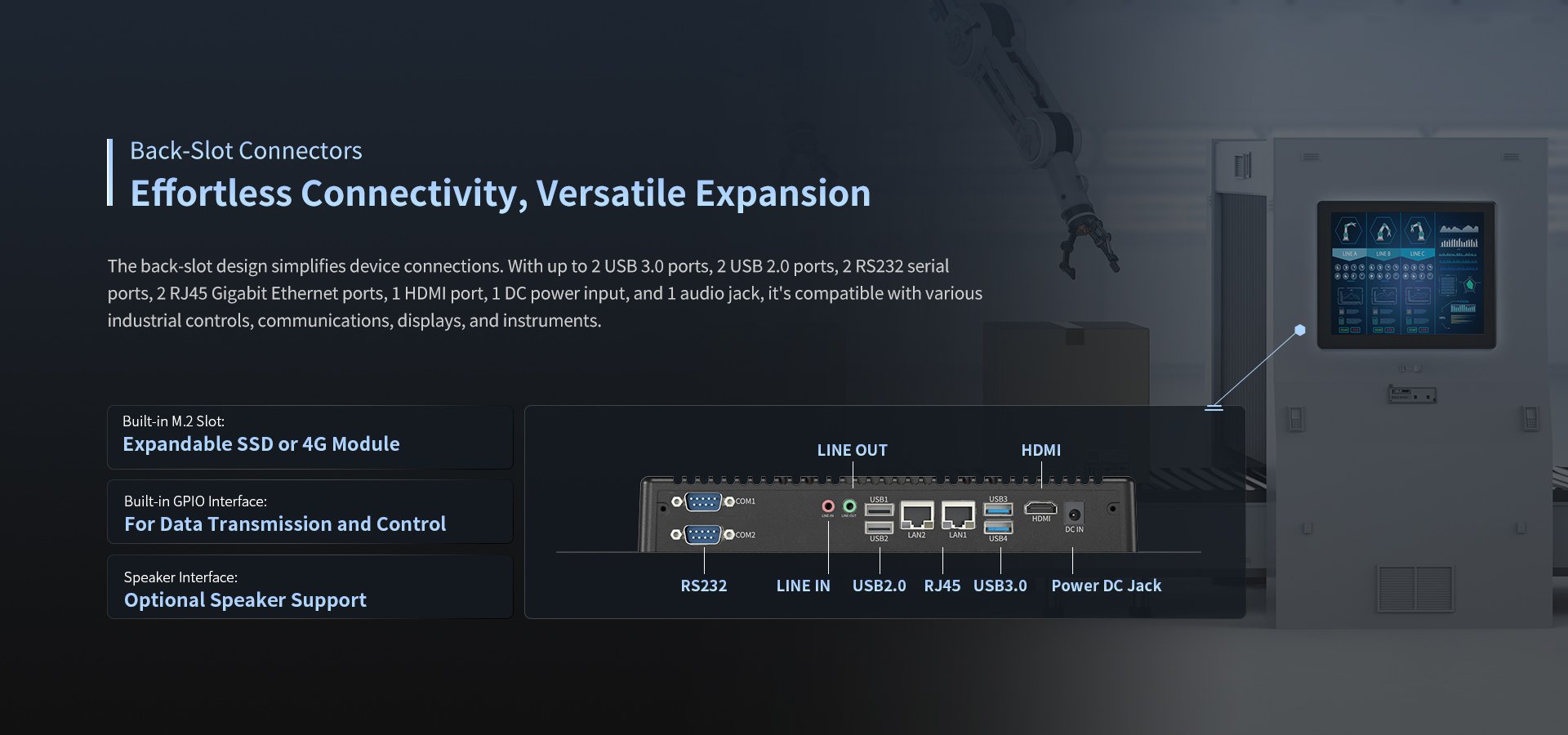

Ports
Type A USB: USB3.0 *2 + USB2.0 *2
DC IN 12V-24V Power connector *1
3.5mm Standard Earphone Jack *1
RJ45 *2 (10M/100M/1000M adaptive)
DB9 PORT RS232 *2
HDMI 2.0 Type A*1
Processor
N5100 processor
Operating System
Windows 11
Memory+Storage
RAM: 8GB
ROM: 128GB
Power
Adapter (Input AC 100V-240V 50Hz/60Hz, output DC 12V/4A)
WiFi
WIFI 802.11 (a/b/g/n/ac) , 2.4G+5G dual band WIFI
Standard WiFi antenna
WAN (optional)
2G/3G/4G
Bluetooth
Bluetooth 5.0
Temperature
Working temperature:
-30 °C to 70 °C
Storage temperature:
-30 °C to 70 °C
Humidity: 95% Non-Condensing
Certification
IP65 Front panel
Standard
Adapter, PPC hook assembly, WiFi antenna
