Overview

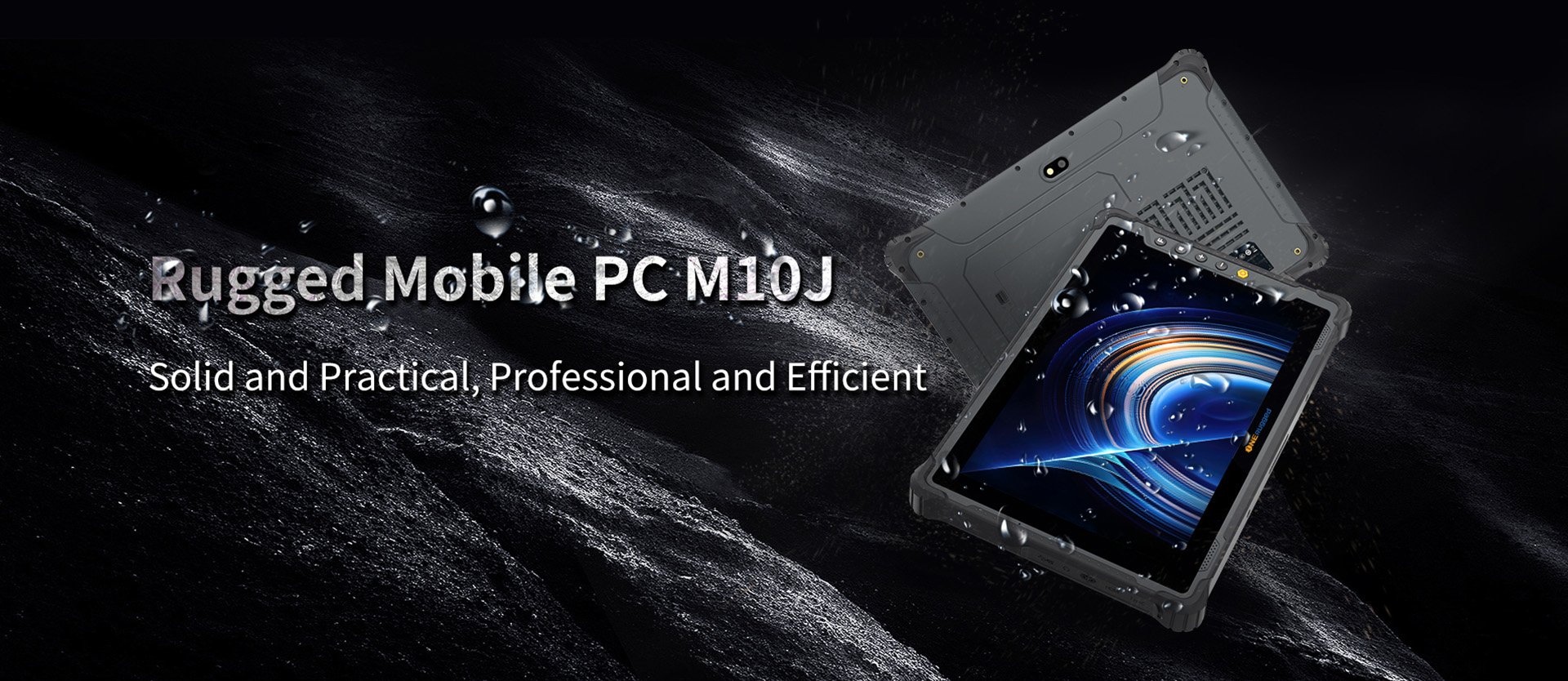

Solid and Practical, Professional and Efficient

M10J is a solid, practical, professional and efficient 10.1-inch cost-effective rugged mobile pc, adopting the Intel Celeron quad-core processor N5100 and Windows 10/11 operating system, and equipped with high-definition and high-brightness screen, detachable large-capacity battery, 4G/dual-band WiFi/Bluetooth 5.0 communication, GPS+Glonass+Beidou multi-mode positioning, front and rear cameras, 2D barcode scanning engine (optional), NFC module (optional), rich expansion interfaces, IP65 dustproof and waterproof, MIL-STD-810H, and many other configurations and functions, which can be applied to rich application scenarios such as industrial, transportation, energy, manufacturing, and public utilities.

642fd65ab82c4

Outstanding Performance

Equipped with Intel Celeron quad-core processor N5100 and Windows 10/11 operating system

642fd65f12359

Productivity Display

10.1-inch HD high-definition screen with 1000nits high brightness, supports 10-point capacitive touch

642fd662c2fe9

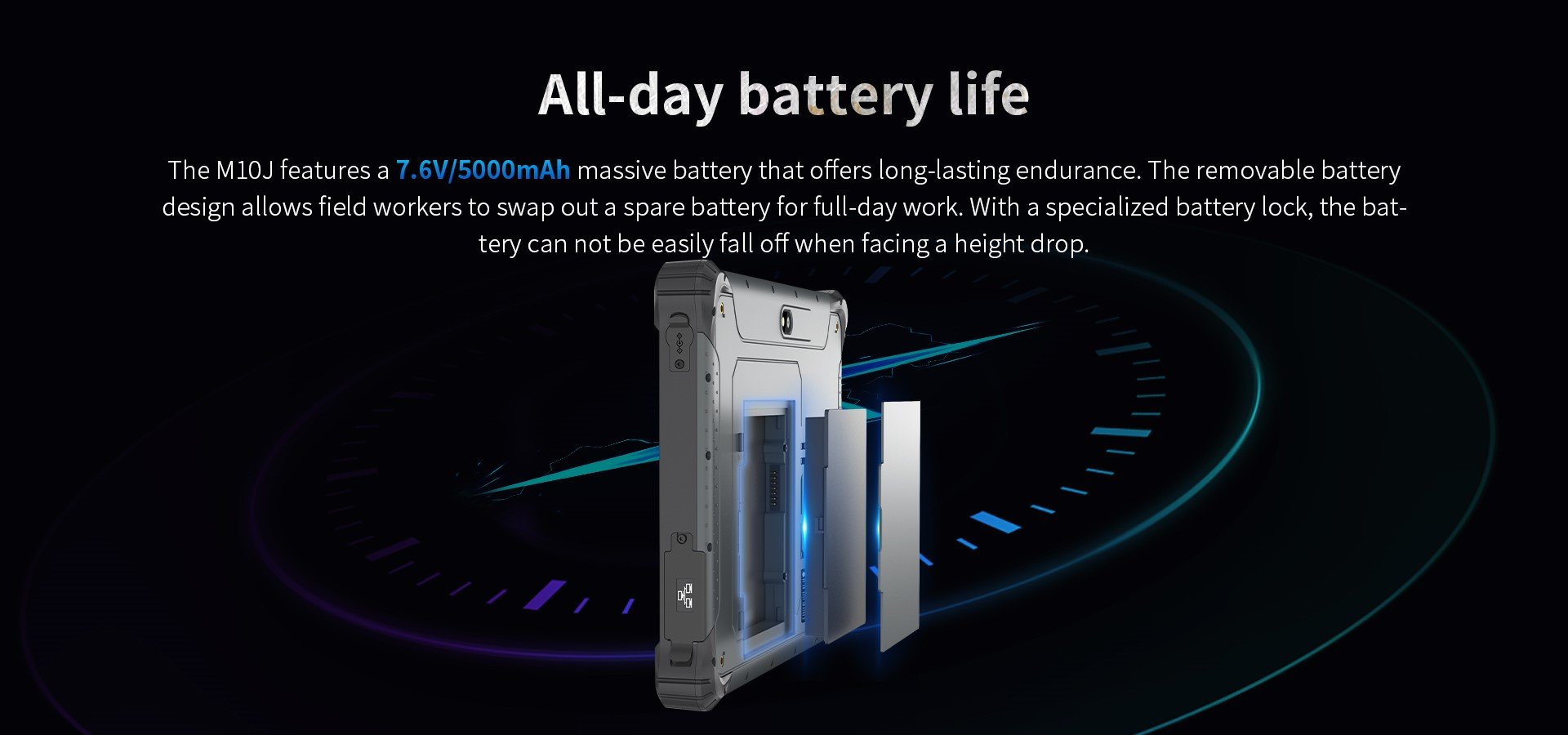

Long-lasting Stability

7.6V/5000mAh removable massive battery offers long-lasting endurance

642fd66623735

Dual-band WiFi

Integrated 2.4GHz+5GHz dual-band WiFi, WiFi 6 optional

642fd66b123e6

Communication Modules

Integrated 2G/3G/4G and BT5.0, supported by GPS, GLONASS,and BeiDou

642fd66e6180e

Data Collection

2D barcode scan engine and NFC modules for options

643a55c4bfbb1

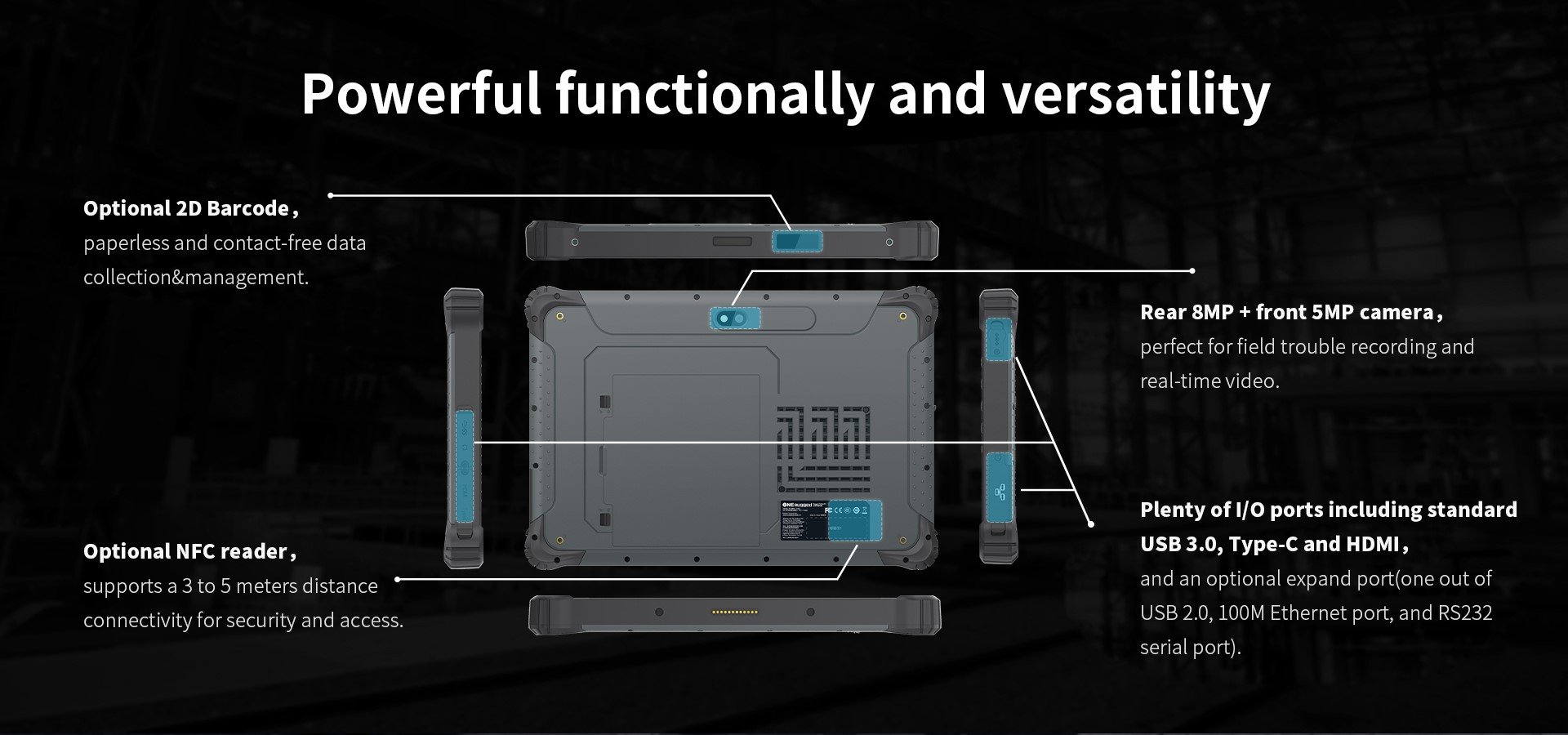

Rich interfaces

Standard USB 3.0, Type-C and HDMI and an optional expand port (one out of USB 2.0, 100M Ethernet port, and RS232 serial port)

64901674628a0

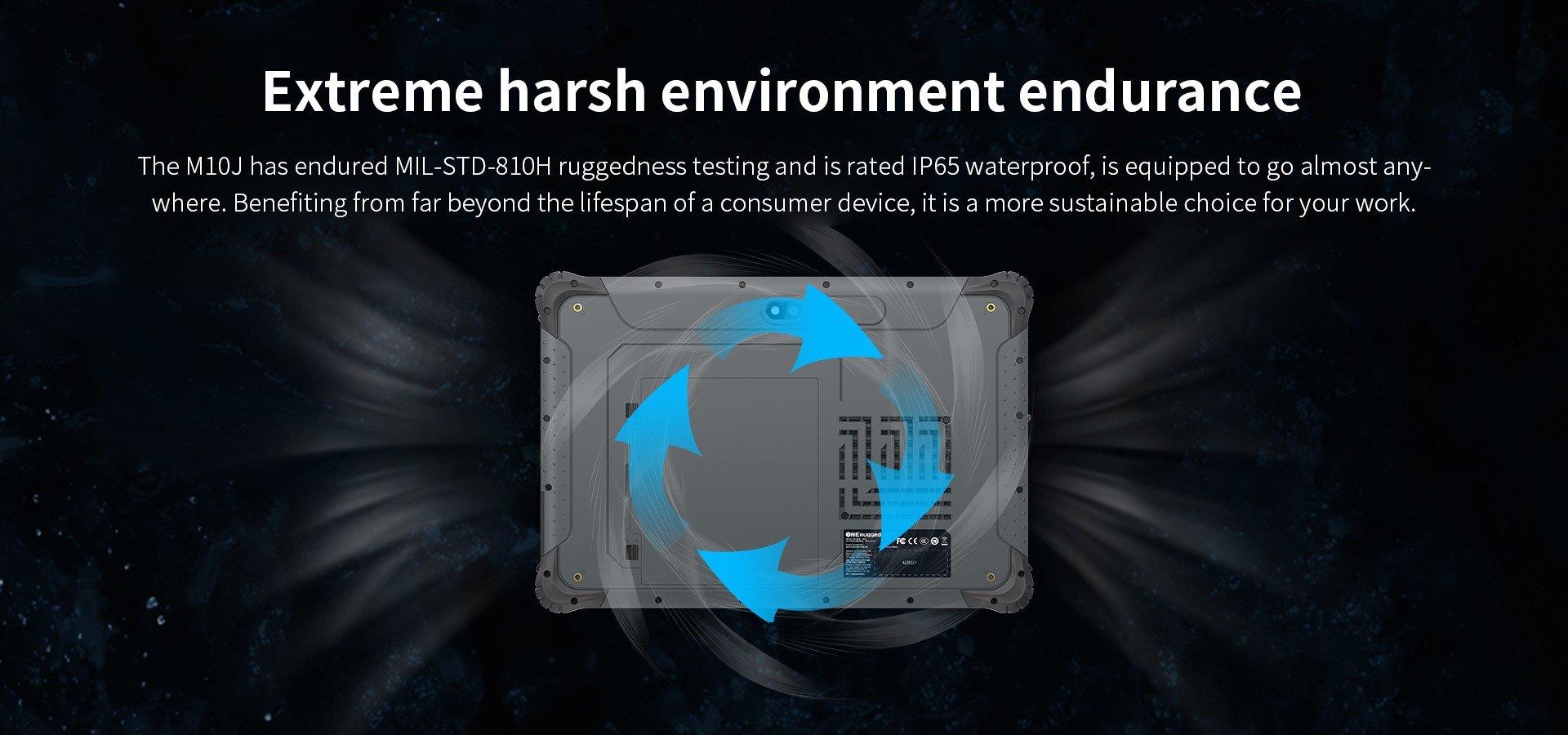

Tough and Robust

Endured MIL-STD-810H ruggedness testing and rated IP65

646ecd757b158
646ecd7edd456
646ecd8927417
646ecd94ed615
646ecda08a8fc
646ecdc3037cc

Dimensions

274.9×188.7×22.2mm

Weight

1028g

Product Color

Blue-gray

Display

Size: 10.1 inch 16:10, Resolution: 800*1280 (optional1200*1920), Brightness: 1000cd/㎡ or 700 cd/㎡

Touch Panel

10 points Capacitive screen, G+G, panda glass hardness above 7H, scratch-resistant, (optional gloves touch)

Ports

USB 3.0 *1

USB Type-C *1 (Data & Charging)

∮3.5mm Standard Earphone jack *1

HDMI Mini *1

SIM card slot *1, TF card slot *1

DC 19V3.42A *1

12Pin Pogo Pin *1

Optional: 100M Ethernet port *1/RS232 *1/USB 2.0 *1 (one out of three)

Processor

Intel® Celeron® Processor N5100

Operating System

Windows 10

Memory+Storage

RAM: 8GB (LPDDR4x)

ROM: 128GB (EMMC)

Camera

Front 500W

Rear 800W

Battery

Removable Li-polyment Battery, 7.6V/5000mAh

Power

Adapter (Input AC 100V-240V 50Hz/60Hz, output DC 19V/3.42A)

Data Collection (optional)

2D Code Scanner

WiFi

802.11 (a/b/g/n/ac), 2.4G+5G dual-band

WAN

2G/3G/4G

Bluetooth

Bluetooth 5.0

GNSS

GPS+GLONASS+ Beidou

NFC (optional)

Support

IP Ratings

IP65

Drop Resistance

1.22m drop

MIL-STD-810H

Temperature

Working temperature: -20 °C to 60 °C

Storage temperature: -30 °C to 70 °C

Standard

Adapter

Optional

Docking charger, Vehicle mount, Detachable battery, car charging
