Overview

Solid and Practical, Professional and Efficient

M20J is a 12.2-inch large-display cost-effective rugged mobile pc, adopting the Intel Celeron quad-core processor N5105 and Windows 11 operating system, which can bring immersive and efficient productivity experience. It is also equipped with expansion modules, dual-battery, active fan-cooling system, optional 5G module, etc., which can meet the high requirements of multiple interfaces, long battery life, strong heat dissipation, and fast communication during use in different scenarios.

642fd65ab82c4

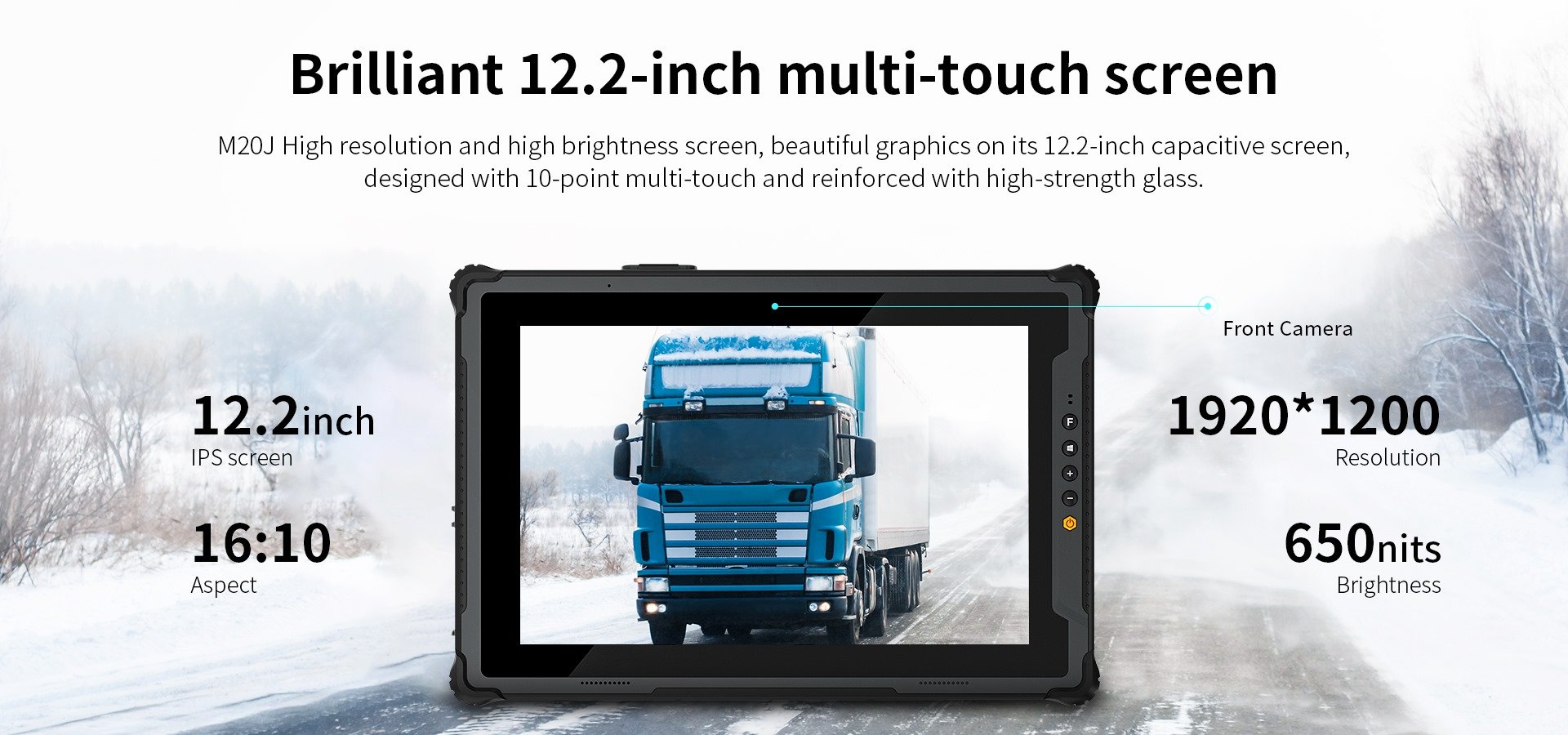

Large Display

12.2-inch large-size full HD high-brightness screen, supporting 10 point capacitive touch

642fd65f12359

11th Gen Intel Celeron

Equipped with desktop-level N5105 processor and Windows 11 operating system

642fd662c2fe9

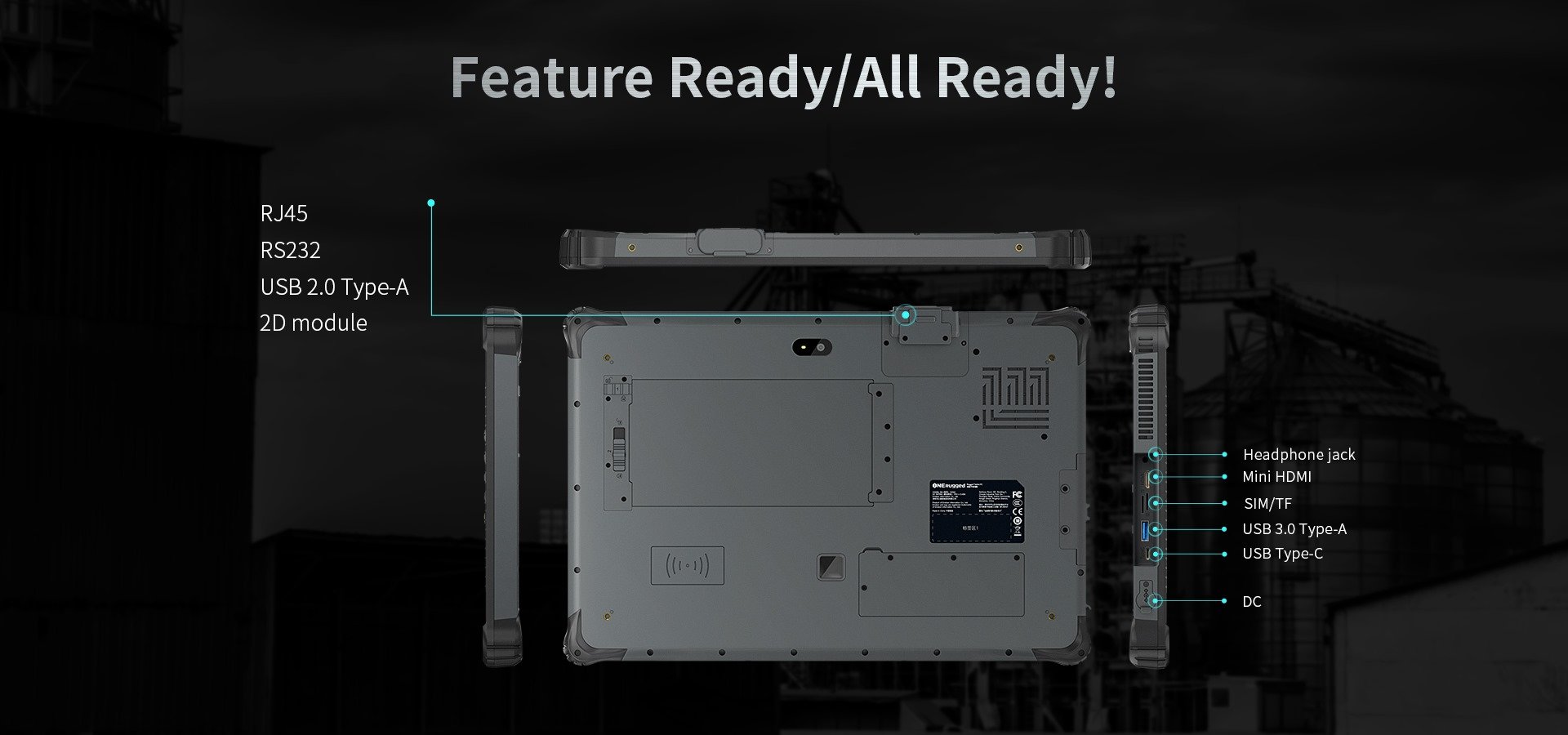

Modularisation Design

Modularisation design, choose 1 of 4 optional modules: network port/ serial port/ USB port/ 2D barcode module

642fd66623735

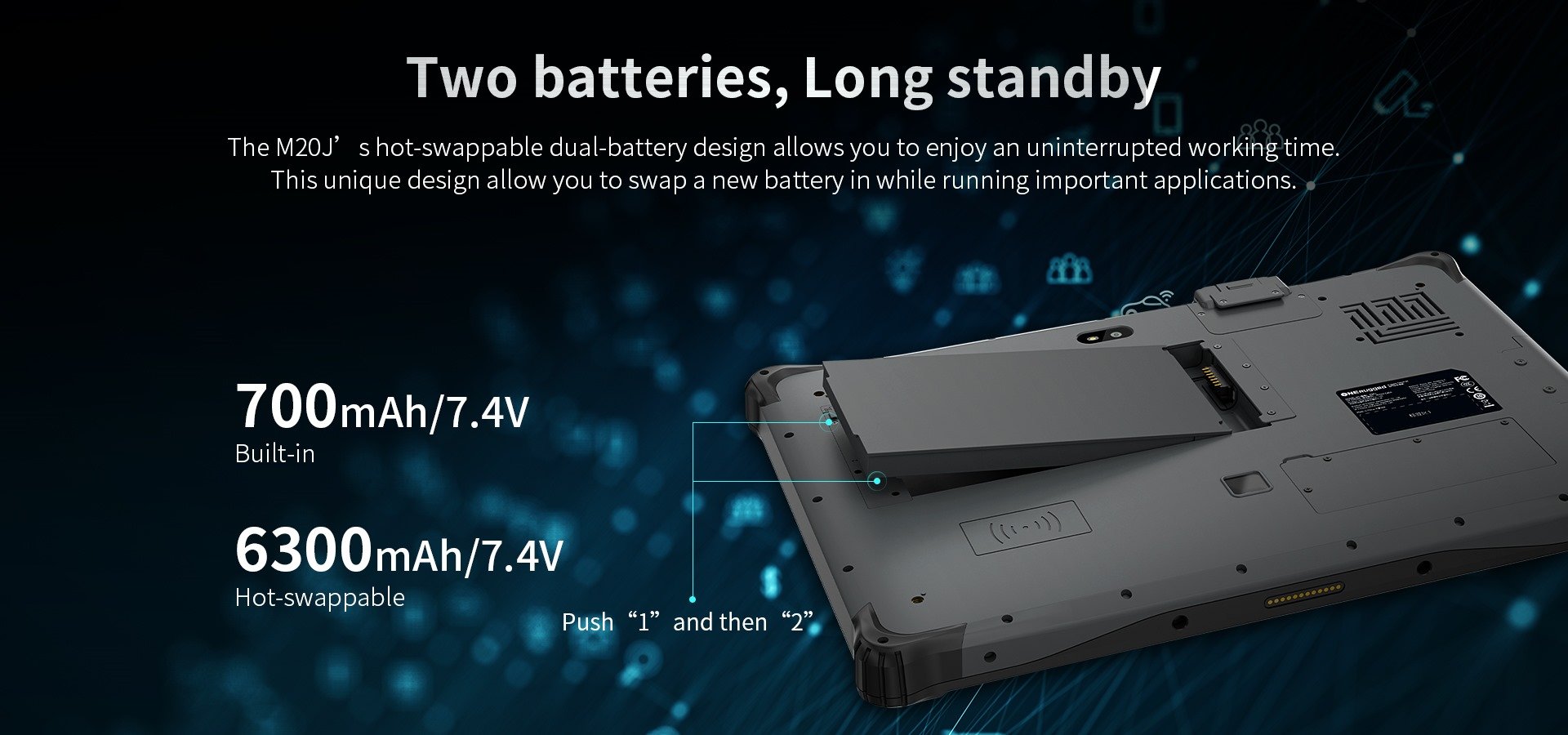

Dual-battery Capacity

700mAh small battery + 6300mAh large battery, the total battery capacity is as high as 51.8Wh

642fd66b123e6

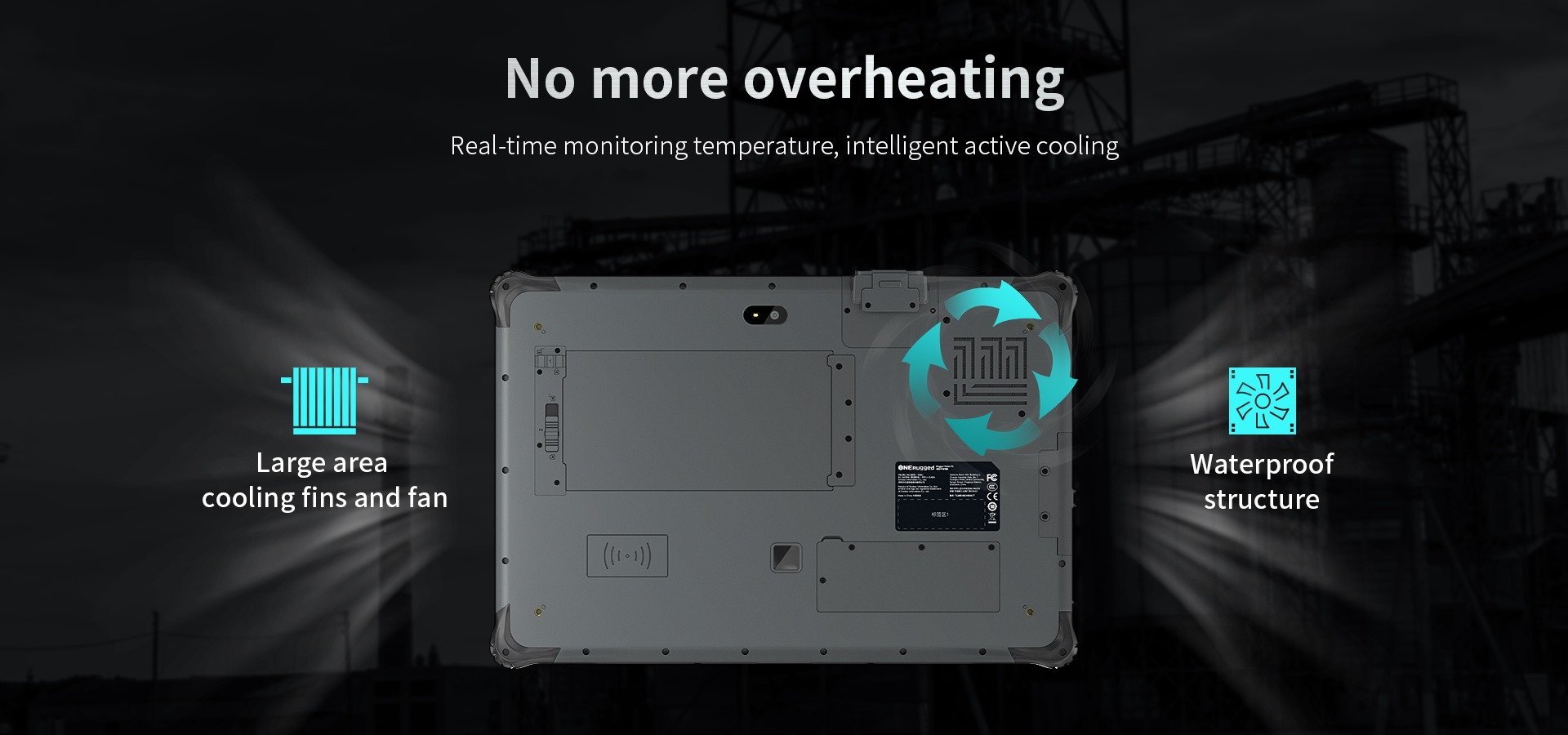

Active Waterproof Fan

Active quiet fan cooling system, big fan with heat pipe, strong heat dissipation

642fd66e6180e

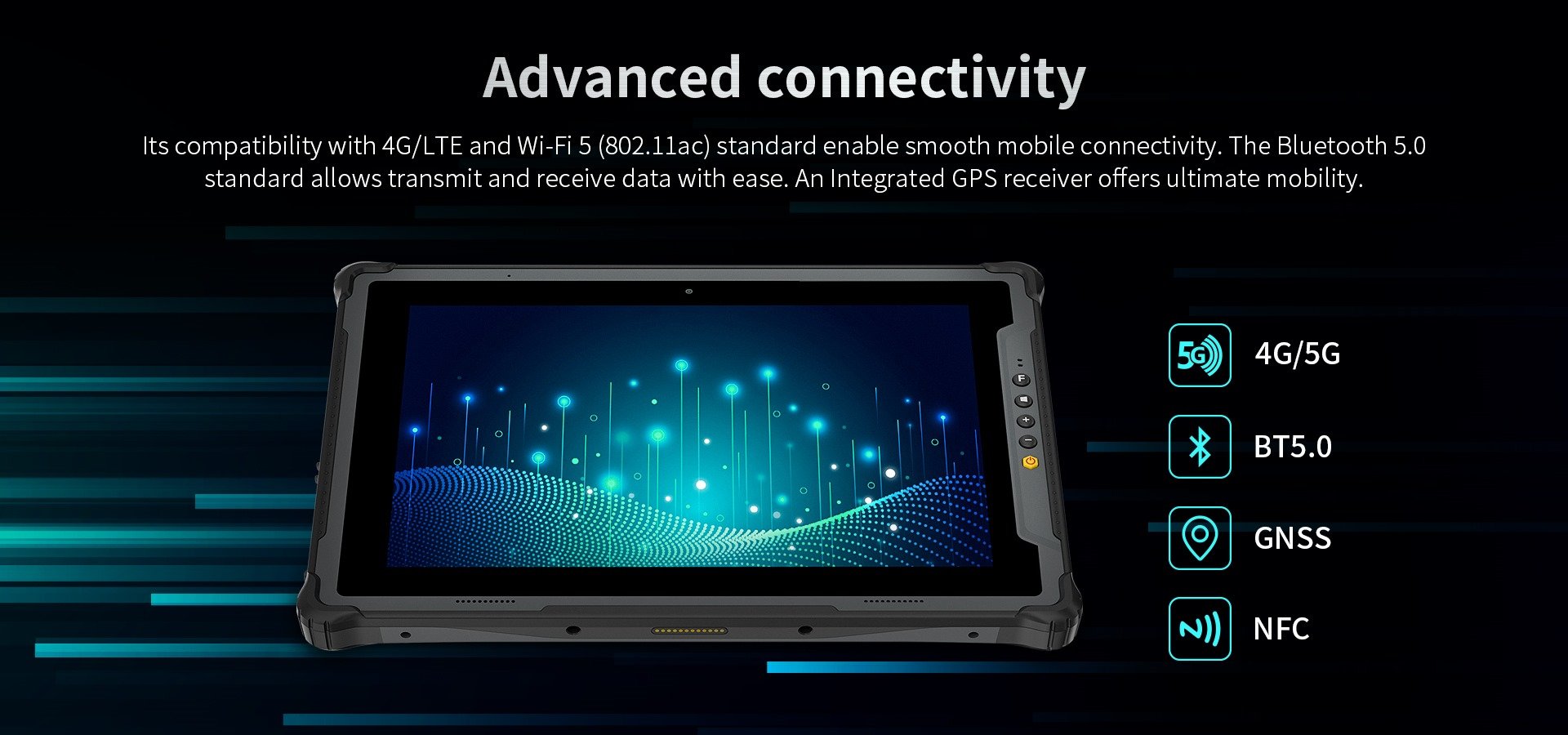

Multiple Connections

Support 802.11a/b/g/n/ac wireless transmission, 4G network, Bluetooth 5.0 and GPS

643a55c4bfbb1

Fingerprint Recognition

Press-type fingerprint recognition, lightly press to unlock, and log in to the operating system in seconds

64901674628a0

Robust Security

Passed multiple rigorous tests based on IP65 and MIL-STD-810H standards

646ed3a461622
646ed3b208c67
646ed3beeb631
646ed3cbdf8a9
646ed3d8b8727
646ed3e4aa266
646ed3f0538fc
646ed41f392a5

Dimensions

339.3×230.3×26mm

Weight

1500g

Product Color

black

Display

Size: 12.2 inch 16:10, Resolution: 1200*1920, Brightness: 650cd/㎡

Touch Panel

10 points capacity TP, G+G, Hardness over 7H, Scratch resistant, Support stylus

Ports

USB 3.0 *1

USB Type-C *1 (USB3.0/HDMI/Charging)

∮3.5mm Standard Earphone jack *1

HDMI Mini *1

SIM card slot *1, TF card slot *1

DC 19V3.42A *1

12Pin Pogo Pin *1

Optional: 100M Ethernet port *1/RS232 *1/USB 2.0 *1/QR code scanner (one out of four)

Processor

Intel® Celeron® Processor N5105

Operating System

Windows 11

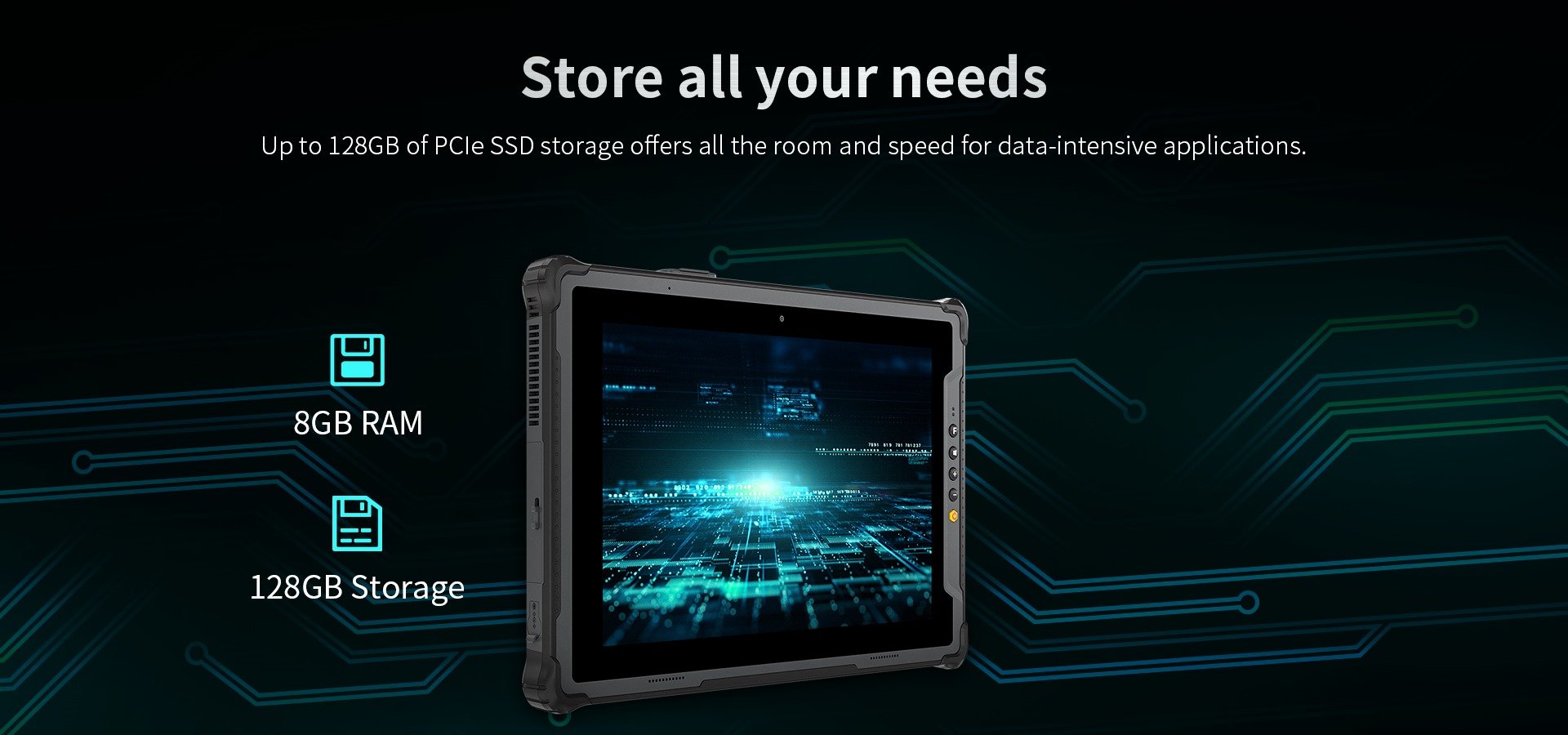

Memory+Storage

RAM: 8GB (DDR)

ROM: 128GB (SSD)

Camera

Front 500W

Rear 800W

Battery

Build in Lithium-ion polymer battery, 7.4V/700mAh

Removable Li-polyment Battery, 7.4V/6300mAh

Power

Adapter (Input AC 100V-240V 50Hz/60Hz, output DC 19V/3.42A)

Fan

IPX5 Fan *1

Data Collection (optional)

QR Code Scanner

Fingerprint

Support

WiFi

802.11 (a/b/g/n/ac), 2.4G+5.8G dual-frequency

WAN

4G, optional 5G

Bluetooth

Bluetooth 5.0

GNSS

GPS

NFC (optional)

Support

IP Ratings

IP65

Drop Resistance

1.22m drop

MIL-STD-810H

Temperature

Working temperature: -20 °C to 60 °C

Storage temperature: -30 °C to 70 °C

Standard

Hand-strap, Carry Handle, Adapter

Optional

Docking Charger, Vehicle Mount, Stylus, Removable Battery
