Overview

Performance to a new level

Introducing the V12R In-Vehicle PC, the next-generation performance powerhouse designed to meet the demands of modern vehicle applications. Powered by the RK3568 Quad-Core processor, this rugged PC is built to handle the most intensive tasks with ease. With the dual-system Android 12 + Linux operating system, you get the best of both worlds in terms of performance and flexibility. The 700 sunlight-readable screen ensures that you can easily view and interact with your data even in bright outdoor conditions. In addition, the V12R In-Vehicle PC comes equipped with Deutsch interface for seamless integration with your vehicle's systems. Communication options include CAN, RS232, RS485, and Ethernet, giving you a wide range of connection possibilities. For added convenience, the V12R features 4 signal inputs for cameras, allowing you to easily set up a comprehensive surveillance system. With its rugged construction and cutting-edge features, the V12R In-Vehicle PC is the perfect choice for those looking for top-of-the-line performance in their vehicles.

2
3
4
5
6
7
8
9
Appearance

Dimensions:

282*181*31mm

Weight:

TBD

Product Color:

Black

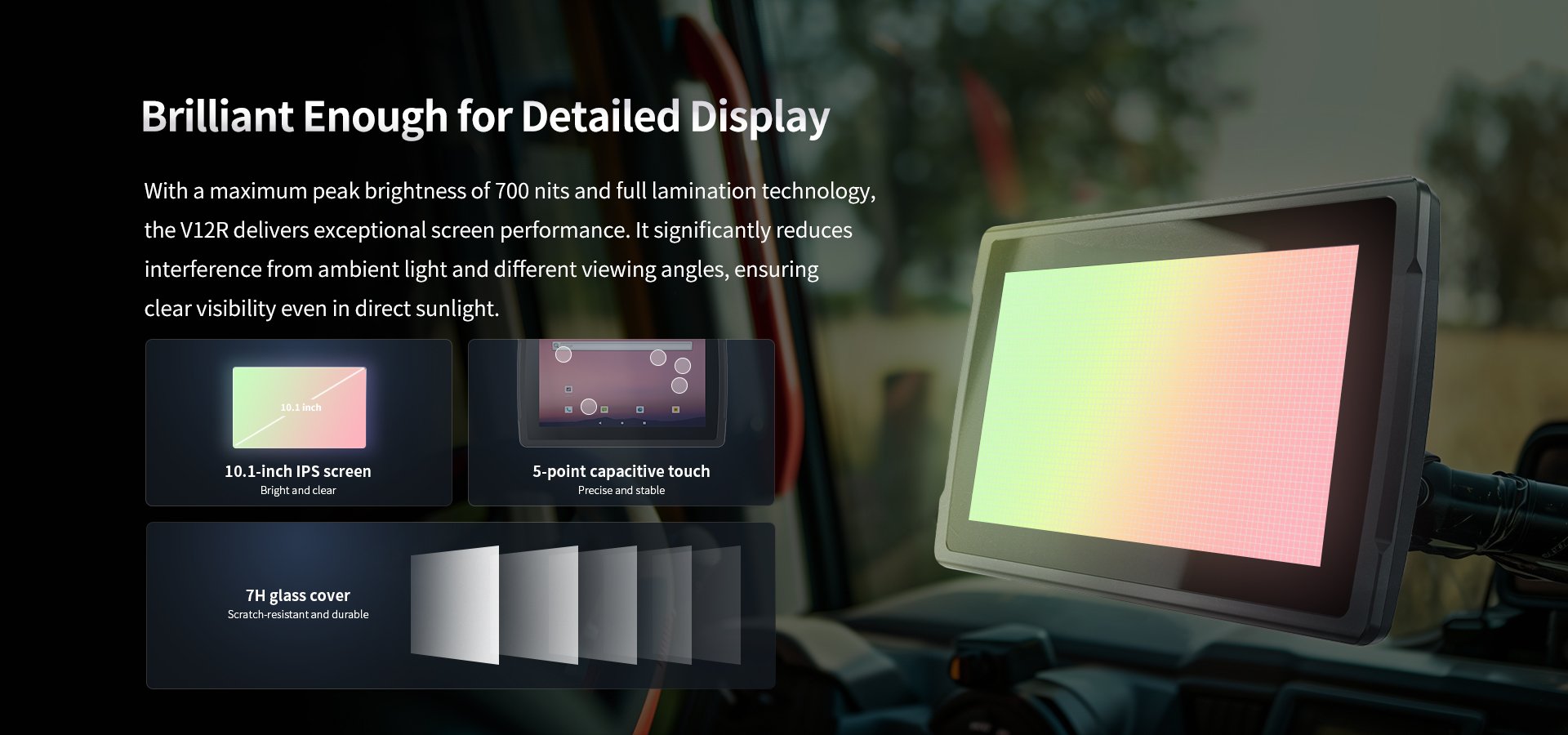

Display:

Type: HD Size: 10.1-inch 16:10 Resolution: 1280*800 IPS Brightness: 700cd/㎡

Touch Panel

Asahi Glass Cover, 5-Point Capacitive Screen, Hardness of 7H

Ports:

Standard USB-A Port / Data Transfer
USB 2.0*1, USB-A Port, HOST Data Transfer

Video Input
AHD*4 GX12 4-pin connector * 4

26-PIN Deutsch Interfaces (Optional in the Solution)

TF Card Slot
MICRO-SIM x 1

SIM Card Slot
MICRO-SIM x 1

Buttons:

Power *1
Customizable *1 (F1 Key)
Customizable *1 (F2 Key)

Performance

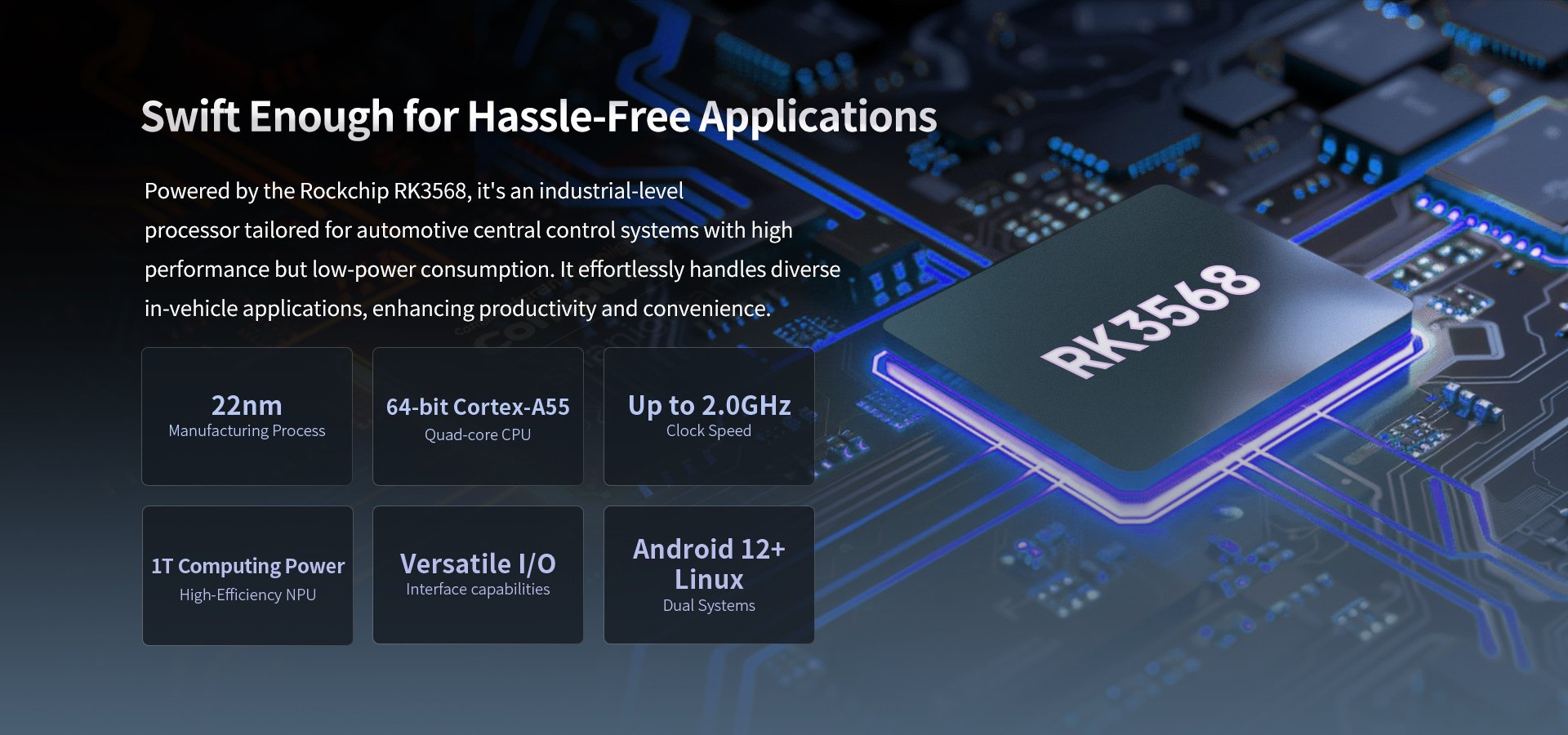

Processor

Standard RK3568, Quad-Core 64-bit Cortex-A55 Processor, with a maximum frequency of up to 2.0GHz.

Operating System

Android 12 + Linux Dual-System

Memory+Storage

RAM: 8GB

ROM: 128GB - optional 256GB

Power

6-36V (DC input, supports ignition detection)

Supports delayed power on/off switch

RTC

Built-in 2032 RTC dry battery

Wireless

WiFi

Band: WIFI 802.11(a/b/g/n/ac)
Frequency: 2.4G+5.0G (5.1G+5.8G) Dual-band WIFI
Others: Supports AP seamless roaming

Bluetooth

BT 5.0 isochronous channels feature▪ BLE_125K -104 dBm

4G

LTE Cat 4
WCDMA:B1+5+8
TDD:B38+40+41
FDD:B1+3+5+7+8+20+28

GPS

Supports GPS (L1 1.575GHz C/A code), BeiDou (B1 1.561GHz), GLONASS (L1 1.602GHz)

Ruggedness

IP Ratings

IP67

Vibration Resistance

MIL-STD-810H

Temperature

Working temperature: -20 °C to 60 °C

Storage temperature: -30 °C to 85 °C



Functional Modules

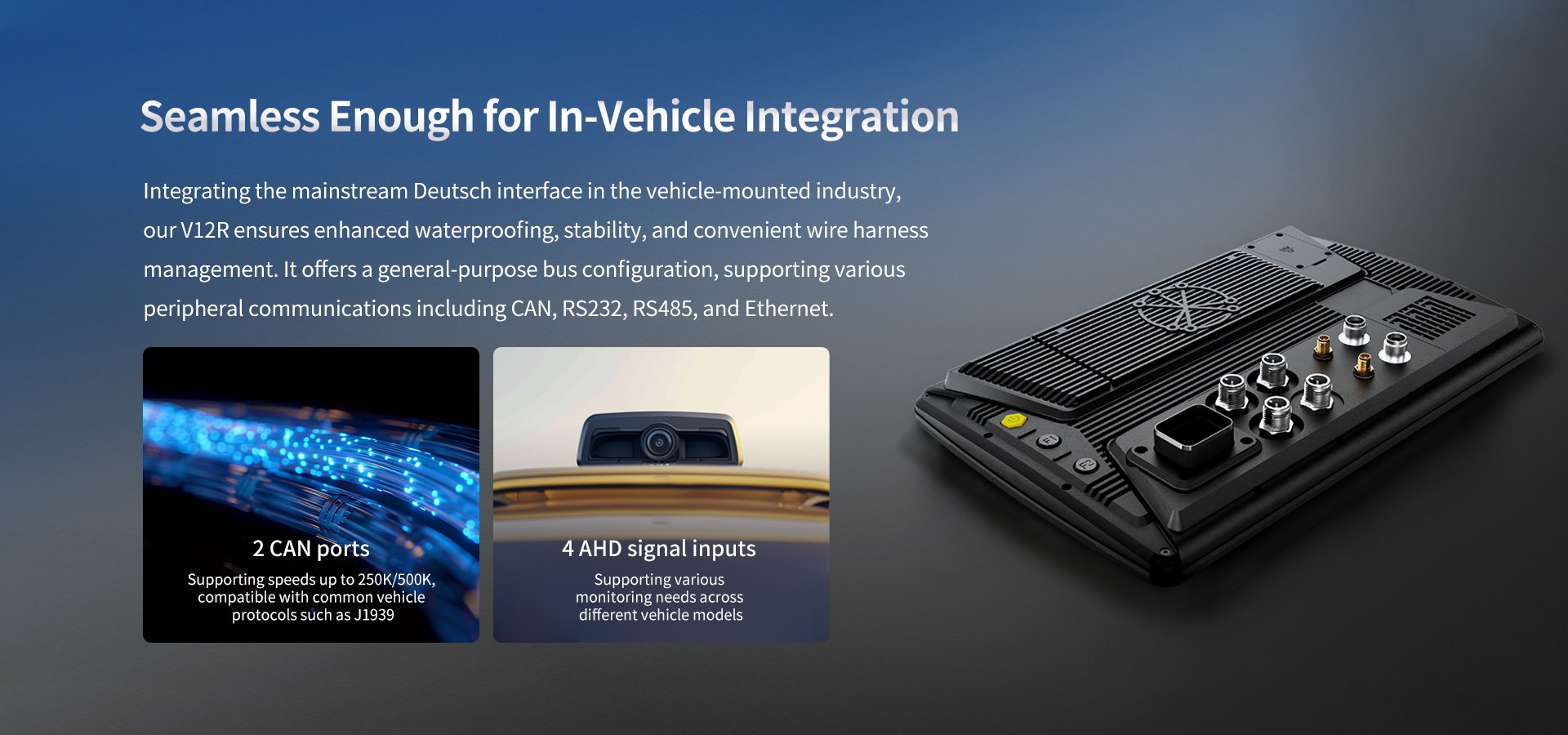

CAN

Supports 2 CAN channels
Supports 250K/500K CAN
Supports common agricultural machinery, engineering vehicle protocols such as J1939

RTK High Rrecision Locating (UM982) (Optional)

Dual-antenna positioning and orientation
Dual-antenna mode supports BDS B1I/B2I/B3I, GPS L1/L2/L5, GLONASS G1/G2, Galileo E1/
E5a/E5b, QZSS L1/L2/L5, SBAS

AHD Multi-Channel Cameras

Supports up to 4 AHD cameras

Accessories

Standard

TBC

Optional

26-PIN Deutsch Interface Functional Bus (Customized according to the solution)

Bracket RAM 38*30mm ball head

ACC Power Cable

DC Conversion Cable

Power Adapter 12V4A DC φ4.0 adapter

GPS Vehicle Mushroom Antenna
Active GPS mushroom antenna, 3-meter cable, gain of 28dBi±2dBi

4G External Suction Cup Antenna

Data Radio External Suction Cup Antenna


RTK Mushroom Antenna (TNC Connector)
