Overview

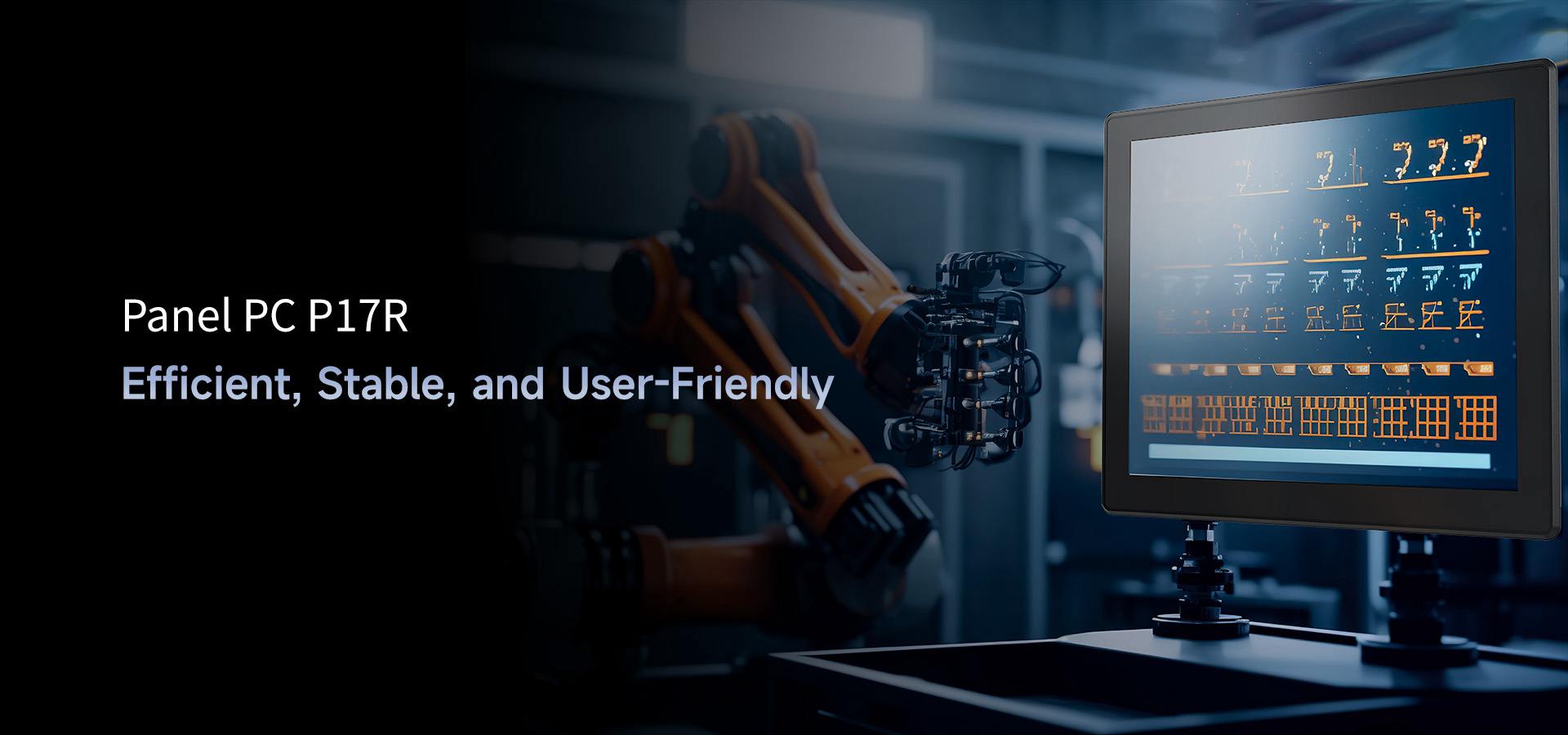

Panel PC P17R, Efficient, Stable, and User-Friendly
Powered by the RK3568 industrial-grade ARM processor, the P17R is designed for demanding industrial applications. With a robust performance and improved energy efficiency, it meets the specific needs of various use cases. When paired with Android 12, it offers an open, user-friendly environment for an enhanced user experience.
CPU
Quad-core RK3568 industrial-grade ARM processor
Operating System
Android 12
Multiple Networking
Wi-Fi 5, BT 5.0; Supports 4G network connectivity. Multiple interfaces options: USB, RS232, RJ45, HDMI, and audio ports
7×24 Operation
Industrial design, using large-area uniform heating fin, running 24/7 without affecting reliability and service life

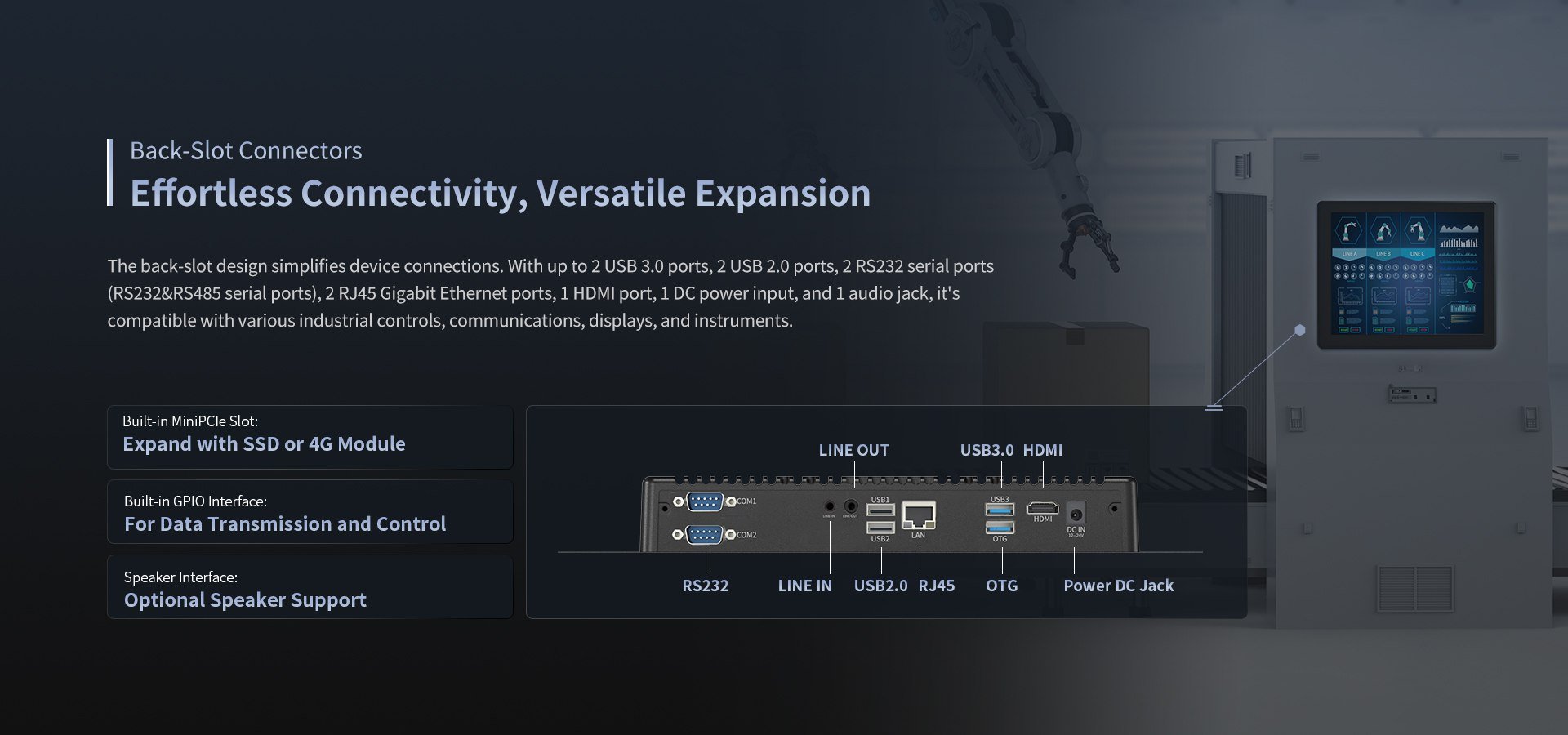

Rich I/O Interfaces
Multiple interfaces: USB, RS232, RJ45, HDMI, and audio ports
Wide Temperature and Voltage Range
Wide voltage and temperature design, can operate normally even under external voltage fluctuations or in extremely hot or cold conditions

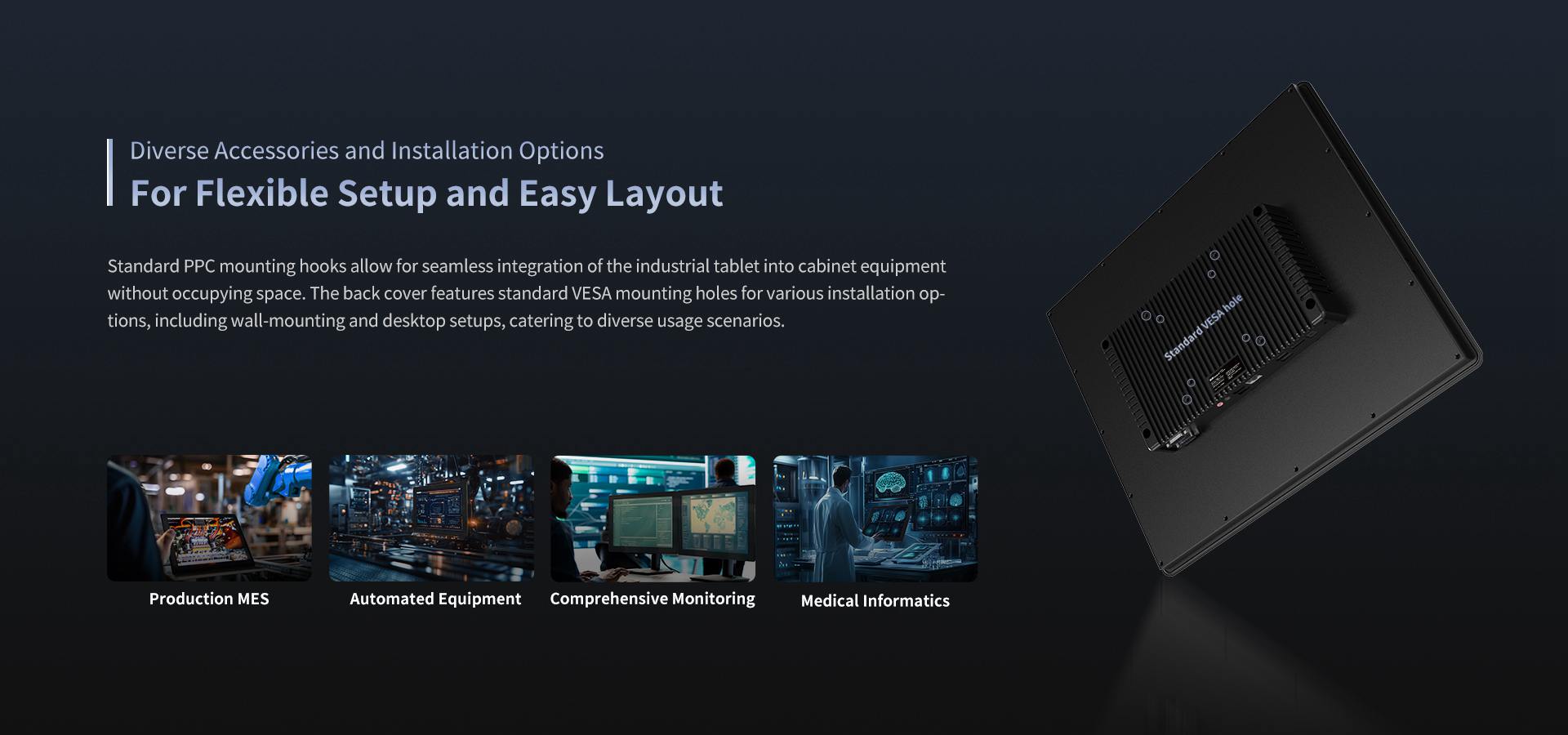

Easy to Install

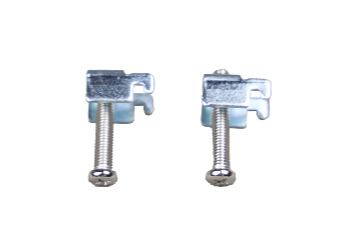

Standard PPC mounting hook component, easy to install and supports various installation methods such as embedded and wall-mounted
Tech Specs
(*Please be aware all technical data, specification and performance figures subject to change without notice.)
401*332*57 mm
TBD
Black
Size: 17-inch 4:3 Resolution: 1280*1024 Brightness: 500 cd/㎡
10 PCAP
Standard USB-A: USB3.0 *1 USB3.0 *1 OTG+USB2.0 *2
Power interface: DC IN 12V-24V Power connector *1"
∮3.5mm Standard Earphone Jack *1
RJ45 *1 (10M/100M/1000M adaptive)
DB9 PORT RS232 *2
HDMI *1
Quad-core RK3568 industrial-grade ARM processor
Android 12
RAM 4GB onboard ROM 64GB
AC100V to 240V, 50Hz/60Hz output DC 12V/4A
2.4G+5.8G dual band WIFI, BT 5.0

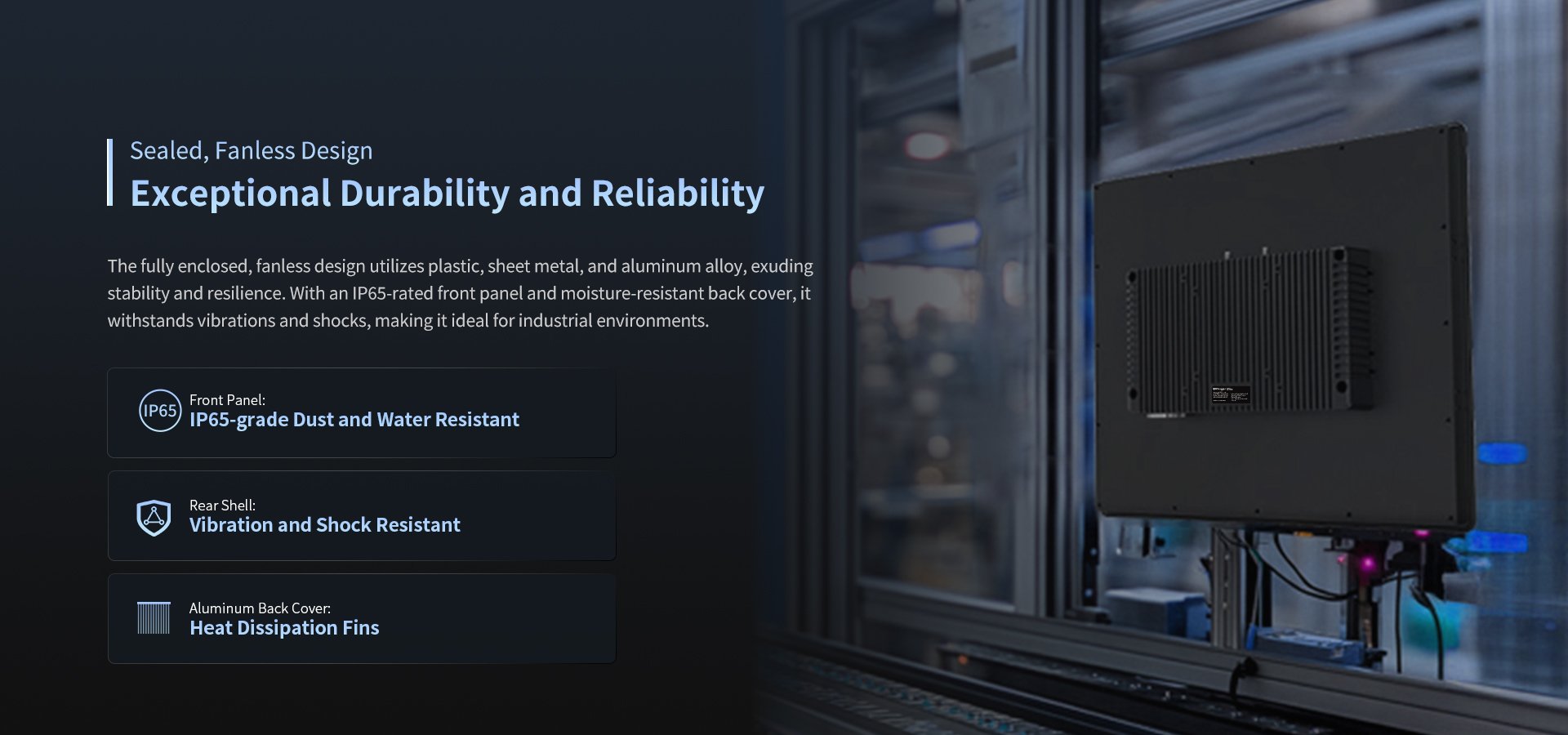

Front panel IP65
Working temperature: -30 °C to 70 °C
Storage temperature: -30 °C to 70 °C
Humidity: 95% Non-Condensing

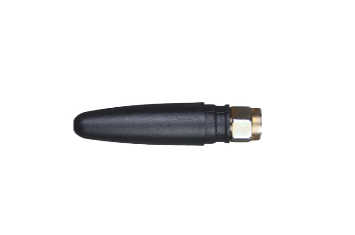

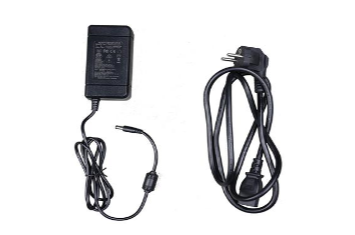

Adapter, PPC hook assembly, WiFi antenna
