Overview

Solid and Practical, Professional and Efficient

Rugged tablet M10T is a solid, practical, professional and efficient 10.1-inch cost-effective rugged mobile pc, adopting the ARM octa-core processor and Android 12 operating system, and equipped with high-definition and high-brightness screen, detachable large-capacity battery, 4G/dual-band WiFi/Bluetooth 5.1 communication, GPS+Glonass dual-mode positioning, front and rear cameras, 2D barcode scanning engine (optional), NFC module (optional), rich interfaces, IP65 dustproof and waterproof, MIL-STD-810H, and many other configurations and functions, which can be applied to rich application scenarios such as industrial, transportation, energy, manufacturing, and public utilities.

642fd65ab82c4

Octa-core Processor

Equipped with the latest Android 12 operating system and ARM architecture octa-core processor

642fd65f12359

Excellent Readability

10.1-inch HD/FHD high-definition screen with 1000nits high brightness, supports 10-point capacitive touch

642fd662c2fe9

Long-lasting Stability

3.8V/10000mAh removable massive battery offers long-lasting endurance

642fd66623735

Dual-band WiFi 6

Integrated 2.4GHz+5.8GHz dual-band WiFi 5

642fd66b123e6

Communication Modules

Built-in 4G and Bluetooth 5.1 communication modules, capable of multi-satellite running with GPS/Glonass

642fd66e6180e

Data Collection

Optional 2D Barcode Scan Engine and Standard NFC reader

643a55c4bfbb1

Rich interfaces

Standard USB 2.0, Type-C

64901674628a0

Tough and Robust

Endured MIL-STD-810H ruggedness testing and rated IP65

657127db369df
646ef3d095fcc
646ef3db6a88a
657128183e9dd
65712830c3608
646ef40383125

Dimensions

274.9×188.7×22.2mm

Weight

1020g

Product Color

Blue-gray

Display

Size: 10.1 inch 16:10, Resolution: 800*1280 (Optional 1920*1200), Brightness: 1000cd/㎡ or 700cd/㎡

Touch Panel

10 points tempered glass Capacitive screen, G+G, hardness 7H (Optional Gloves touch)

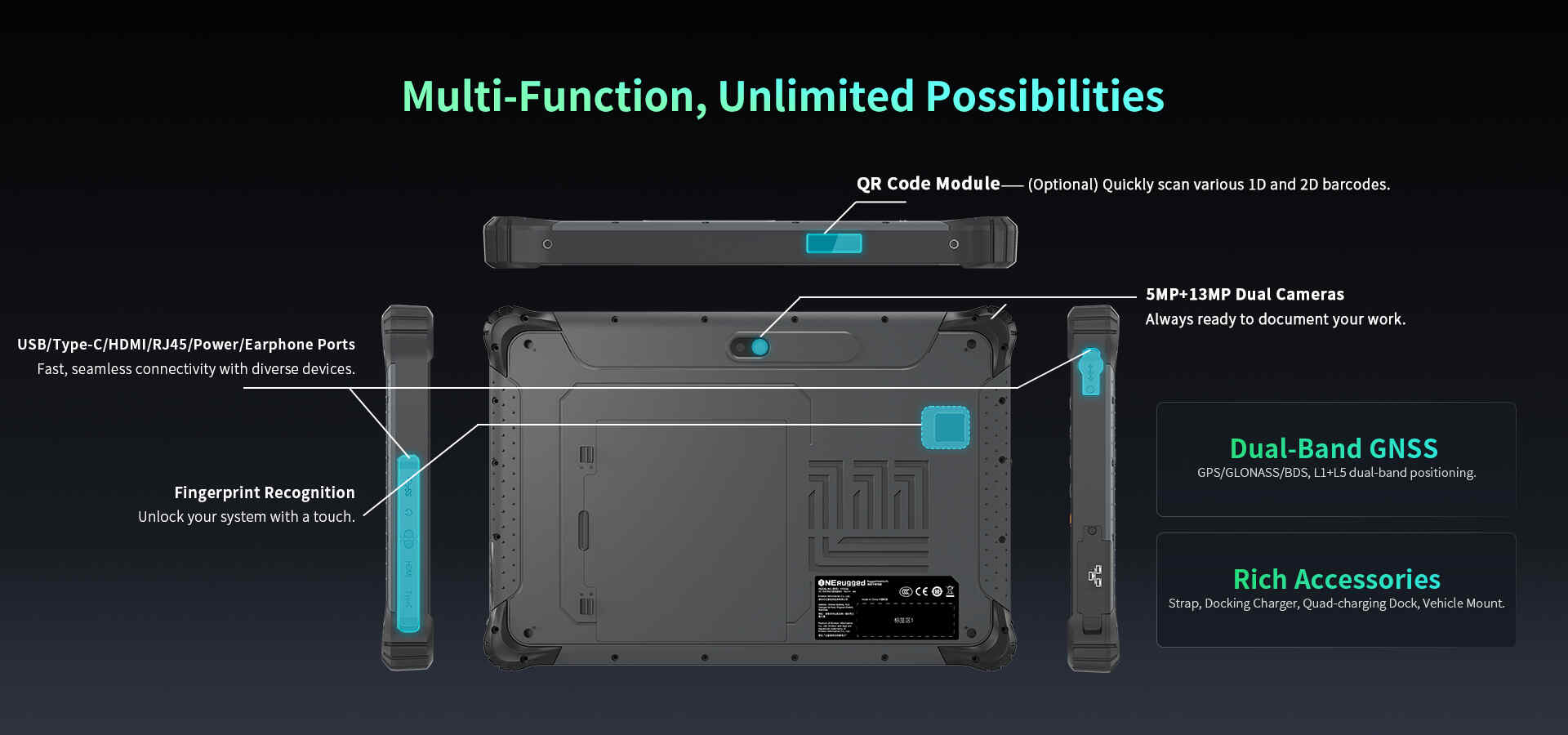

Ports

USB 2.0 *1

USB Type-C *1 (Data & Charging)

∮3.5mm Standard Earphone jack *1



SD card slot *1, Nano card slot *2 (2 out of 3)

DC 5V3A *1

12Pin Pogo Pin *1

Processor

ARM Octa-Core Processor

Operating System

Android 13

Memory+Storage

RAM: 8GB (LPDDR4x)

ROM: 128GB (EMMC)

Camera

Front 5.0MP

Rear 13.0MP, support autofocus, with flashlight

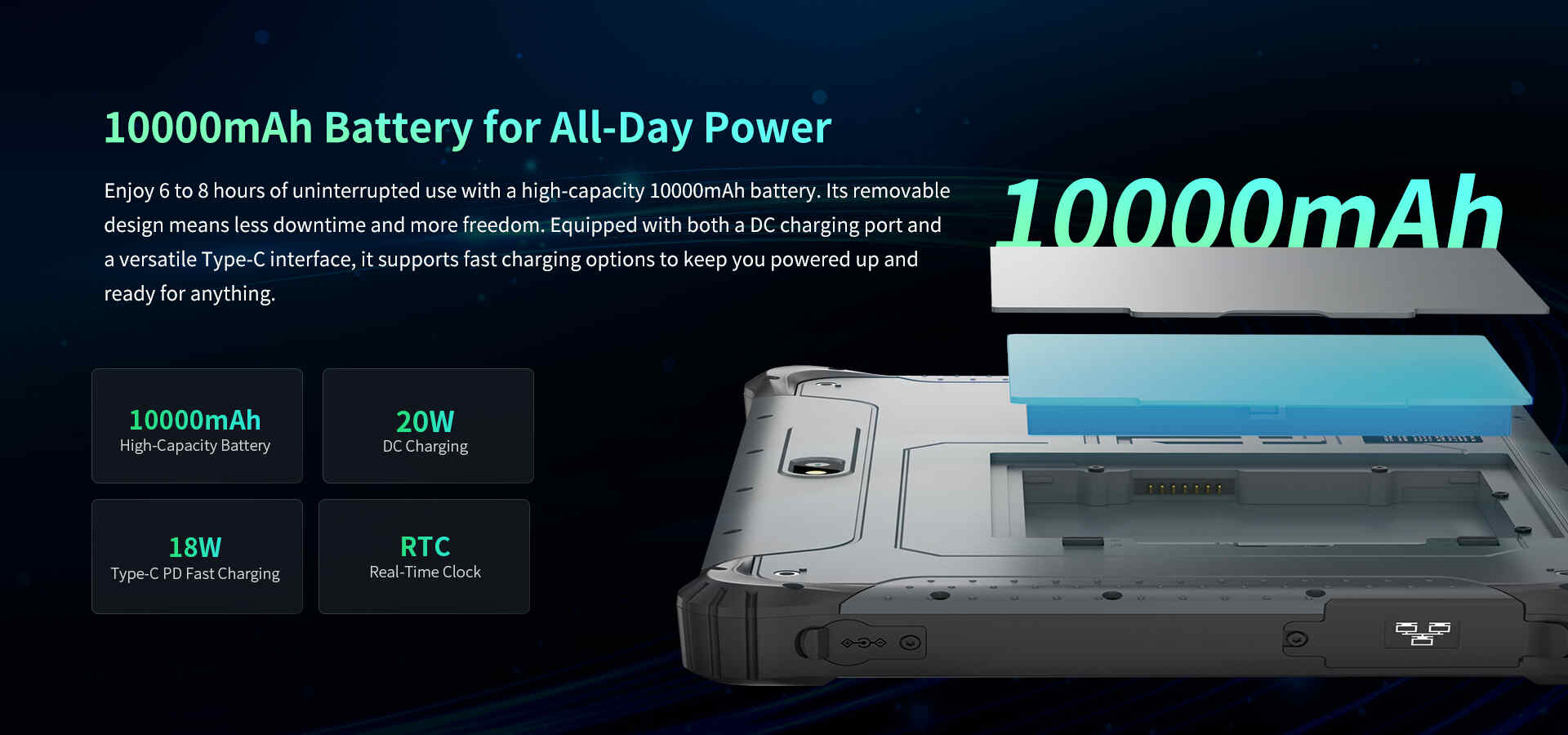

Battery

Removable Lithium-ion polymer battery, 3.8V/10000mAh

RTC Battery

Built-in RTC battery

Power

18W fast charge adapter (Input AC 100V~240V 50Hz/60Hz, output DC 5V/3A 9V/2A 12V/1.5A)

Data Collection (Optional)

2D code scanner

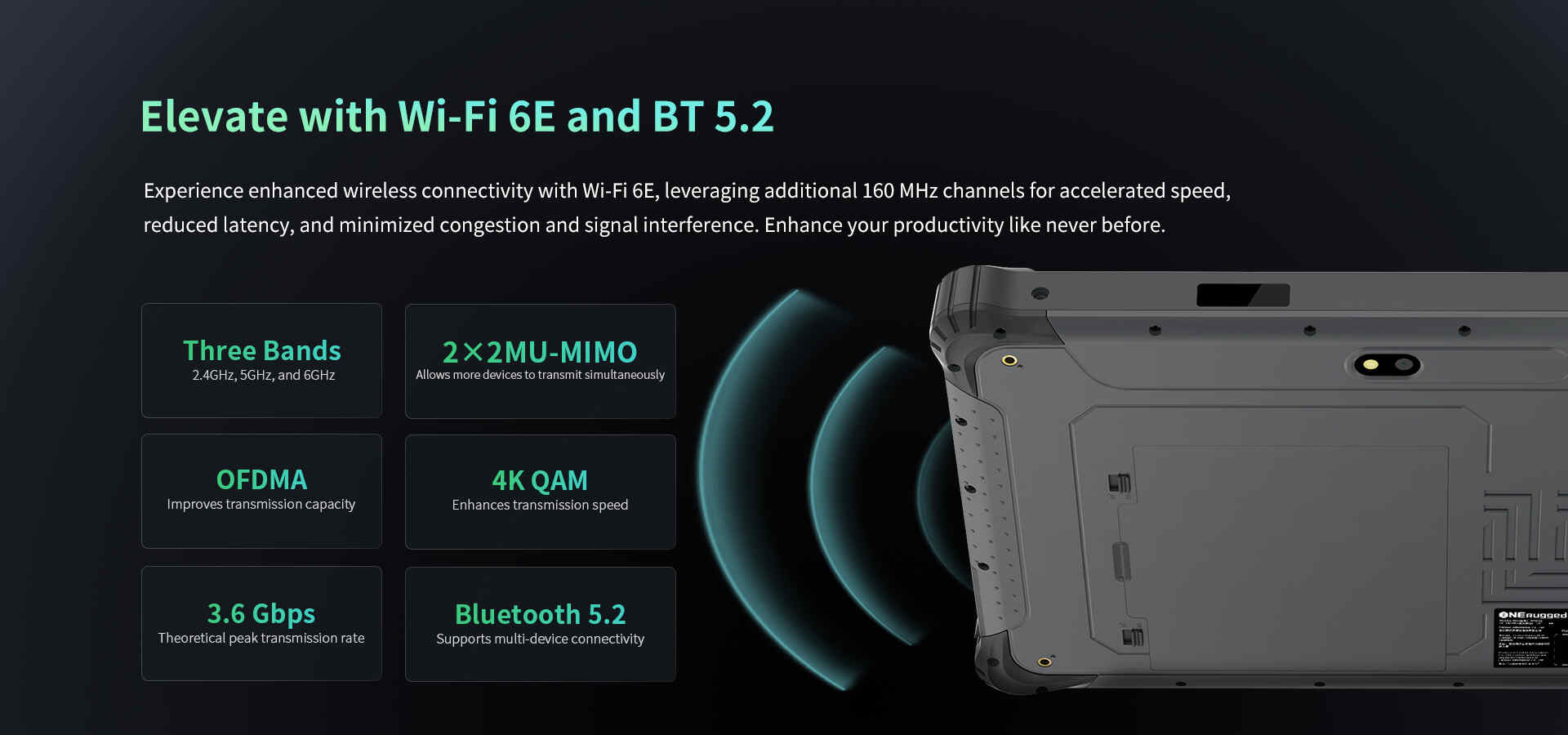

WiFi

802.11 (a/b/g/n/ac/ax), 2.4G+5.8G dual-frequency

WAN

2G/3G/4G

Bluetooth

Bluetooth 5.2

GNSS

GPS+GLONASS

NFC (optional)

Support

IP Ratings

IP65

Drop Resistance

1.22m drop

MIL-STD-810H

Temperature

Working temperature: -20 °C to 60 °C

Storage temperature: -30 °C to 70 °C

Standard

Hand-strap, Adapter

Optional

Docking Charger, Vehicle Mount
