Overview
Rugged AI PC
The M14M is designed to revolutionise mobile computing with the Intel® Core™ Ultra processor, featuring innovative triple AI engines (CPU, GPU, and NPU) for enhanced AI-powered performance. Equipped with 16GB of memory and 256GB of storage, with dual slots for upgrades, it efficiently handles local AI applications and computational tasks. A 14-inch high-brightness HD screen ensures clarity in any environment, while the rugged design, including a rotating handle, meets IP65 and MIL-STD-810H standards for durability. The Thunderbolt 4 interface, along with additional ports, offers seamless connectivity. Its dual-battery system (53.58Wh + 14.4Wh) and advanced optimisation provide extended operation for demanding workflows. The M14M is the perfect solution for global industries requiring high performance and resilience.
Al-Powered Performance
All-new Intel® Core™ Ultra processor, Windows 11 OS, support for computational needs
Innovative Triple Al Engines
The newly added NPU Dedicated AI acceleration engine efficiently runs local AI applications

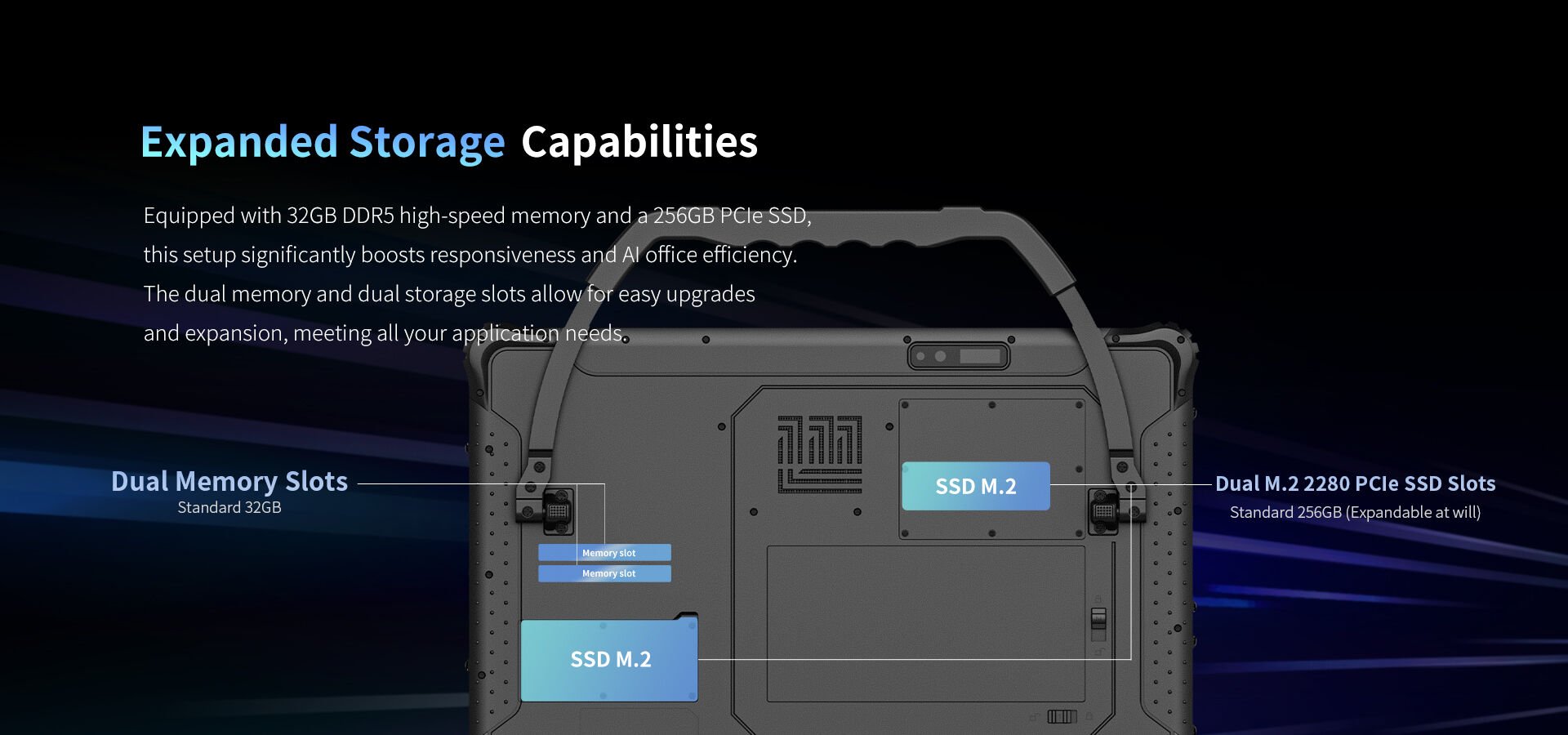

Expanded Storage Capabilities
Standard 16+256GB Dual memory and dual storage slots, allowing for easy upgrades and expansion

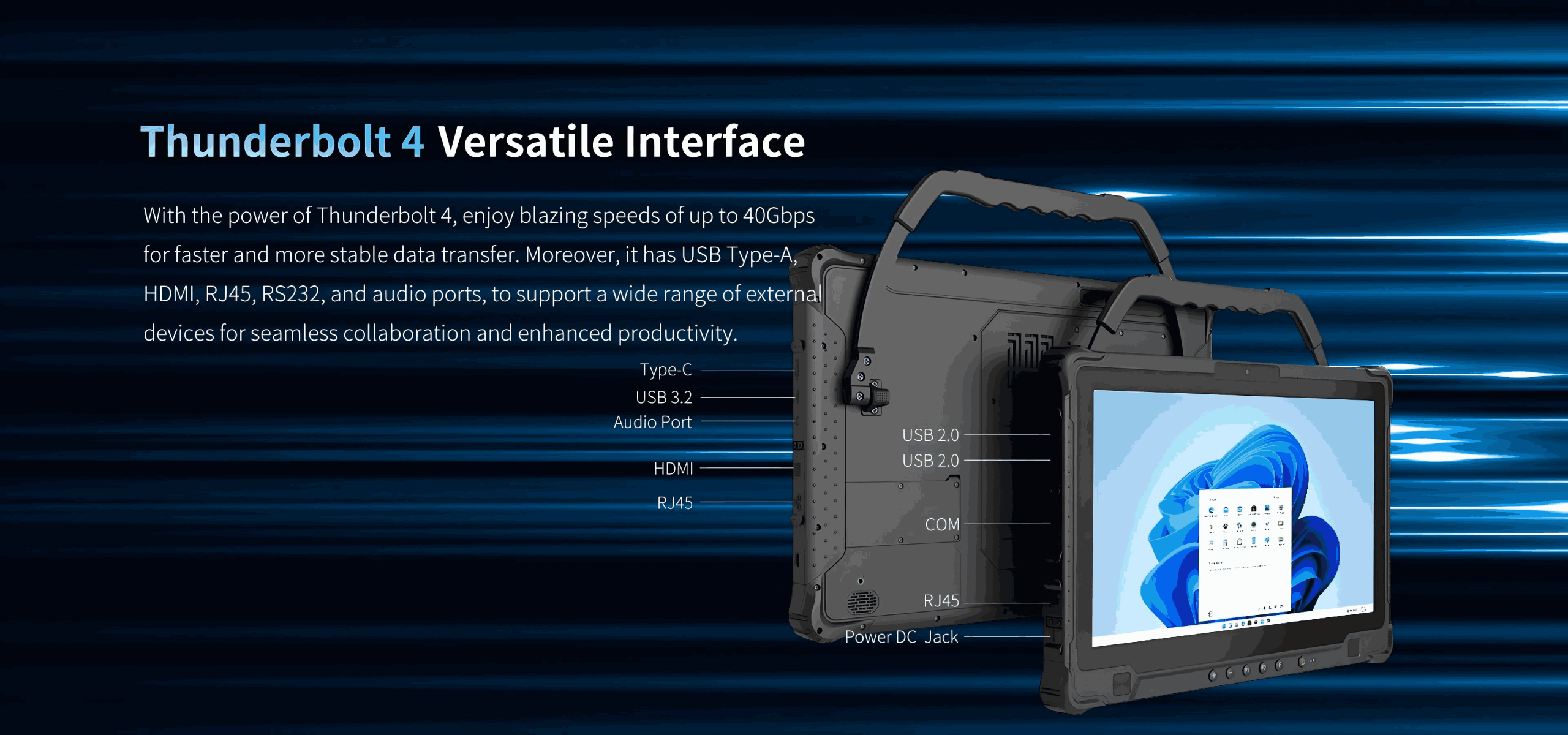

Thunderbolt 4 Versatile Interface
Thunderbolt 4 Versatile Interface, USB, HDMI, RJ45, RS232, etc;

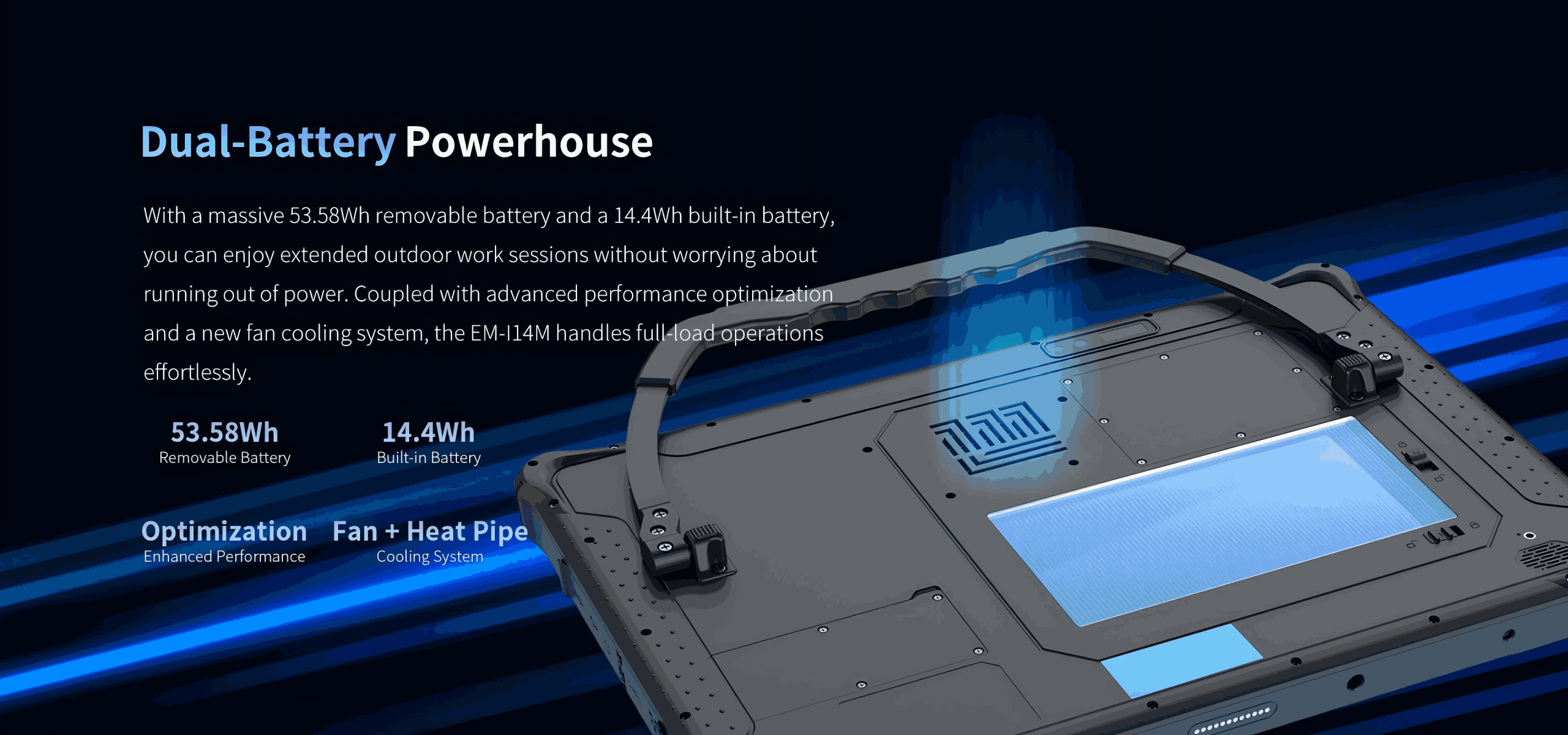

Dual-Battery Powerhouse
53.58Wh+14.4Wh dual battery with advanced performance optimisation handling full-load operations effortlessly

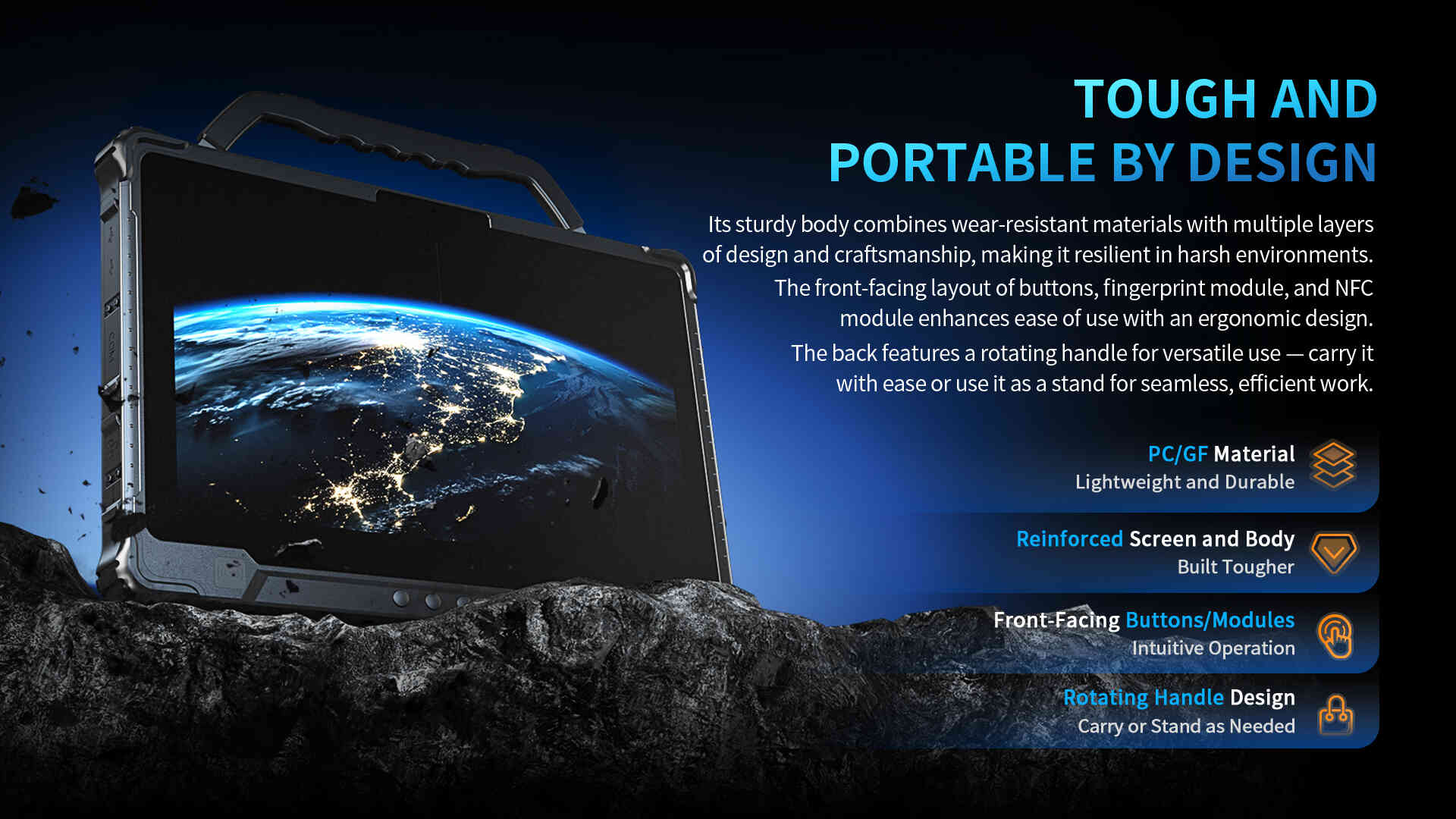

Tough and Portable by Design
The back features a rotating handle, IP65 & MIL-STD-810H Certified
Dimensions
366.2mmx246.9mmx24.8mm
Weight
TBD
Product Color
Black

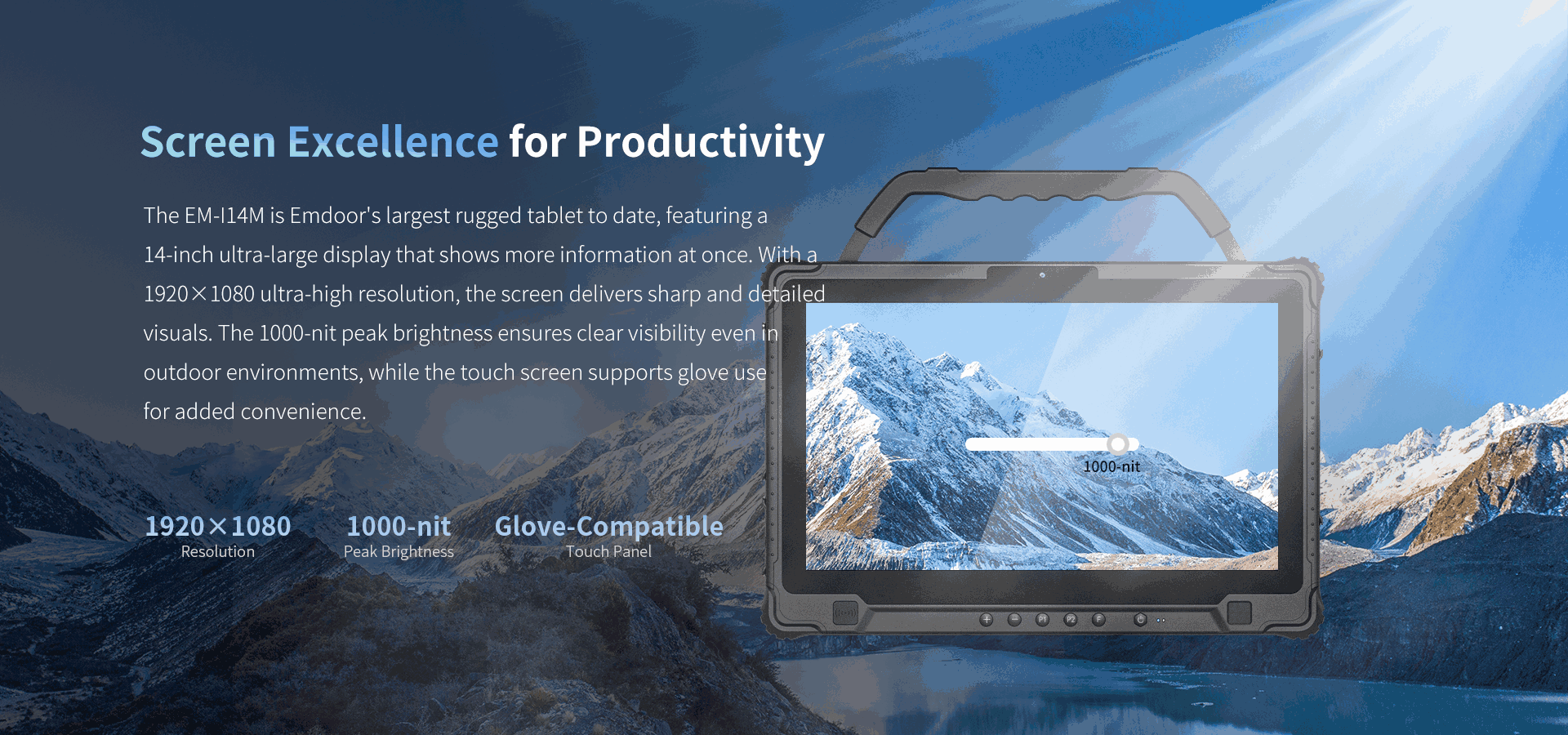

Display
Size: 14-inch 16:9
Resolution: 1920*1080
Brightness: 1000cd/㎡
Touch Panel
10-Point Capacitive Screen, G+G; Hardness above 7H; Scratch-resistant; Supports glove touch
I/O Ports
USB3.2 *1，USB2.0 *2
TYPE-C
∮3.5mm Standard Earphone Jack *1
RJ45 *2 (10M/100M/1000M adaptive)
RS232 *2
HDMI *1
12PIN Pogo Pin
DC19V/3.78A ∮5.5mm power interface *1
Processor
Intel® Core™ Ultra
Operating System
Windows 11 PRO
Memory+Storage
RAM：16GB (Optional: 32GB DDR5)
ROM：256GB SSD（Optional 512GB）
Adapter
AC100~240V, 19V/3.78A 71.82W output AUStandard
Camera
Front 5.0MP (USB)
Rear 8.0MP (USB)
Battery
1300mah/11.1V (14.4WH)
4700mah/11.4V（53.58WH）
Sensor
G-Sensor
Fingerprint
Built in, used for power-on login.
WiFi
WIFI6
WAN
4G(Optional M.2 European standard)
5G (optional)
Bluetooth
BT5.1
GPS
Supports single GPS or single Glonass, default GPS
IP Ratings
IP65
Drop Resistance
1.22m drop
MIL-STD-810H
Temperature
Working temperature: -20 °C to 60 °C
Storage temperature: -30 °C to 70 °C
Standard
DC19V/3.78A adapter
Removable Battery (Optional)
