Overview

Solid and Practical, Professional and Efficient

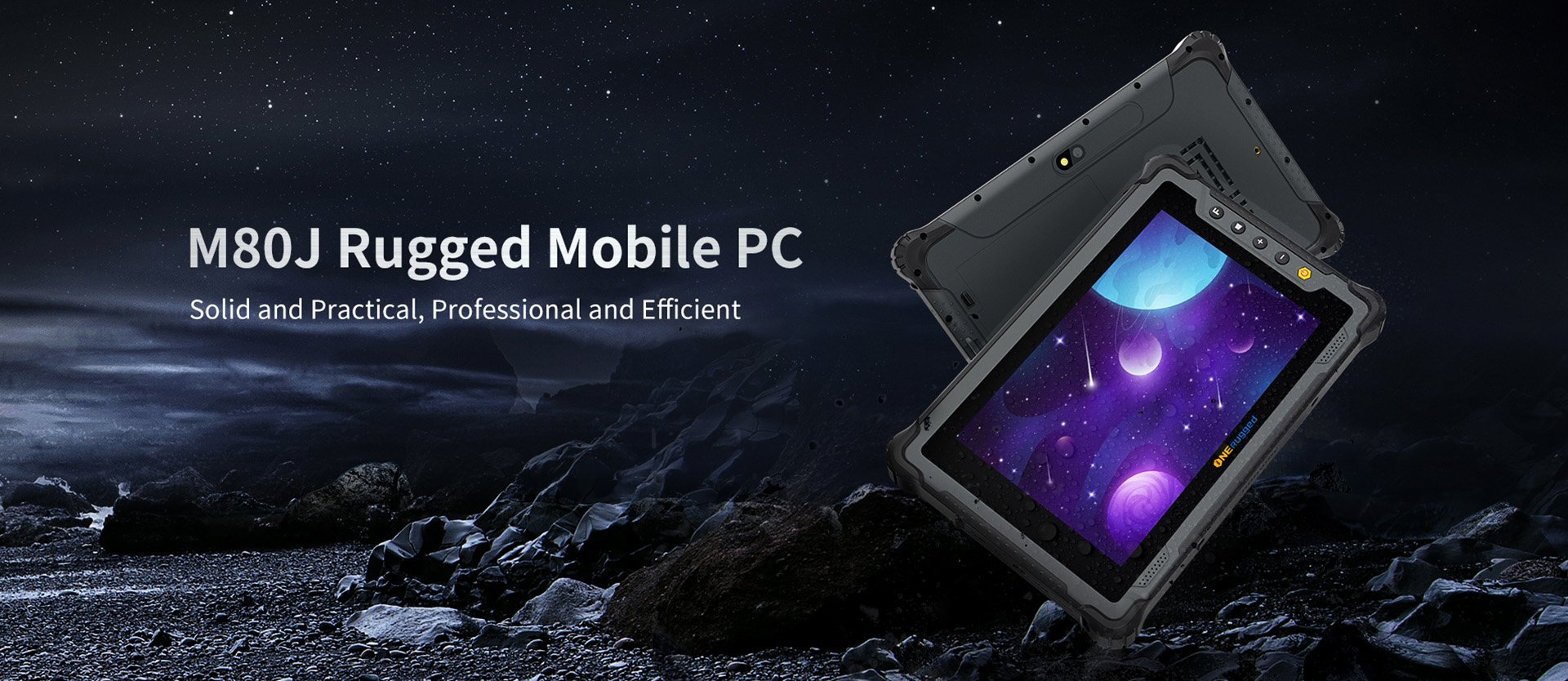

M80J is a solid, practical, professional and efficient 8-inch cost-effective rugged mobile pc, adopting the Intel Celeron quad-core processor N5100 and Windows 10 operating system, and equipped with high-definition and high-brightness screen, detachable large-capacity battery, 4G/dual-band WiFi/Bluetooth 5.0 communication, GPS+Glonass+Beidou multi-mode positioning, front and rear cameras, 2D barcode scanning engine (optional), NFC module (optional), rich expansion interfaces, IP65 dustproof and waterproof, MIL-STD-810H, and many other configurations and functions, which can be applied to rich application scenarios such as industrial, transportation, energy, manufacturing, and public utilities.

642fd65ab82c4

Outstanding Performance

With the Quad-core Intel JASPER LAKE N5100 processor and Windows 10 operating system, M80J presents an outstanding performance

642fd65f12359

Productivity Display

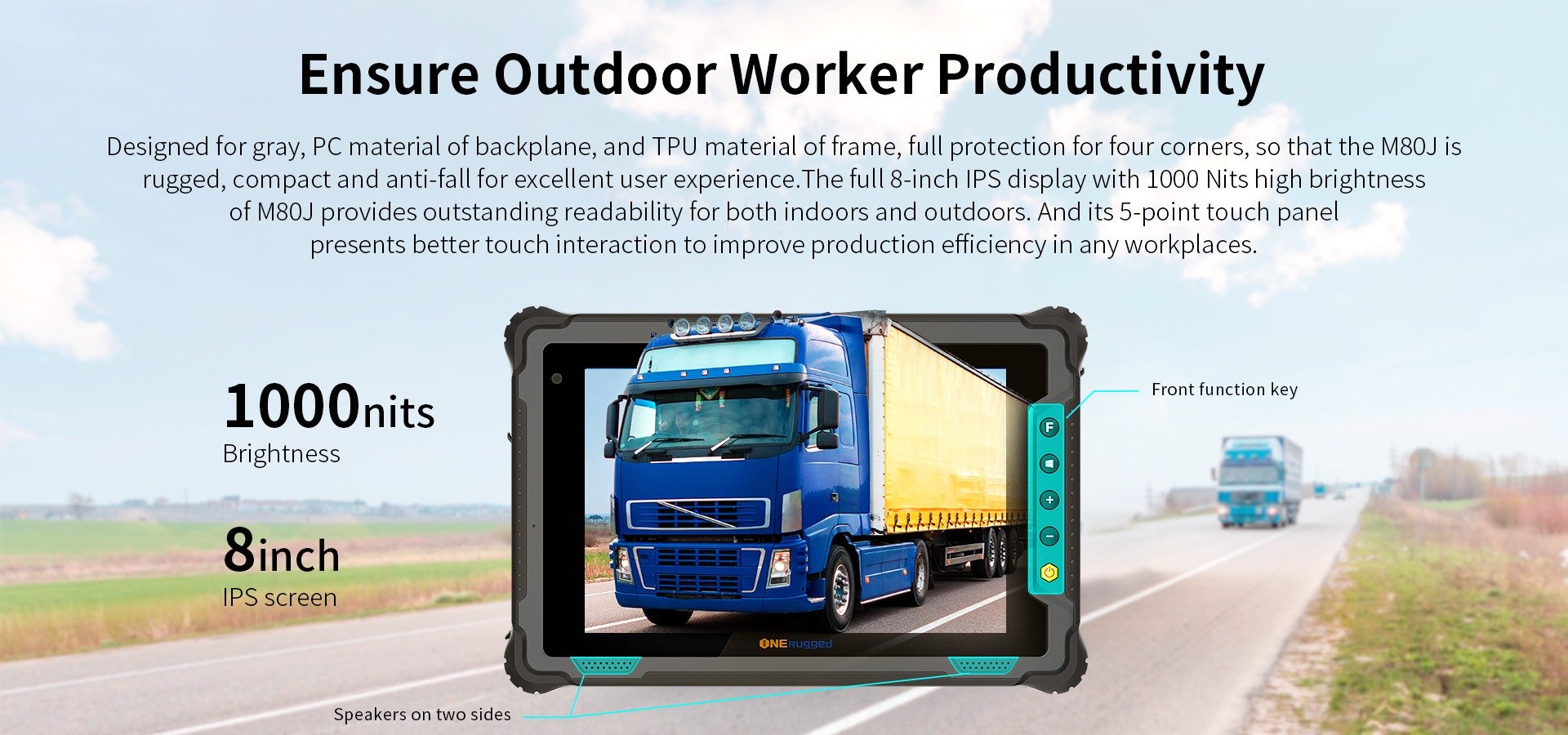

Full 8-inch IPS display with 1000-Nits high brightness, and a 5-point touch panel, providing excellent readability for both indoors and outdoors

642fd662c2fe9

Long-lasting Stability

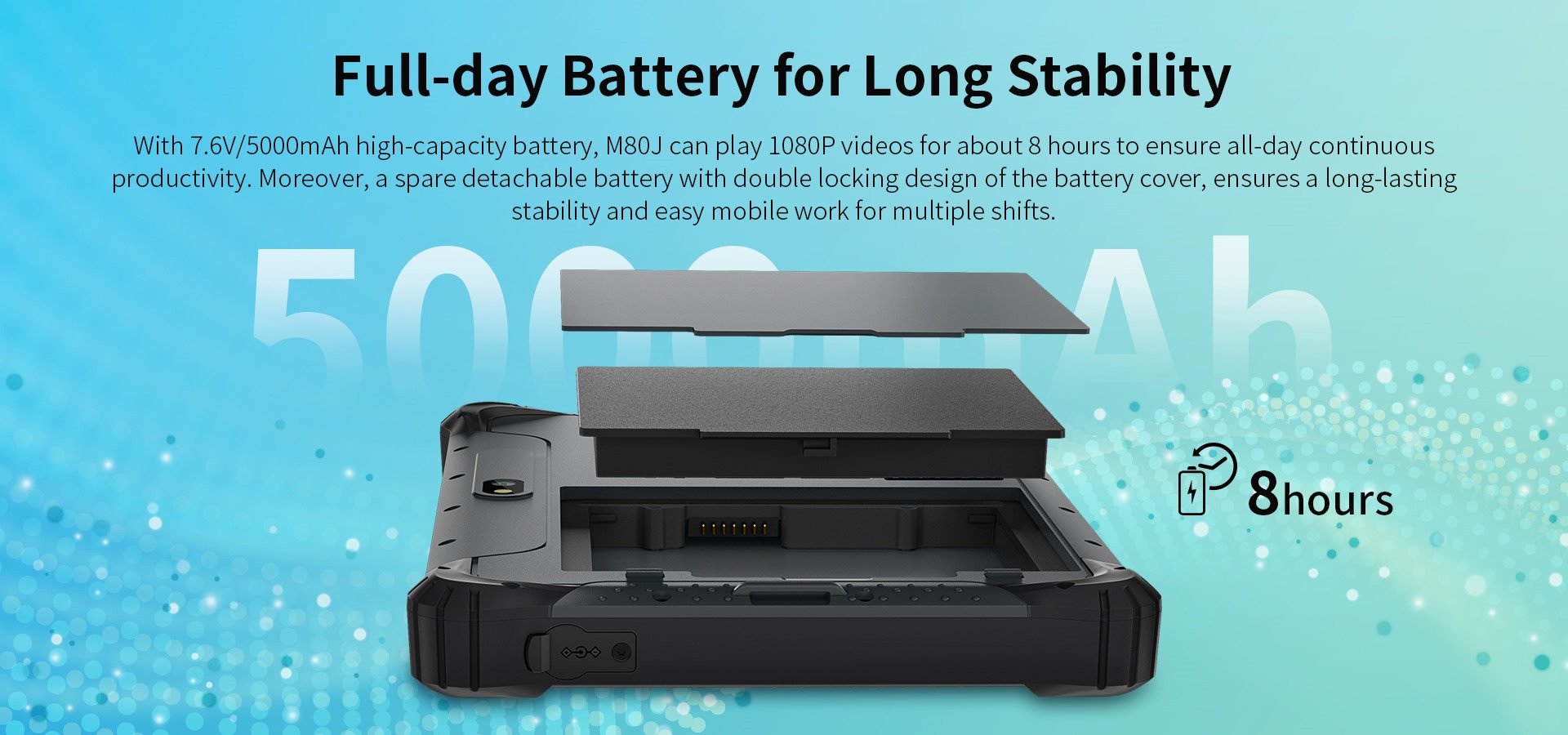

Couple with 7.6V/5000mAh high-capacity detachable battery, M80J ensures a long-lasting stability and easy mobile work for multiple shifts

642fd66623735

Dual-band WiFi

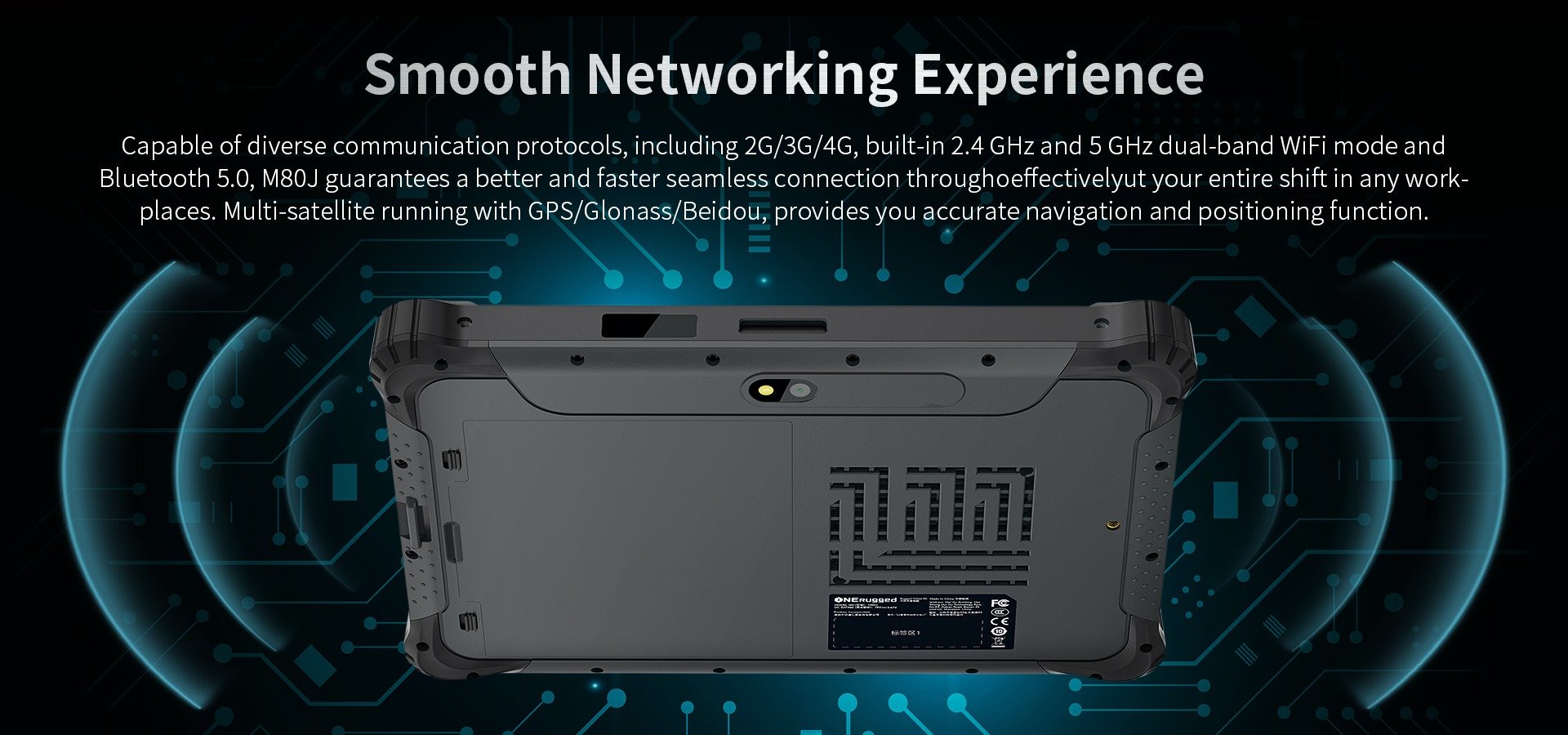

Built-in 2.4GHz and 5GHz dual-band WiFi, providing faster seamless connection in any workplaces

642fd66b123e6

Communication Modules

Built-in 2G/3G/4G and Bluetooth 5.0 communication modules, capable of multi-satellite running with GPS/Glonass/Beidou, providing accurate navigation and positioning

642fd66e6180e

Data Collection

2D barcode scan engine and NFC modules for options

643a55c4bfbb1

Rich interfaces

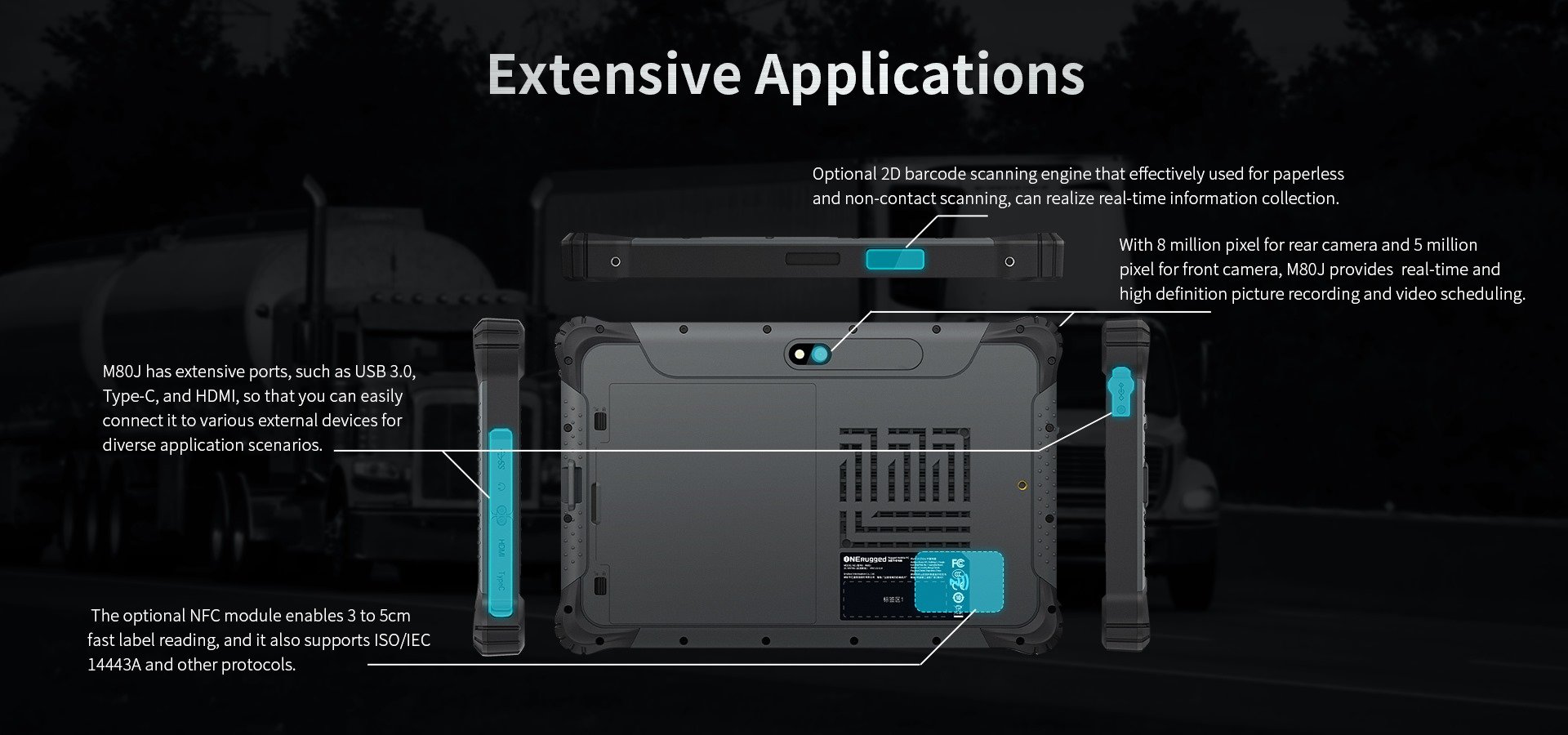

Extensive interfaces such as USB 3.0, Type-C and HDMI for diverse application scenarios

64901674628a0

Tough and Robust

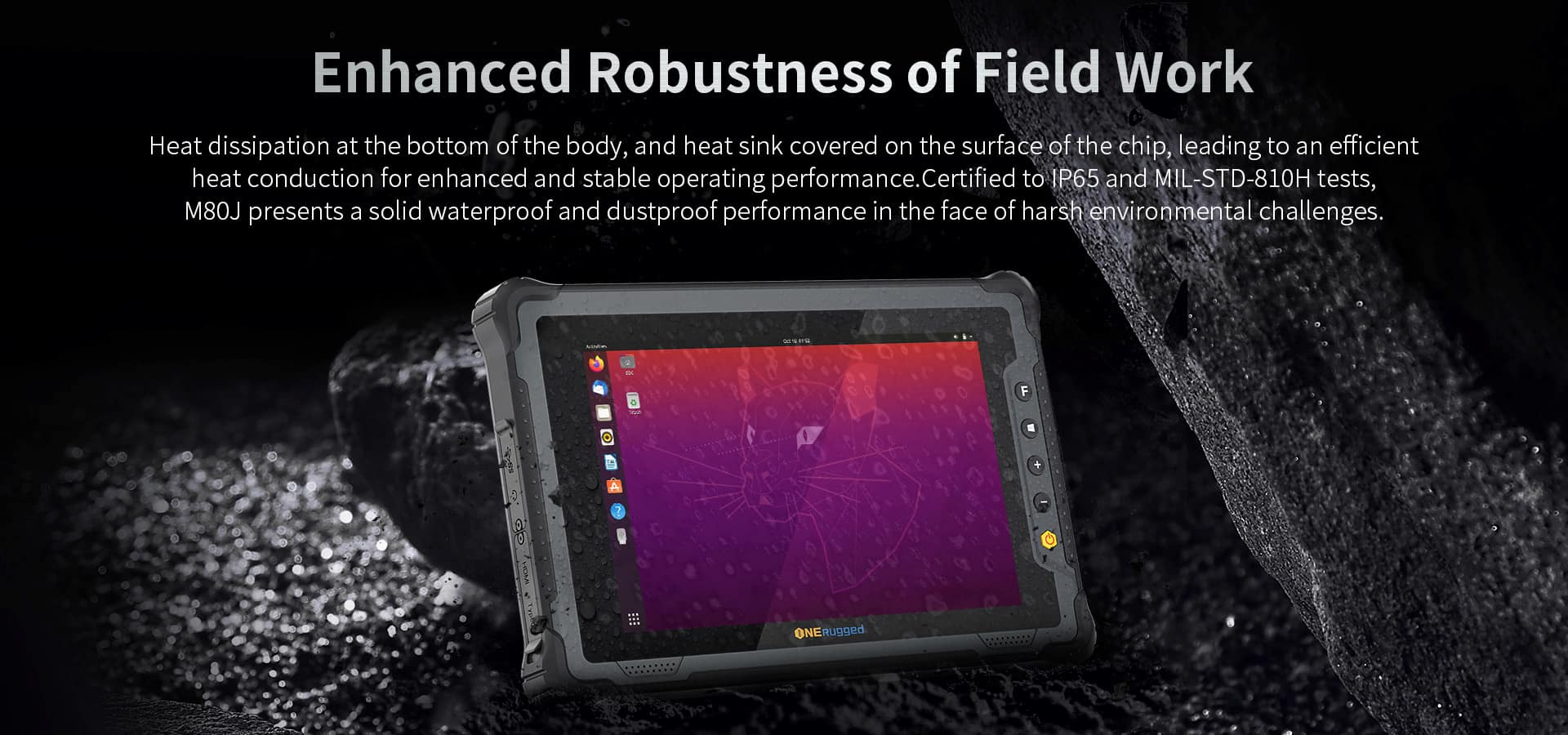

Passed the IP65 and MIL-STD-810H test, presenting solid waterproof and dustproof performance in the harsh environment

646ec4b964a6f
646ec4c574fc2
646ec4da7a5f1
646ec4e4ec4f1
646ec4f679e66
6539d80b239cc

Dimensions

236.7×155.7×20.8mm

Weight

818g

Product Color

Caesious (bottom and front shell)

Display

Size: 8 inch 16:10, Resolution: 800*1280, Brightness: 1000cd/㎡ or 700cd/㎡

Touch Panel

5 points capacitive screen, G+G, Panda glass hardness above 7H, scratch resistant

Ports

USB 3.0 *1

USB Type-C *1 (Data & Charing)

∮3.5mm Standard Earphone jack *1

HDMI Mini *1

SIM card slot *1, TF card slot *1

DC 19V3.42A *1

12Pin Pogo Pin *1

Processor

Intel® Celeron® Processor N5100

Operating System

Linux

Memory+Storage

RAM: 8GB (LPDDR4x)

ROM: 128GB (EMMC)

Camera

Front 500W

Rear 800W

Battery

Removable Li-polyment Battery, 7.6V/5000mAh

Power

Adapter (Input AC 100V-240V 50Hz/60Hz, output DC 19V/3.42A)

Data Collection (optional)

2D Code Scanner

WiFi

802.11 (a/b/g/n/ac), 2.4G+5G dual-band

WAN

2G/3G/4G

Bluetooth

Bluetooth 5.0

GNSS

GPS+GLONASS+ Beidou

NFC (optional)

Support

IP Ratings

IP65

Drop Resistance

1.22m drop

MIL-STD-810H

Temperature

Working temperature: -20 °C to 60 °C

Storage temperature: -30 °C to 70 °C

Standard

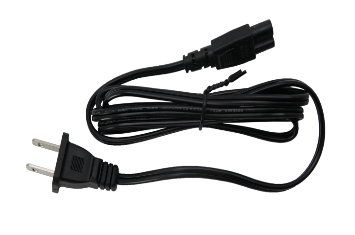

Adapter

Optional

Docking charger, Vehicle mount, Detachable battery, car charging
