Overview
Powerful and high-speed, with active pen

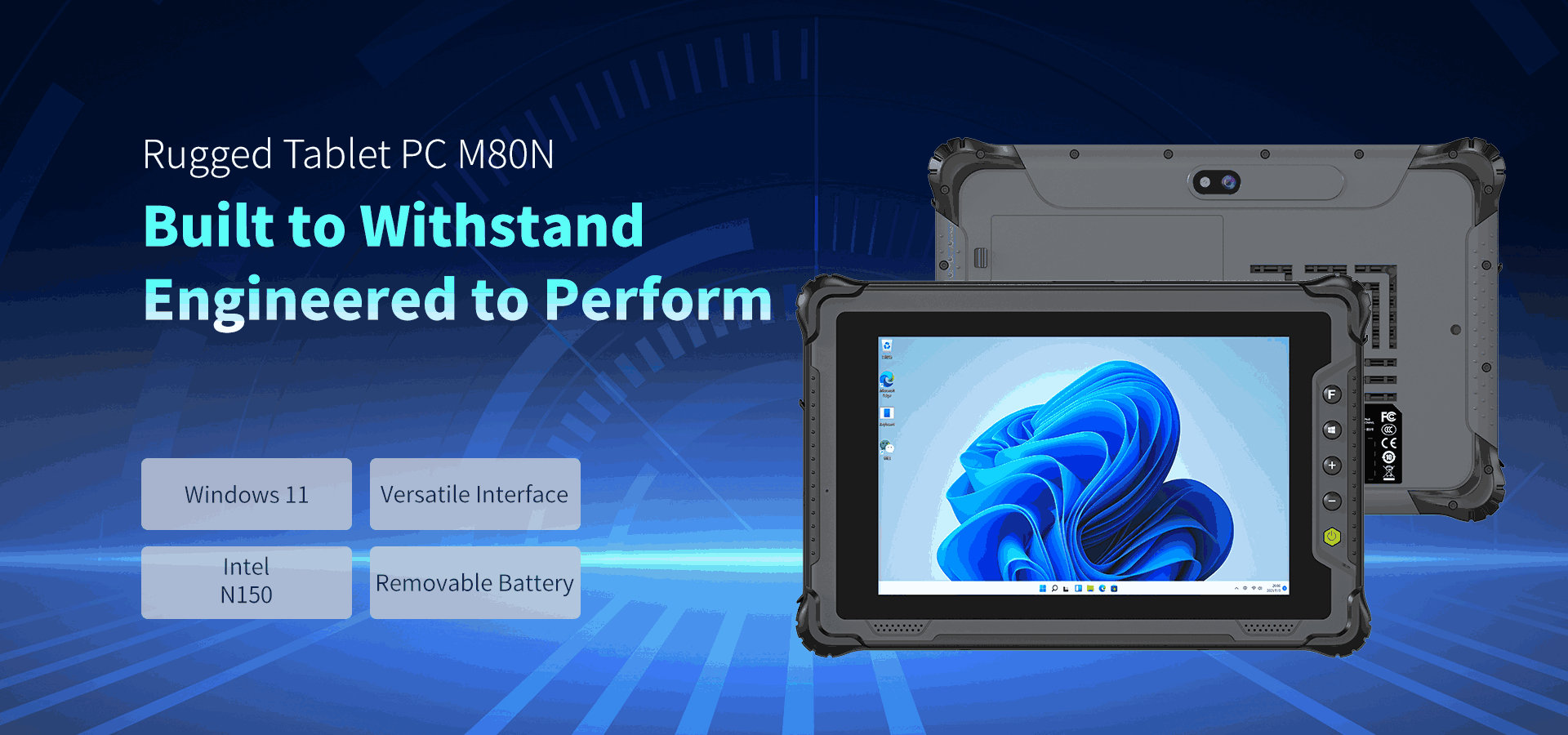

The ONErugged M80N is a cutting-edge rugged tablet PC designed to withstand the toughest conditions while delivering exceptional performance. Crafted by ONErugged, a brand known for durability, this device runs on Windows 11 and is powered by the Intel N150 processor, offering a versatile interface and a removable battery for unmatched flexibility. Unleash Robust Production Power Equipped with the latest Intel Twin Lake N150 processor, featuring Intel 7 process technology, a quad-core, quad-thread architecture, and turbo boost up to 3.6GHz, the ONErugged M80N ensures faster processing speeds and lower power consumption. With 8GB high-speed memory and 128GB of storage, it boosts operational efficiency, perfect for daily office tasks and multi-software operations.
Outstanding Performance
New generation Intel® N150 processor offering better performance in multitasking, with higher clock speeds and more cache
Productivity Display
8", FHD (1200*1920), 550 Nits high brightness, and a 5-point touch panel, providing excellent readability for both indoors and outdoors with active pen

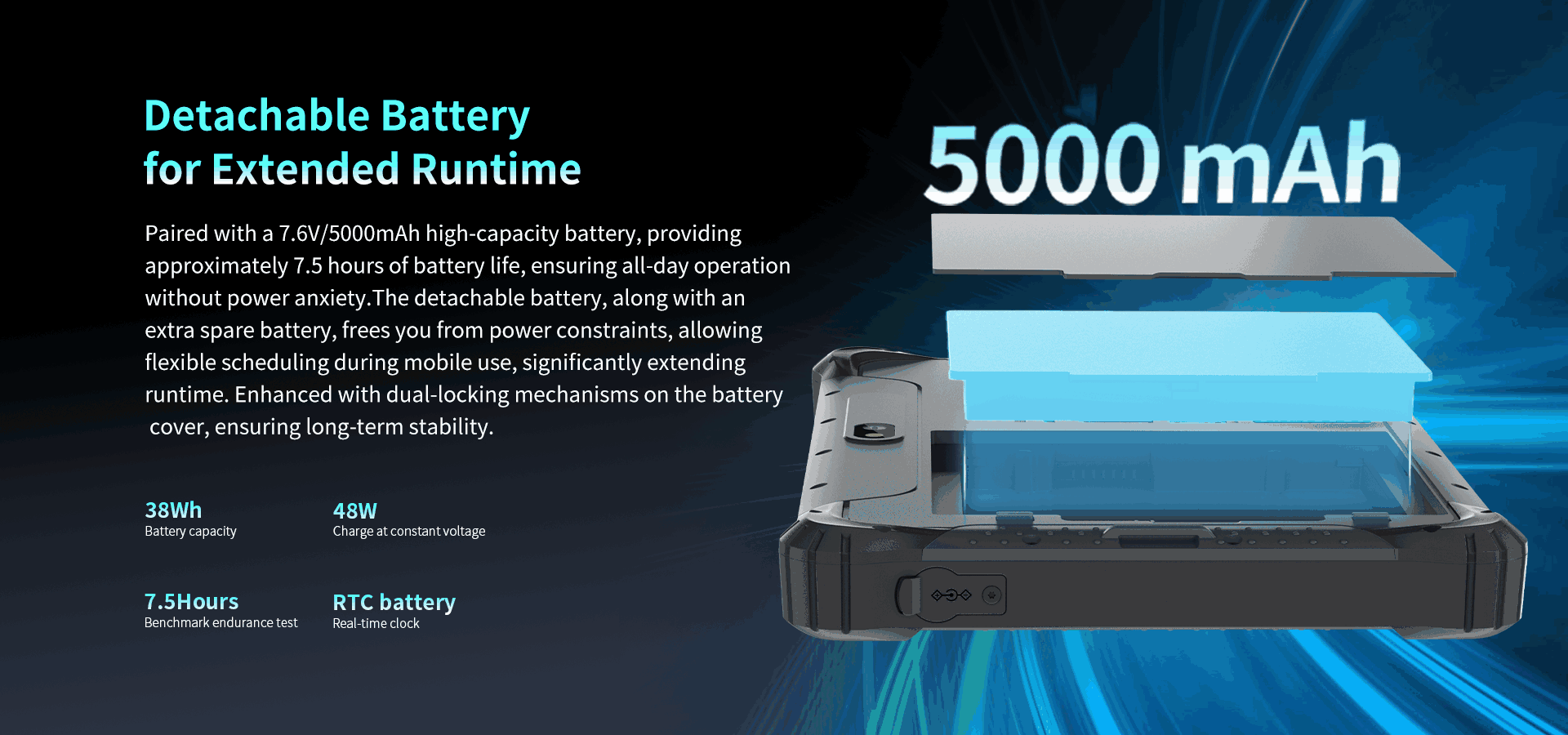

Long-lasting Stability
Equipped with a high-capacity 7.6V/5000mAh detachable battery, the M80N provides long-lasting stability and facilitates easy mobile work for multiple shifts.
Dual-band WiFi
Dual-band Wi-Fi 6, BT5.2
Communication Modules
Built-in 2G/3G/4G and Bluetooth 5.0 communication modules, capable of multi-satellite running with GPS/Glonass/Beidou, providing accurate navigation and positioning
Data Collection
2D barcode scan engine and NFC modules for options

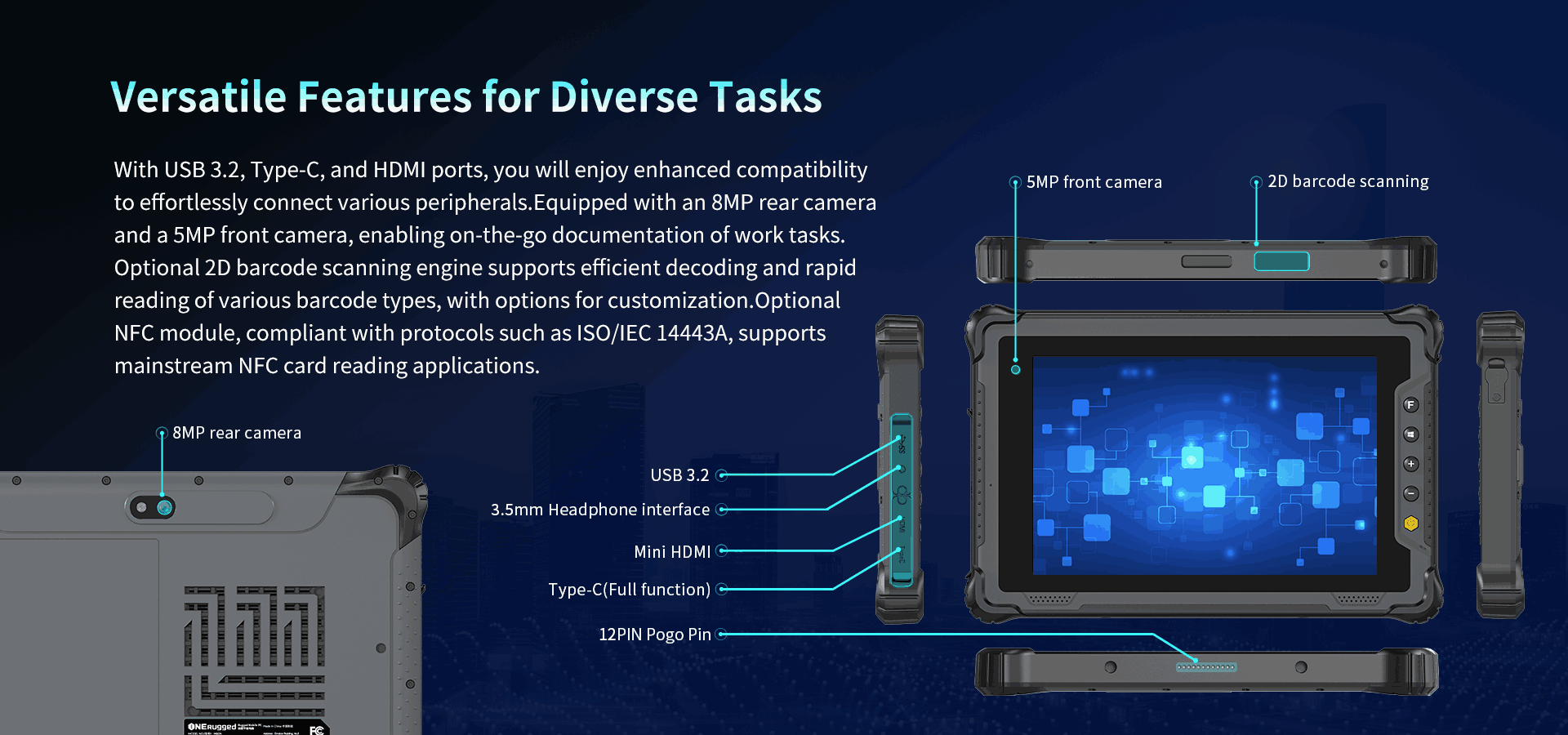

Rich interfaces
Extensive interfaces such as USB 3.0, Type-C and HDMI for diverse application scenarios
Tough and Robust
Passed the IP65 and MIL-STD-810H test, presenting solid waterproof and dustproof performance in the harsh environment
Dimensions
236.7*155.7*20.8mm
Weight
818g
Product Color
Gray
Display
Size: 8 inch 16:10, Resolution: 1200*1920), Brightness: 550 Nits
Touch Panel
10 point capacitive touch screen, support GP930 active pen
Ports
Micro SD card x 1
SIM card x 1
USB3.2 Gen1 (typeA) x 1
USB3.2 Gen1 (typeC) x 1
3.5mm AudioJack x 1
HDMI 2.0a mini x 1
DC5.5mm-In jack x 1
12Pin Pogo Pin *1
Processor
Intel N150
Operating System
Windows 11 Pro
Memory+Storage
8GB LPDDR5 on board · Optional 16GB LPDDR5
128GB EMMC · Optional 256GB EMMC
Camera
Front 5.0MP
Rear 8.0MP
Battery
Removable Li-polyment Battery, 7.6V/5000mAh
Power
AC adapter: 100-240V, 50Hz-60Hz, 48W
Data Collection (optional)
Optional 1D/2D barcode reader and NFC module
WiFi
Dual-band Wi-Fi 6, BT5.2 and optional 4G/5G
WAN
2G/3G/4G
Bluetooth
Bluetooth 5.2
GNSS
GPS
NFC (optional)
Support
IP Ratings
IP65
Drop Resistance
1.22m drop
MIL-STD-810H
Temperature
Working temperature: -20 °C to 60 °C
Storage temperature: -30 °C to 70 °C
Standard
Adapter
Hand Strap
Optional
Docking charger, Quad Charging Dock, Vehicle Mount, Battery
