Overview

Solid and Practical, Professional and Efficient

Solid and Practical, Professional and Efficient

M80T is a solid, practical, professional and efficient 8-inch cost-effective rugged mobile pc, adopting the ARM octa-core processor and Android 12 operating system, and equipped with high-definition and high-brightness screen, detachable large-capacity battery, 4G/dual-band WiFi/Bluetooth 5.2 communication, GPS+Glonass dual-mode positioning, front and rear cameras, 2D barcode scanning engine (optional), NFC module, rich interfaces, IP65 dustproof and waterproof, MIL-STD-810H, and many other configurations and functions, which can be applied to rich application scenarios such as industrial, transportation, energy, manufacturing, and public utilities.

642fd65ab82c4

Octa-core Processor

Equipped with the ARM octa-core processor and the Android 12 operating system

642fd65f12359

Excellent Readability

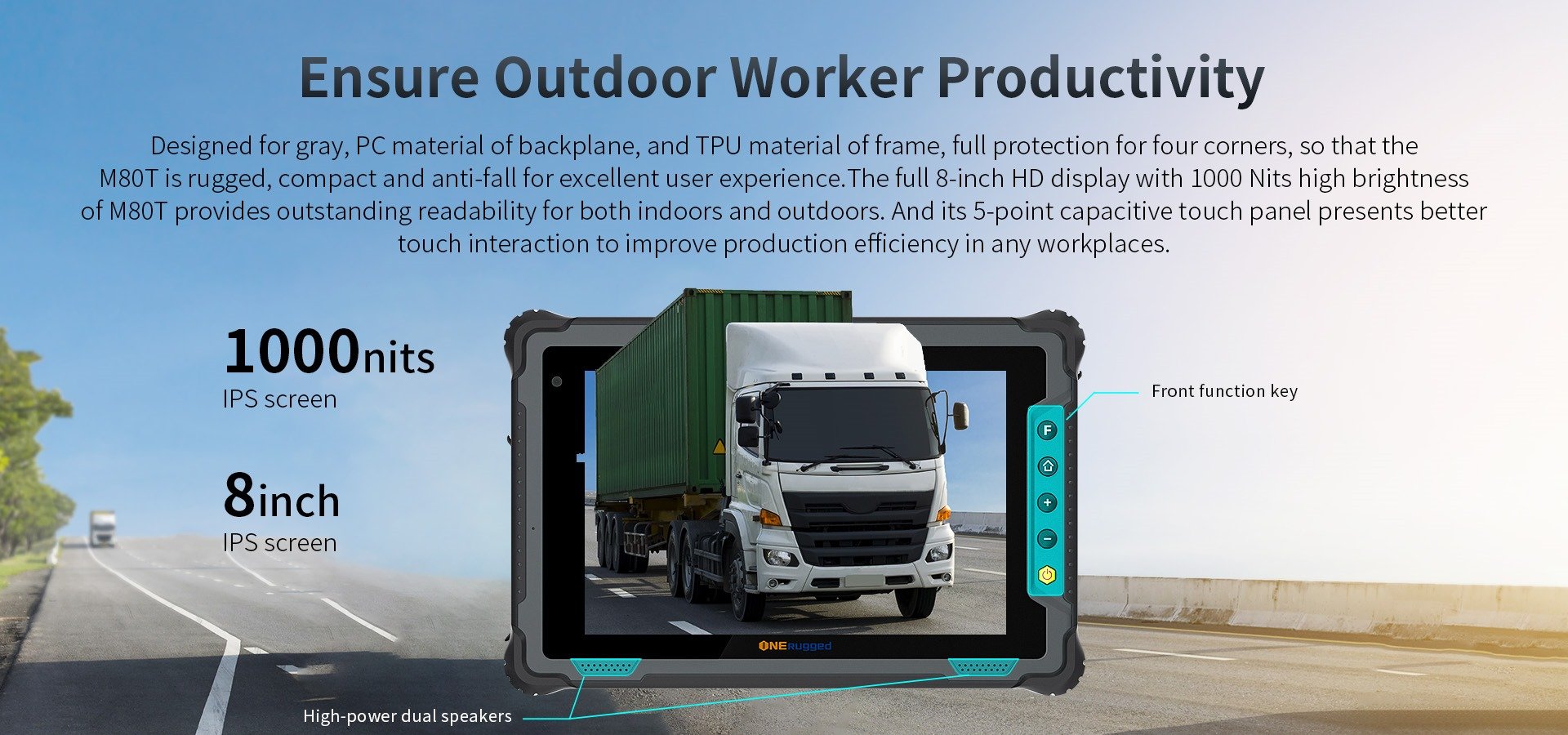

Full 8-inch HD display with 1000-Nits high brightness, and a 5-point capacitive touch panel

642fd662c2fe9

Long-lasting Stability

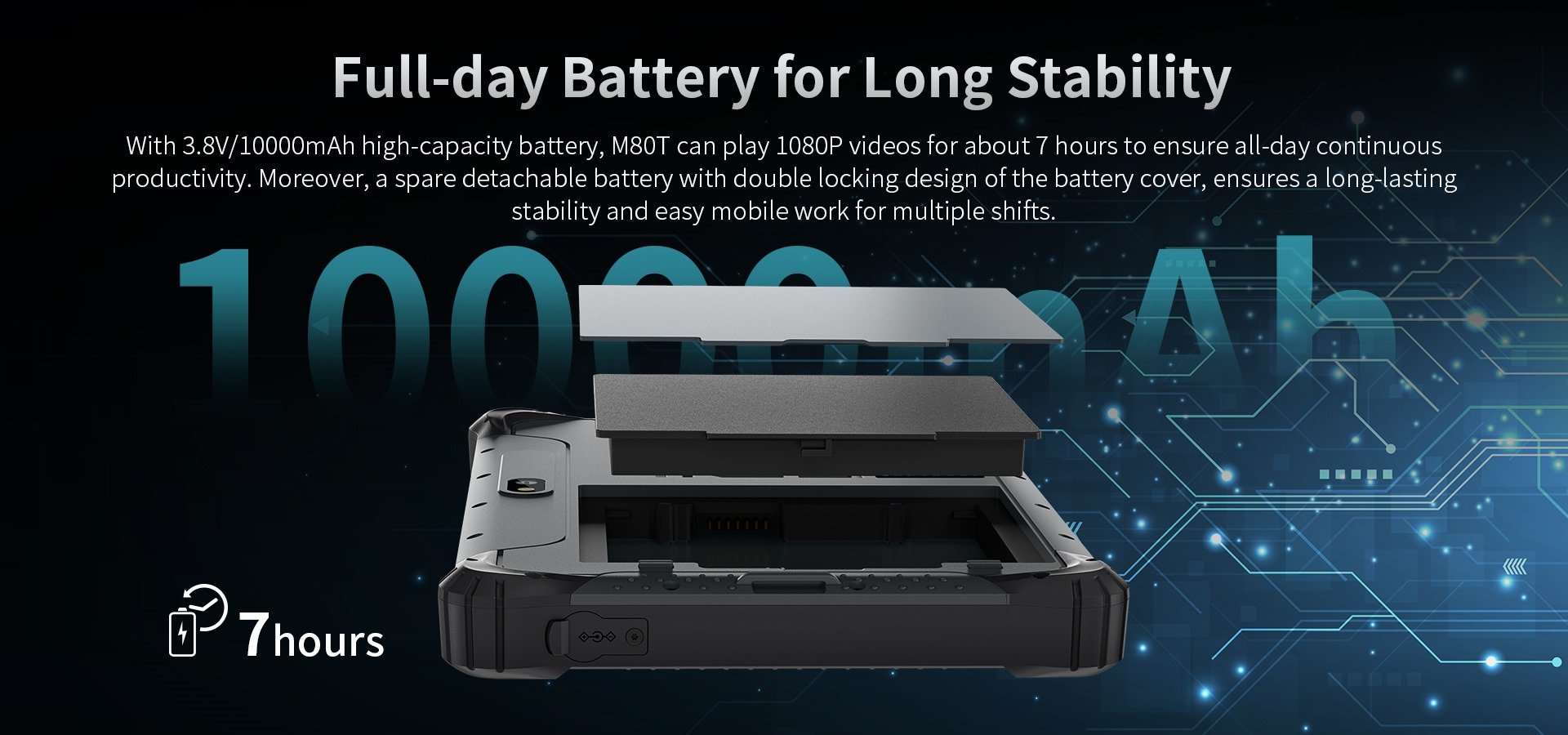

Couple with 3.8V/10000mAh high-capacity detachable battery

642fd66623735

Dual-band WiFi 6

Built-in 2.4GHz and 5.8GHz dual-band WiFi 6 mode, providing faster seamless connection

642fd66b123e6

Communication Modules

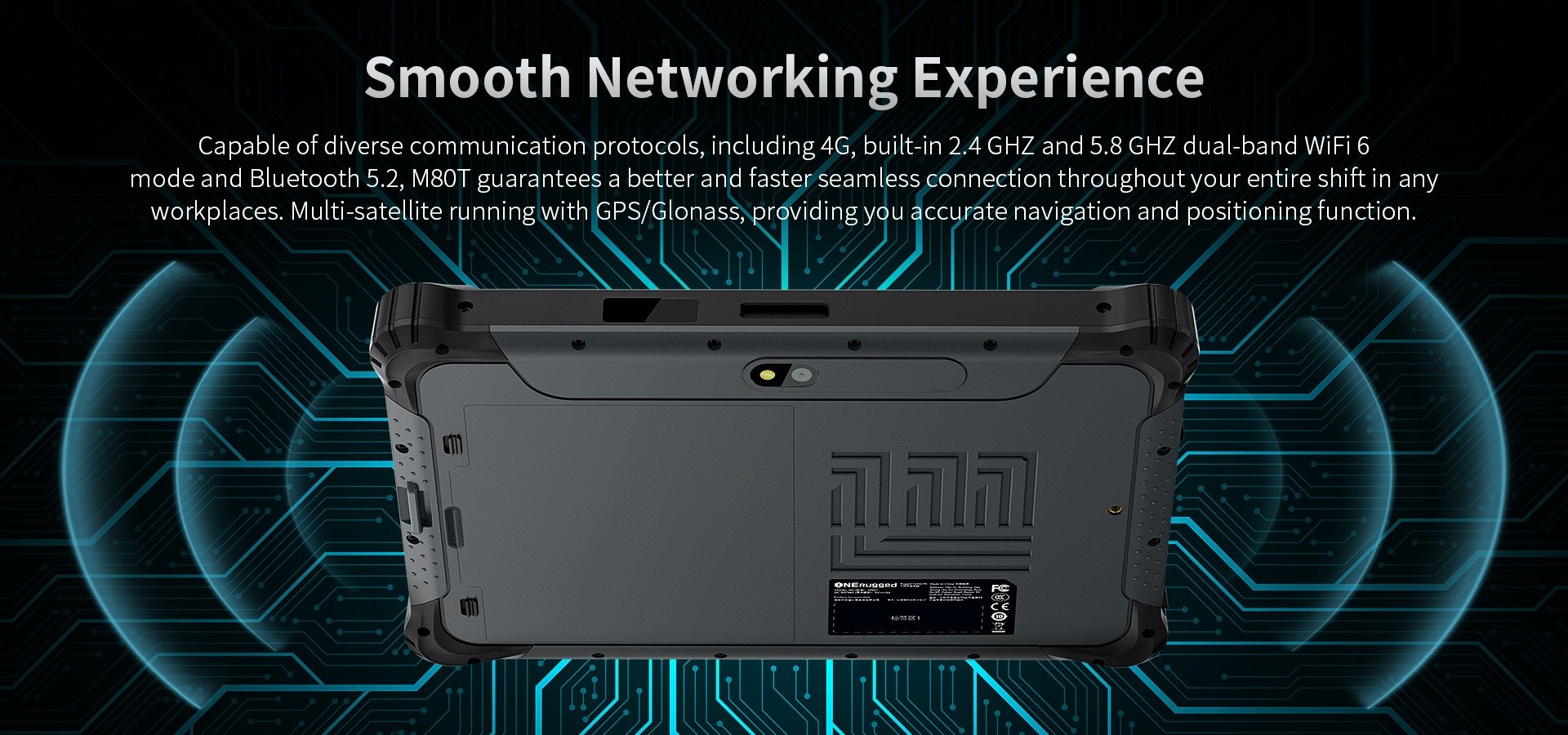

Built-in 4G and Bluetooth 5.2 communication modules, capable of multi-satellite running with GPS/Glonass

642fd66e6180e

Data Collection

2D barcode scan engines and NFC modules for options

643a55c4bfbb1

Rich interfaces

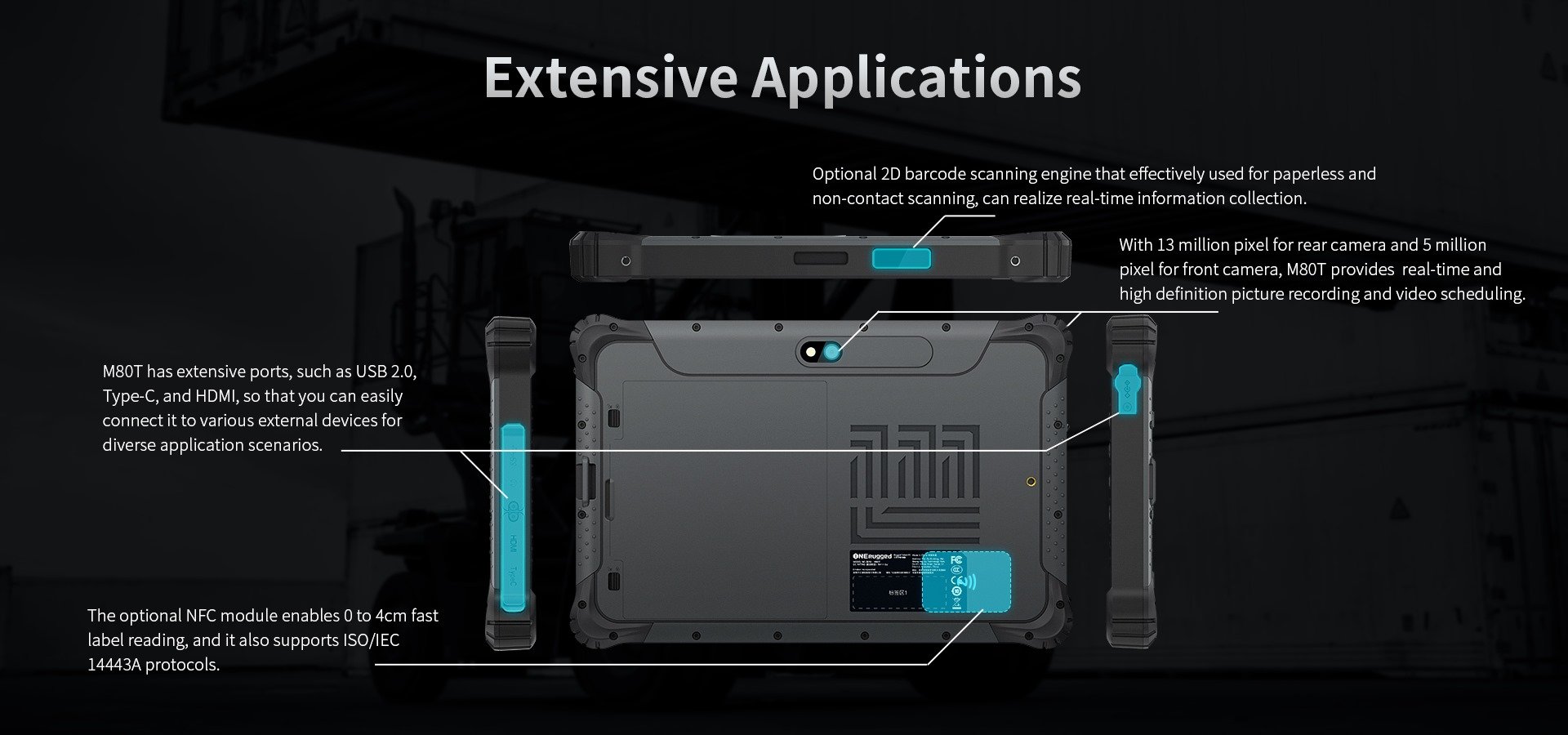

Extensive interfaces such as USB 2.0, Type-C and HDMI for diverse application scenarios

64901674628a0

Tough and Robust

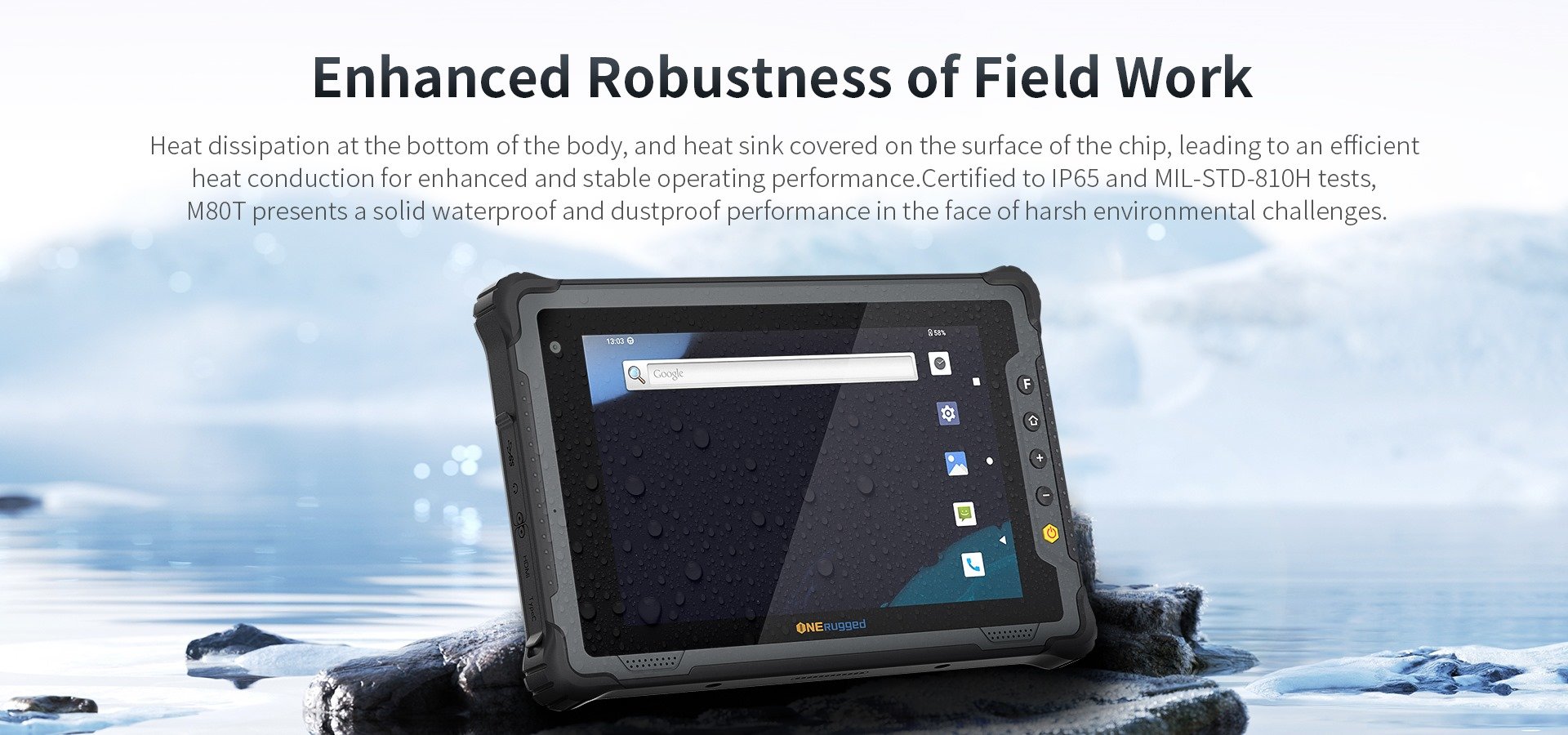

Certified to IP65 and MIL-STD-810H tests, presenting solid waterproof and dustproof performance in the harsh environment

646eb847f2c06
646eda39604c8
646eda48cf2d9
646eda6d34472
646edab690cd7
646eb88c8279c

Dimensions

236.7×155.7×20.8mm

Weight

820g

Product Color

Blue-gray

Display

Size: 8 inch 16:10, Resolution: 800*1280, Brightness: 1000cd/㎡ or 700cd/㎡

Touch Panel

5 points tempered glass Capacitive screen, G+G, hardness 7H

Ports

USB 2.0 *1

USB Type-C *1 (Data & Charing)

∮3.5mm Standard Earphone jack *1

HDMI Mini *1

SD card slot *1, Nano card slot *2 (2 out of 3)

DC 5V3A *1

12Pin Pogo Pin *1

Processor

ARM Octa-Core Processor

Operating System

Android 12

Memory+Storage

RAM: 8GB (LPDDR4x)

ROM: 128GB (EMMC)

Camera

Front 500W

Rear 1300W, support autofocus, with flashlight

Battery

Removable Lithium-ion polymer battery, 3.8V/10000mAh

RTC Battery

Built-in RTC battery

Power

18W fast charge adapter (Input AC 100V~240V 50Hz/60Hz, output DC 5V/3A 9V/2A 12V/1.5A)

Data Collection (optional)

2D code scanner

WiFi

802.11 (a/b/g/n/ac/ax), 2.4G+5.8G dual-frequency

WAN

2G/3G/4G

Bluetooth

Bluetooth 5.2

GNSS

GPS+GLONASS

NFC

Support

IP Ratings

IP65

Drop Resistance

1.22m drop

MIL-STD-810H

Temperature

Working temperature: -20 °C to 60 °C

Storage temperature: -30 °C to 70 °C

Standard

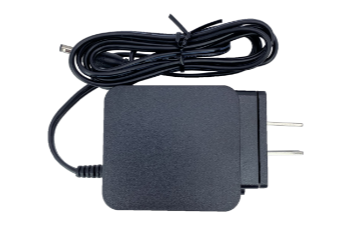

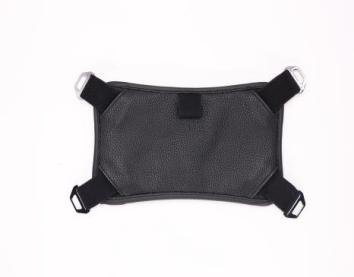

Hand-strap, Adapter

Optional

Docking Charger, Vehicle Mount
