Overview
Flexible to use and powerful in functionality

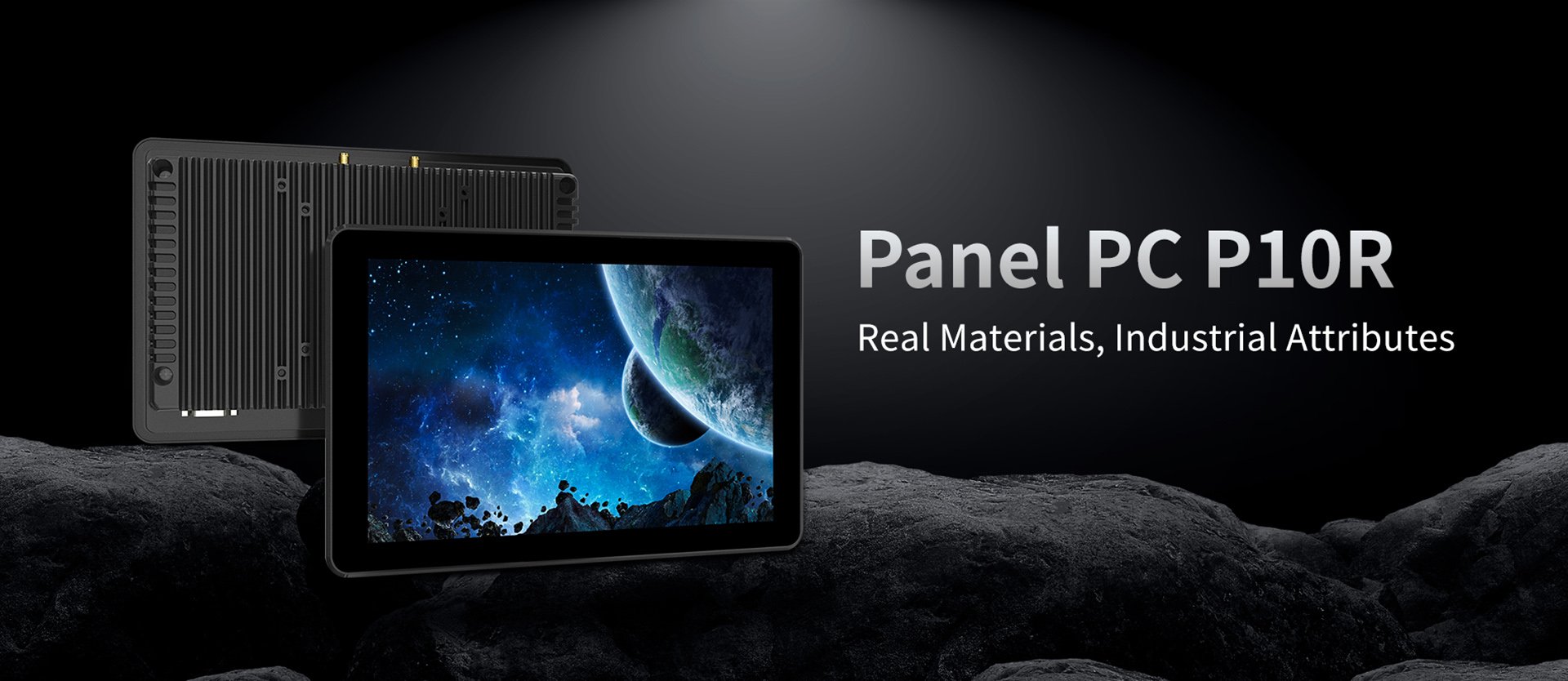

P10R is a 10.1-inch flat panel pc, equipped with ARM-based Rockchip processor and Android 11 operating system, which offers a powerful, cost-effective, stable and easy to use solution to industrial requirements. And with HMI, fully enclosed design, fanless cooling system, rich I/O interfaces, international Wi-Fi, various installation methods, it can reach the industrial-level performance and quality standards, and can be applied in a wide range of industrial scenarios, like industrial production workshops, industrial automation equipment, and monitoring systems.

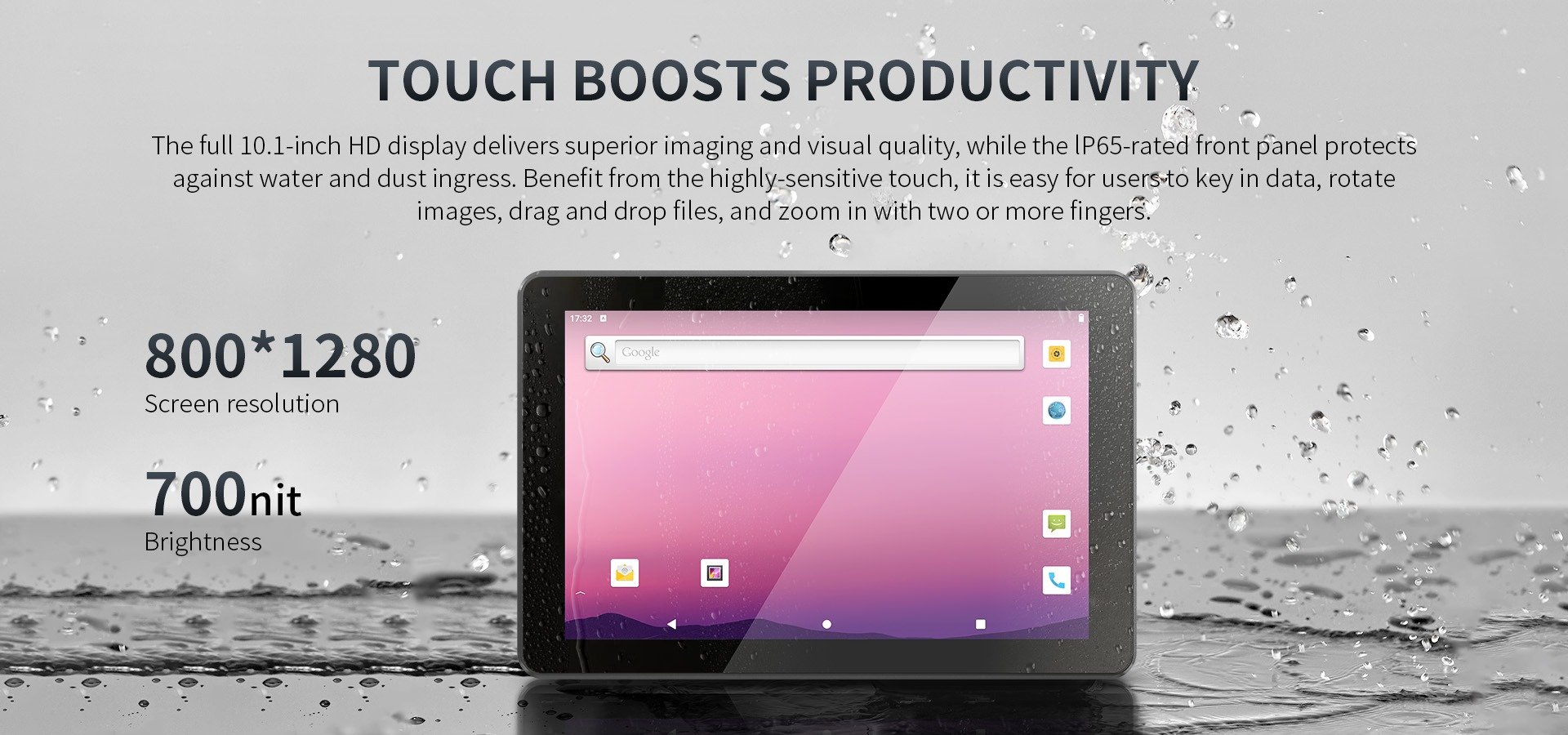

Full Flat Panel
Full 10.1-inch HD display, the IP65-rated front panel protects against water and dust ingress
Excellent Performance
Equipped with 4-core ARM architecture A55 processor and Android 11 operating system
Industrial Motherboard
Excellent environmental adaptability, anti-electromagnetic interference and anti-static capabilities

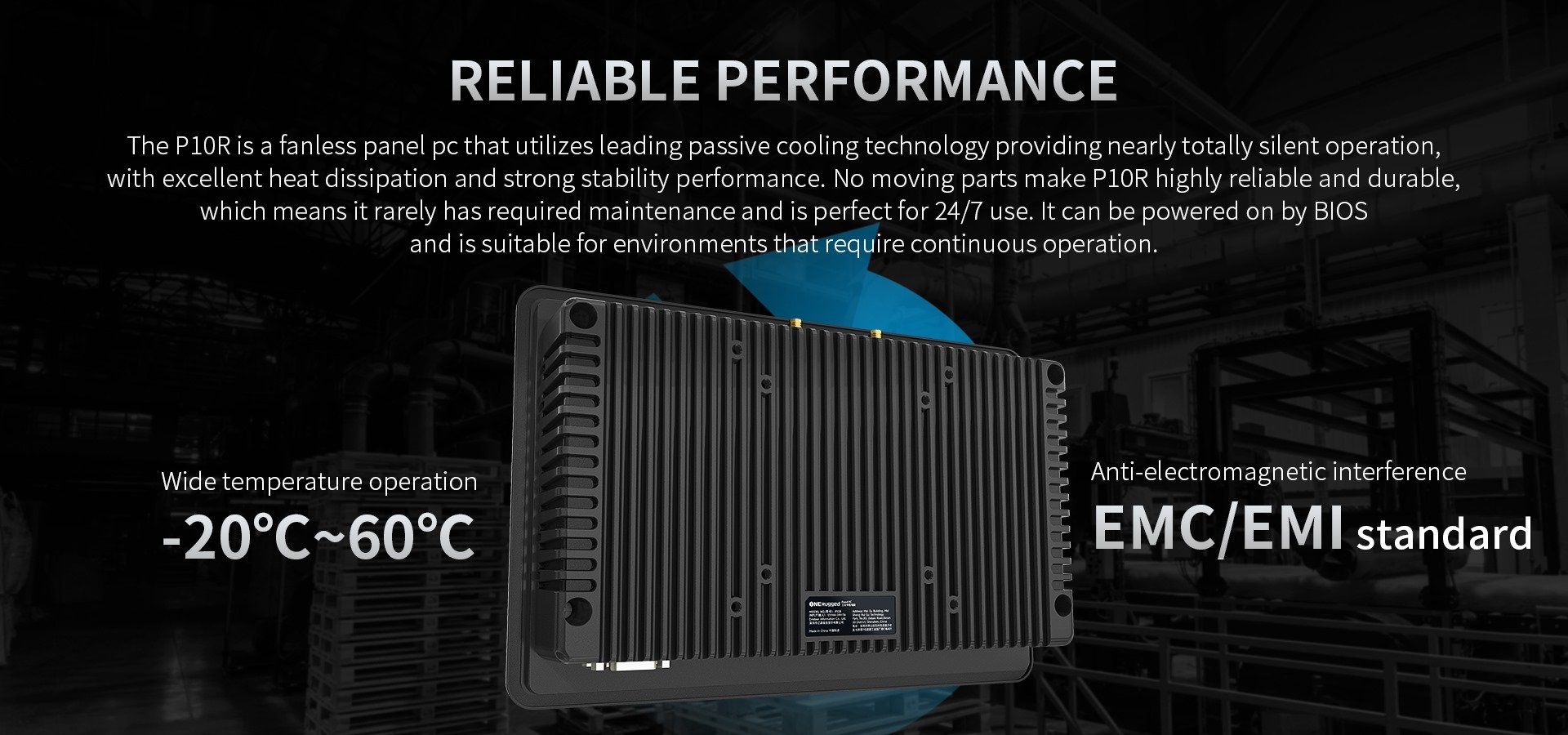

7×24 Operation
Fanless design, using large-area uniform heating fin, running 24/7 without affecting reliability and service life
Rich I/O Interfaces
Rich interfaces, including multiple USB/LAN/HDMI and other I/O ports easily meet various scenario requirements
Expansion Modules
MiniPCIE slot, can be expanded with communication modules, solid-state drives and other peripherals
Wide Temperature and Voltage Range
Wide voltage and temperature design, can operate normally even under external voltage fluctuations or in extremely hot or cold conditions

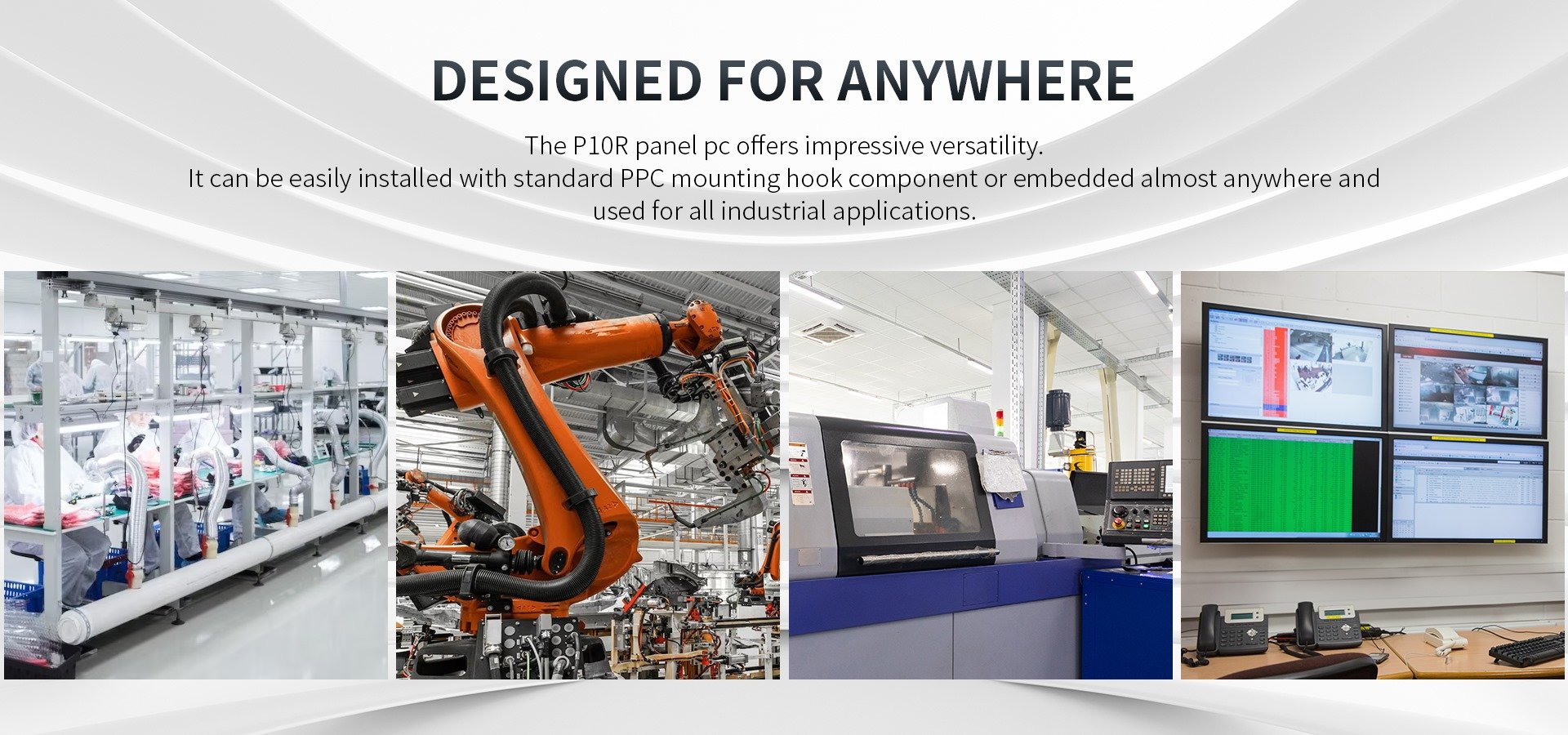

Easy to Install
Standard PPC mounting hook component, easy to install and supports various installation methods such as embedded and wall-mounted
Tech Specs
(*Please be aware all technical data, specification and performance figures subject to change without notice.)
Dimensions
257.2×170×45.95mm
Weight
1.2kg
Product Color
Black
Display
Size: 10.1 inch, resolution: 800×1280, brightness: 700cd/㎡
Touch Panel
10 PCAP, G+G
Ports
SIM card *1
USB 3.0 *2, USB 2.0 *2
DC 12V4A *1
∮3.5mm Standard Earphone jack *1
RJ45 *2 (10/100/1000M adaptive)
HDMI *1
Optional: Extensive Slot SATA
Optional: Phoenix Terminal (External charging)
Optional: TPM (Hardware reservation)
Processor
ARM Quad-Core Processor
Operating System
Android 11
Memory+Storage
RAM: 8GB
ROM: 128GB (M.2 interface)
Power
Adapter (Input AC 100V-240V 50Hz/60Hz, output DC 12V/4A)

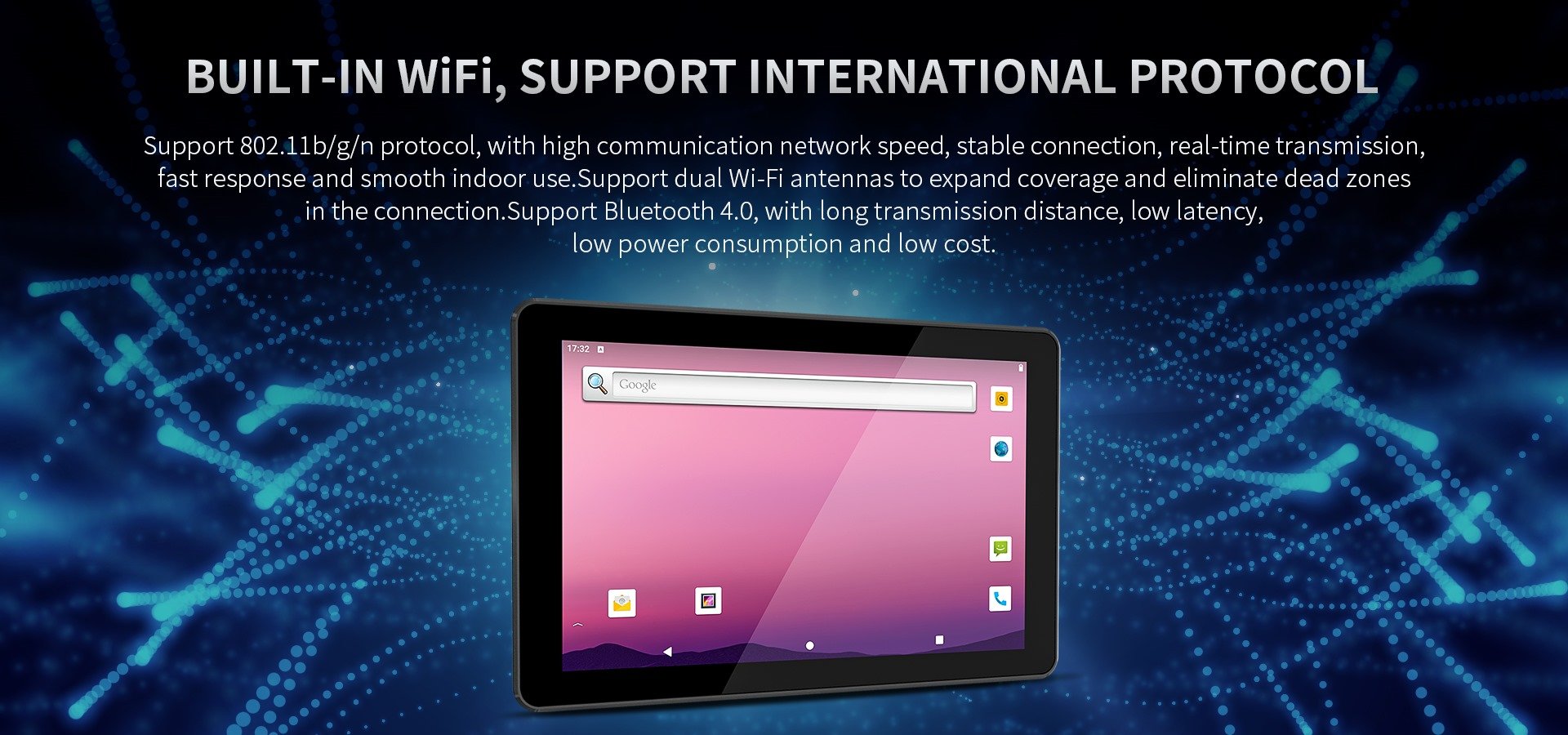

WiFi
802.11 (a/b/g/n/ac), 2.4G+5.8G dual-frequency
Standard WiFi antenna
WAN (optional)
2G/3G/4G
Bluetooth
Bluetooth 4.2
Temperature
Working temperature: -20 °C to 60 °C
Storage temperature: -30 °C to 70 °C
ESD Protection
±15kV air discharge
±8kV contact discharge
Standard
Adapter, PPC hook assembly, WiFi antenna
