Overview

Flexible to use and powerful in functionality

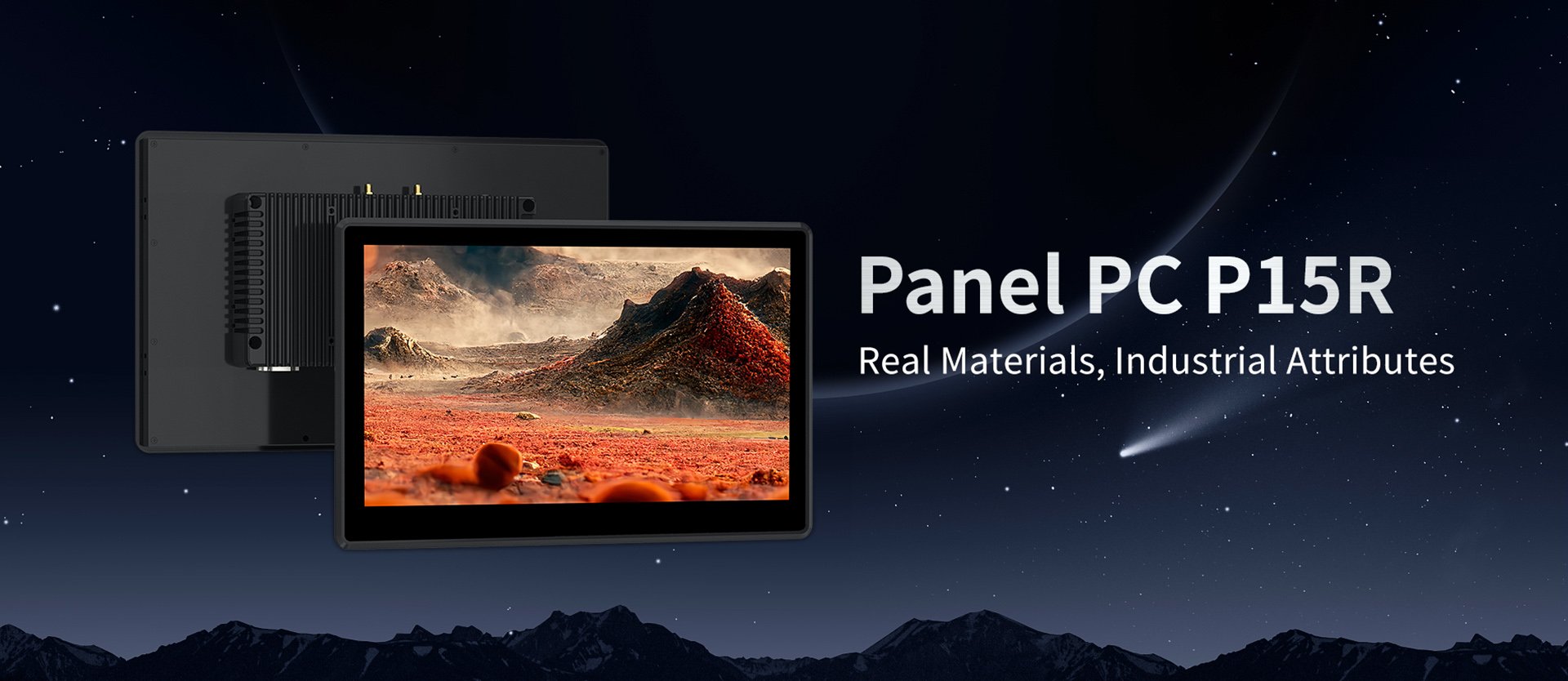

P15R is a 15.6-inch flat panel pc, equipped with ARM-based Rockchip processor and Android 11 operating system, which offers a powerful, cost-effective, stable and easy to use solution to industrial requirements. And with HMI, fully enclosed design, fanless cooling system, rich I/O interfaces, international Wi-Fi, various installation methods, it can reach the industrial-level performance and quality standards, and can be applied in a wide range of industrial scenarios, like industrial production workshops, industrial automation equipment, and monitoring systems.

642fd65ab82c4

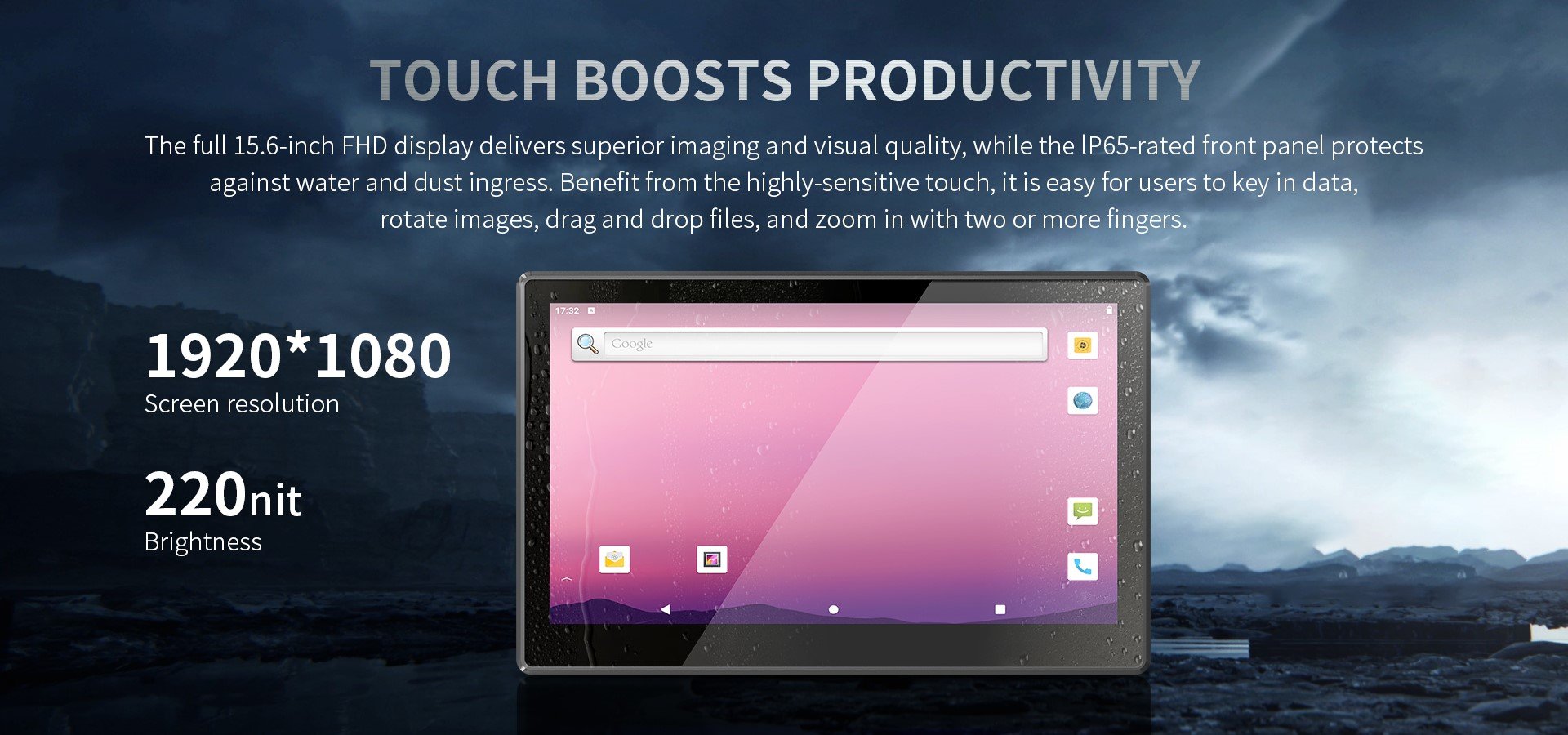

Full Flat Panel

Full 15.6-inch FHD display, the IP65-rated front panel protects against water and dust ingress

642fd65f12359

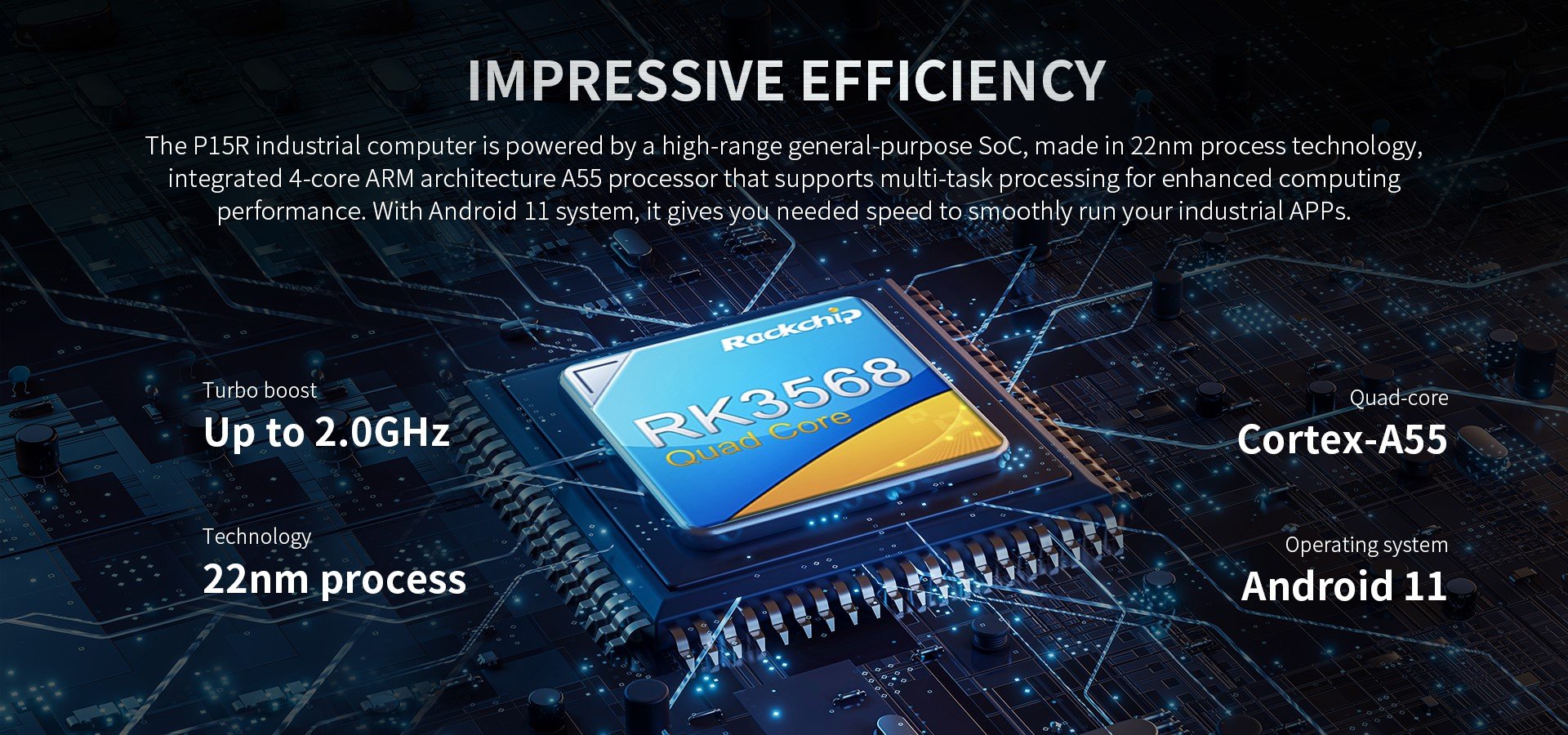

Excellent Performance

Equipped with 4-core ARM architecture A55 processor and Android 11 operating system

642fd662c2fe9

Industrial Motherboard

Excellent environmental adaptability, anti-electromagnetic interference and anti-static capabilities

642fd66623735

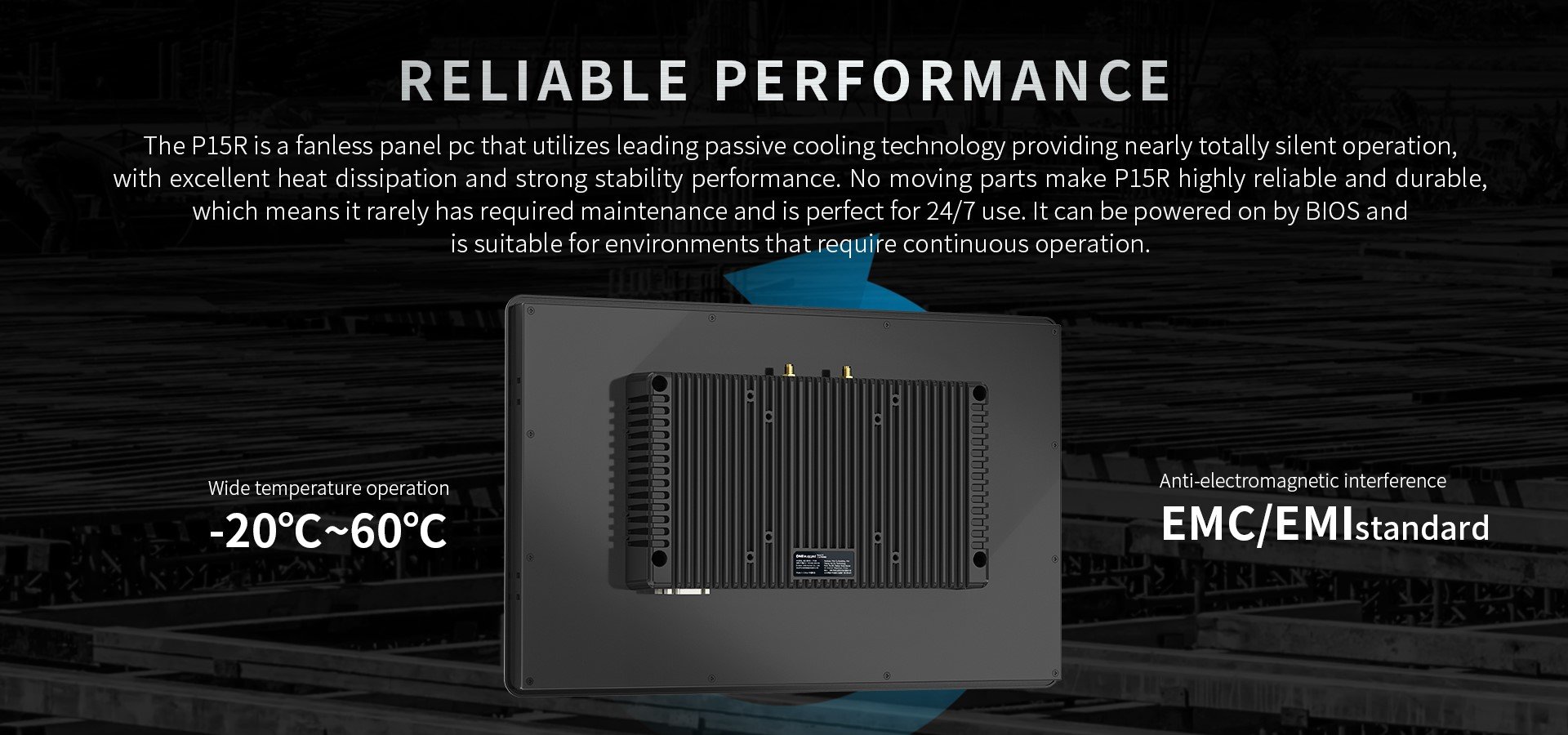

7×24 Operation

Fanless design, using large-area uniform heating fin, running 24/7 without affecting reliability and service life

642fd66b123e6

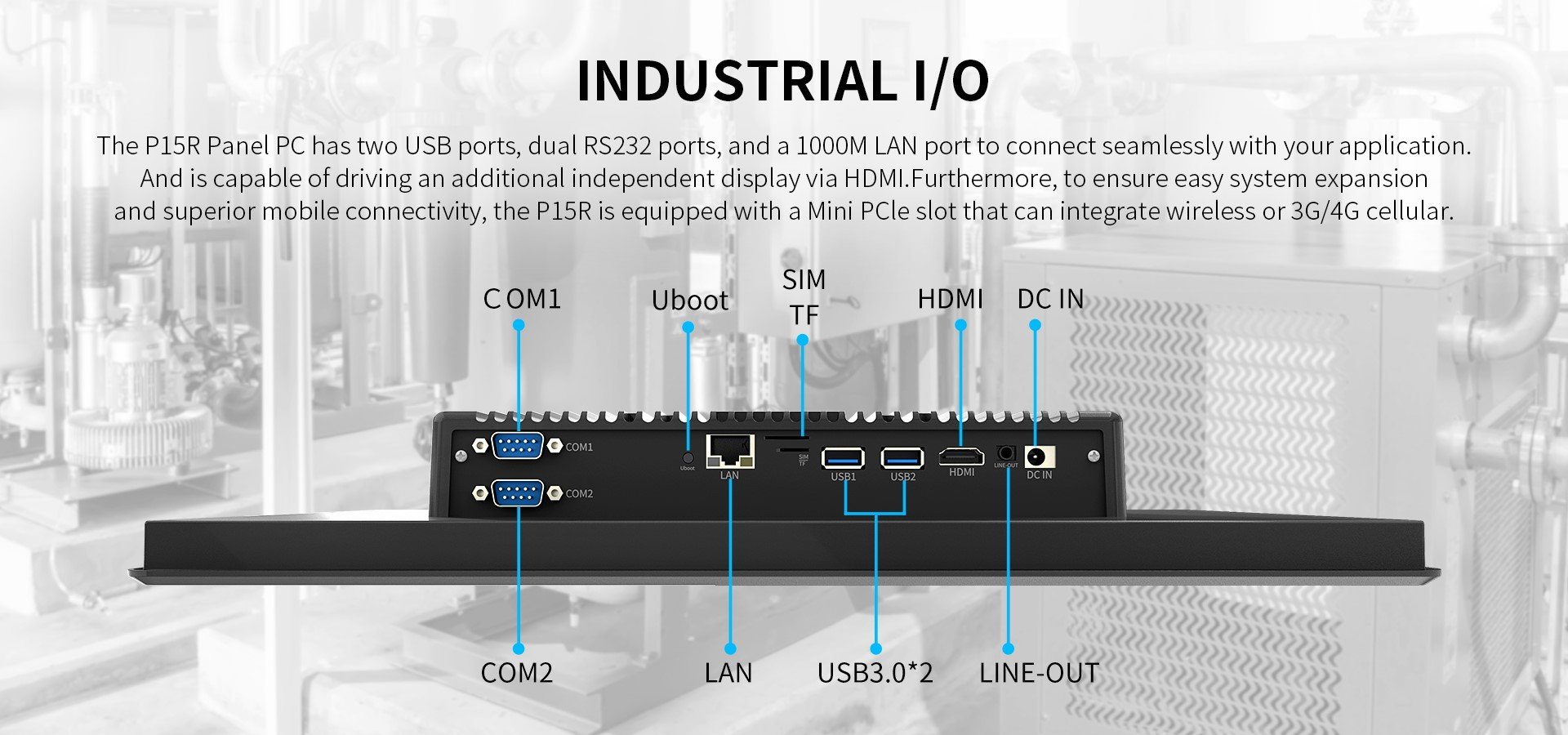

Rich I/O Interfaces

Rich interfaces, including multiple USB/LAN/HDMI and other I/O ports easily meet various scenario requirements

642fd66e6180e

Expansion Modules

MiniPCIE slot, can be expanded with communication modules, solid-state drives and other peripherals

643a55c4bfbb1

Wide Temperature and Voltage Range

Wide voltage and temperature design, can operate normally even under external voltage fluctuations or in extremely hot or cold conditions

64901674628a0

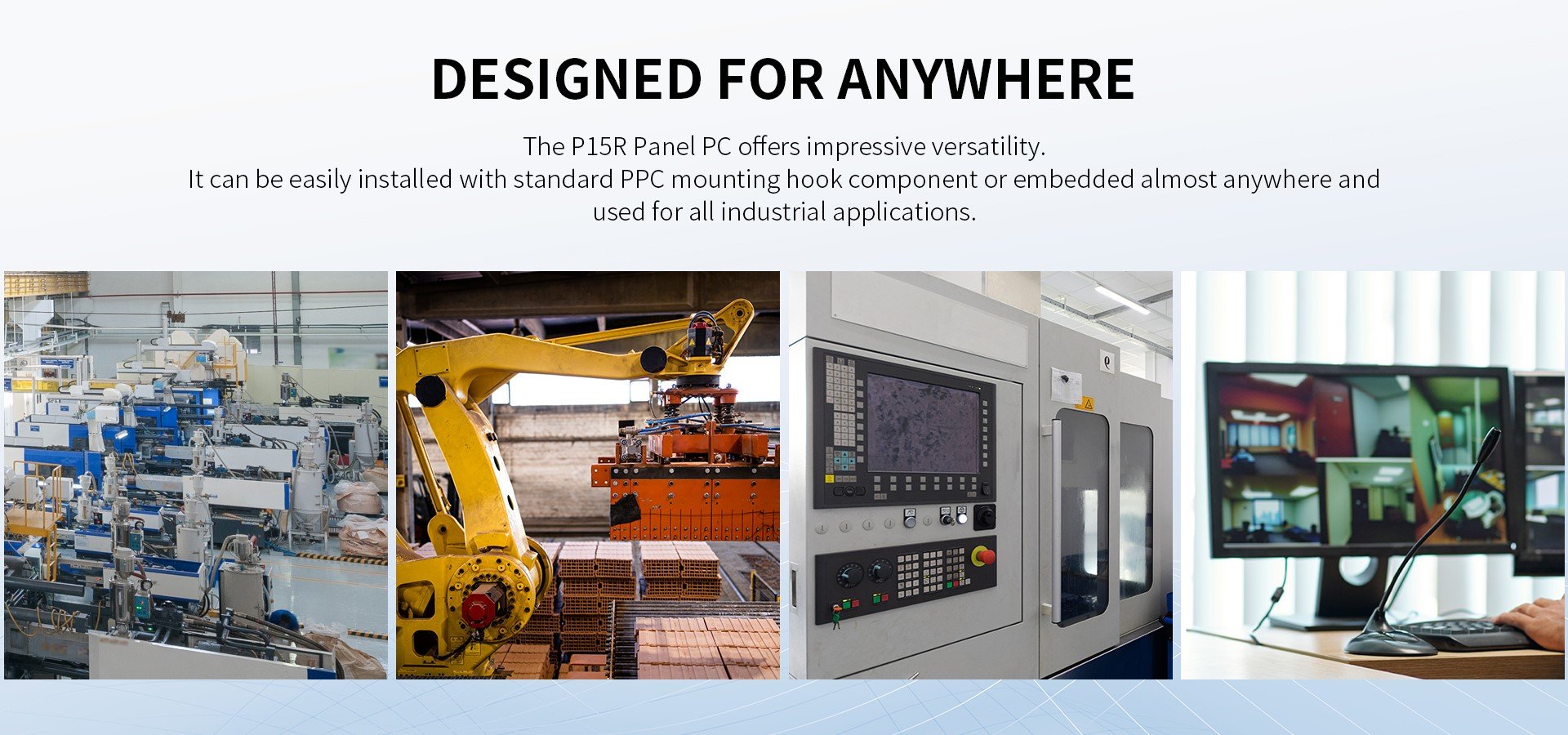

Easy to Install

Standard PPC mounting hook component, easy to install and supports various installation methods such as embedded and wall-mounted

646dc1518d246
646dc15b90ef5
646dc1656033e
646dc16fc7347
646dc17a041e4
646dc1844488b

Tech Specs

(*Please be aware all technical data, specification and performance figures subject to change without notice.)

Dimensions

388.63×248.43×54.95mm

Weight

2.4kg

Product Color

Black

Display

Size: 15.6 inch, resolution: 1920x1080, brightness: 220cd/㎡

Touch Panel

10 PCAP

Ports

SIM *1, TF *1

USB 3.0 *1, USB 3.0 *1 OTG

DC 12V4A *1

∮3.5mm Standard Earphone jack *1

RJ45 *1 (10/100/1000M adaptive)

DB9 RS232 *2

HDMI *1

MiniPCIE *1

Processor

ARM Quad-Core Processor

Operating System

Android 11

Memory+Storage

RAM: 8GB

ROM: 128GB (M.2 interface)

Power

Adapter (Input AC 100V-240V 50Hz/60Hz, output DC 12V/4A)

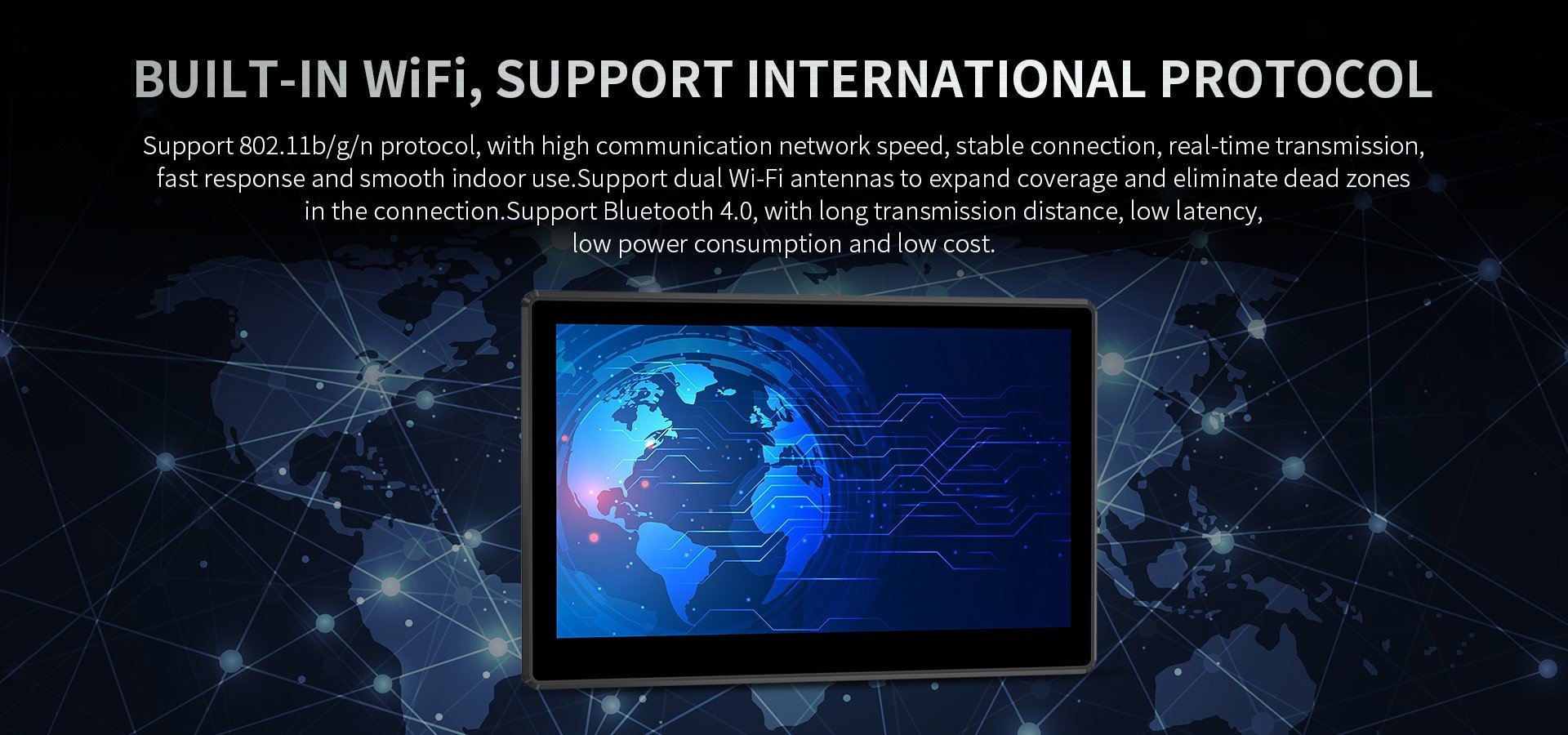

WiFi

802.11 (a/b/g/n/ac), 2.4G+5.8G dual-frequency

Standard WiFi antenna

WAN (optional)

2G/3G/4G

Bluetooth

Bluetooth 4.2

Temperature

Working temperature: -20 °C to 60 °C

Storage temperature: -30 °C to 70 °C

ESD Protection

±15kV air discharge

±8kV contact discharge



Standard

Adapter, PPC hook assembly, WiFi antenna
